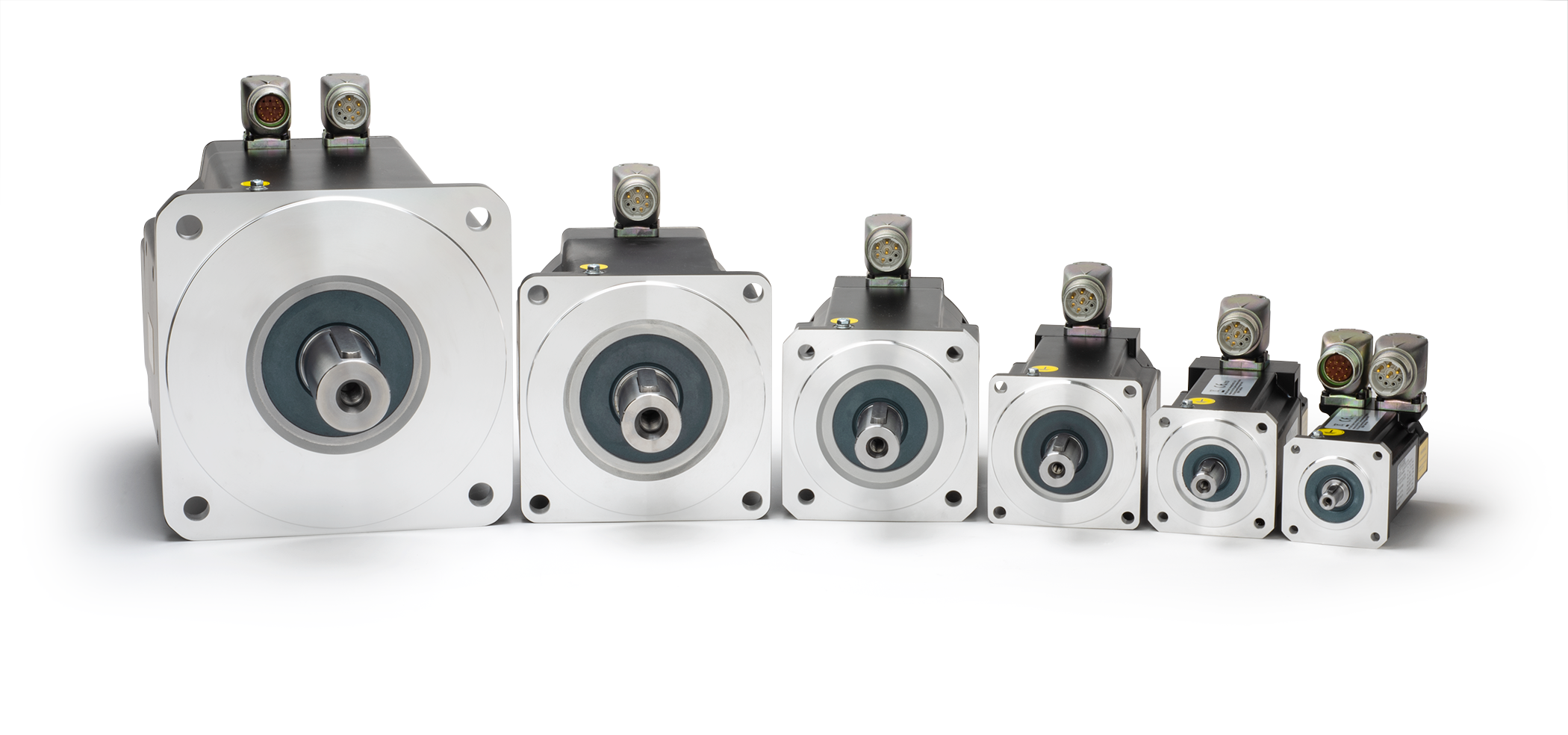

This page provides basic and support information for the AKME series of ATEX explosion-proof servo motors. AKME servo motors are built on the proven performance of the AKM servo motor platform, with additional design features to achieve ATEX and IECEx certification for operation in gas Zone 2 and dust Zone 22 hazardous locations.

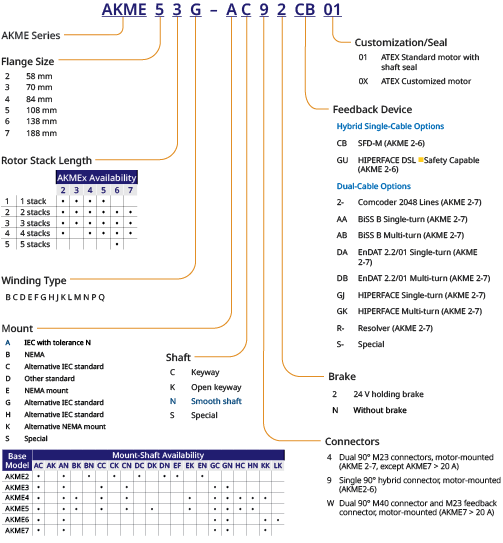

Part Number Scheme
The AKME part number scheme is for product identification only as not all combinations of features are possible.
Feedback
AKME servo motors are available with multiple feedback encoder options.
Feedback Unit Options and Resolution
| Code | Designation | AKME Frame Size | Single-Turn or Multi-Turn | Device Resolution (Sin/Cos per Rev., Bits or Lines/Rev.) | AKD Internal Resolution | AKD2G Internal Resolution | # of Absolute Revs. | Accuracy (± arc-mins) |
|---|---|---|---|---|---|---|---|---|
| 2- | Commutating Encoder | 2-7 | Single-turn | 2048 Lines | 8,192 | 8,192 | None | 1 |
| AA | Biss B Optical Sine Encoder | 2-7 | Single-turn | 2048 Sin/Cos | 27-Bits | 32-Bits | 1 | 0.6 |
| AB | 2-7 | Multi-turn | 4,096 | |||||
| CB | SFD-M Smart Feedback Device, Multi-Turn | 2-6 | Multi-turn | 24-Bits | 24-Bits | 24-Bits | 65,536 | 1 |
| GU* | HIPERFACE DSL® Optical Encoder | 2-6 | Multi-turn | 17-Bits | 18-Bits | 18-Bits | 4,096 | 4 |
| GJ | HIPERFACE Optical Sin/Cos Encoder | 2-7 | Single-turn | 128 Sin/Cos | 23-Bits | 31-Bits | 1 | 1.33 |
| GK | 2-7 | Multi-turn | 4,096 | |||||
| DA | EnDat® 2.2/01 Optical Sine Encoder | 2-4 | Single-turn | 512 Sin/Cos | 25-Bits | 32-Bits | 1 | 1 |
| 5-7 | 2048 Sin/Cos | 27-Bits | 0.333 | |||||
| DB | 2-4 | Multi-turn | 512 Sin/Cos | 25-Bits | 4,096 | 1 | ||
| 5-7 | 2048 Sin/Cos | 27-Bits | 0.333 | |||||
| R- | Resolver Inductive Encoder | 2-4 | Single-turn | 1 pole pair (16-Bits) | 16-Bits | 16-Bits | 1 | 10 |
| 5-7 | 9 |
* SICK HIPERFACE DSL® model EEM37-2KF0A017A. Please visit https://www.sick.com to download the latest safety data sheet.
Feedback and Connector Availability
| AKME2 | AKME3-6 | AKME7 | |||||
|---|---|---|---|---|---|---|---|
| Connector Code | 4 | 9 | 4 | 9 | 4 | W* | |
F C | R- | ✔ | ✔ | ✔ | ✔ | ||
| 2- | ✔ | ✔ | ✔ | ✔ | |||
| AA, AB | ✔ | ✔ | ✔ | ✔ | |||
| CB | ✔ | ✔ | ✔ | ||||
| DA, DB | ✔ | ✔ | ✔ | ✔ | |||
| GJ, GK | ✔ | ✔ | ✔ | ✔ | |||
| GU | ✔ | ✔ | |||||
* AKME74Q Only

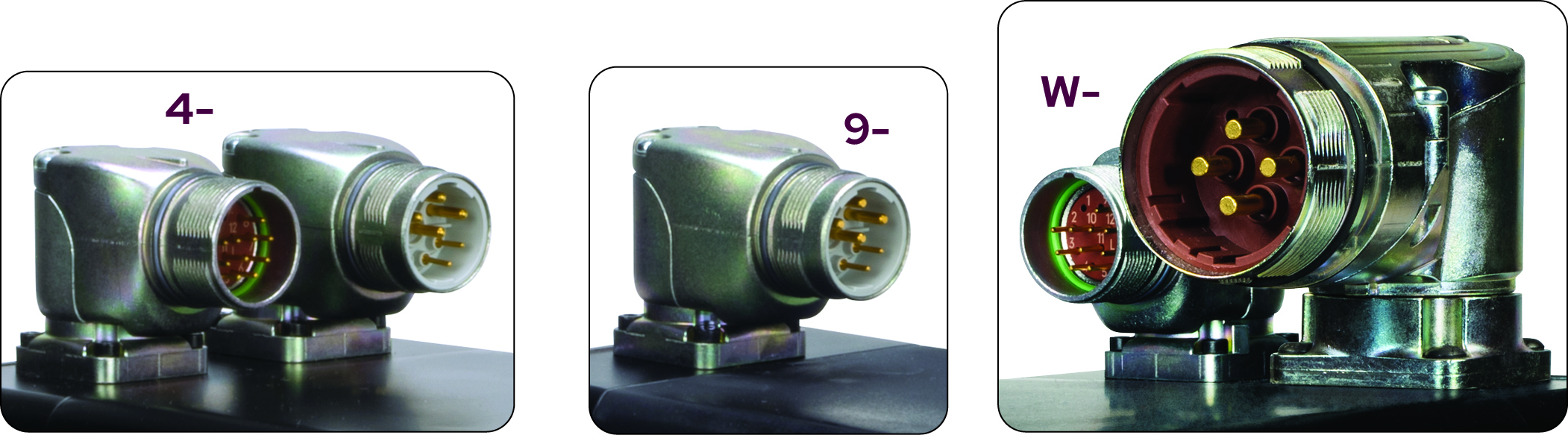

Connectors
| Code | Thermal Sensor | Used With | IP Rating*** | Connection Type | Description |
|---|---|---|---|---|---|
| 4 | PT1000 | AKME2-AKME7 | IP67 | 2 threaded connectors, size 1.0 (M23) | Angled, rotatable, mounted on motor |
| 9 | AKME2-AKME6 | IP67 | 1 threaded connector, size 1.0 (M23) | Angled, rotatable, mounted on motor | |
| W | AKME7 | IP67 | 1 feedback threaded connector, size 1.0 (M23) 1 power threaded connector, size 1.5 (M40) | Angled, rotatable, mounted on motor |
*** IP ratings shown apply ONLY to the connector and the connector base/bushing on motor.
