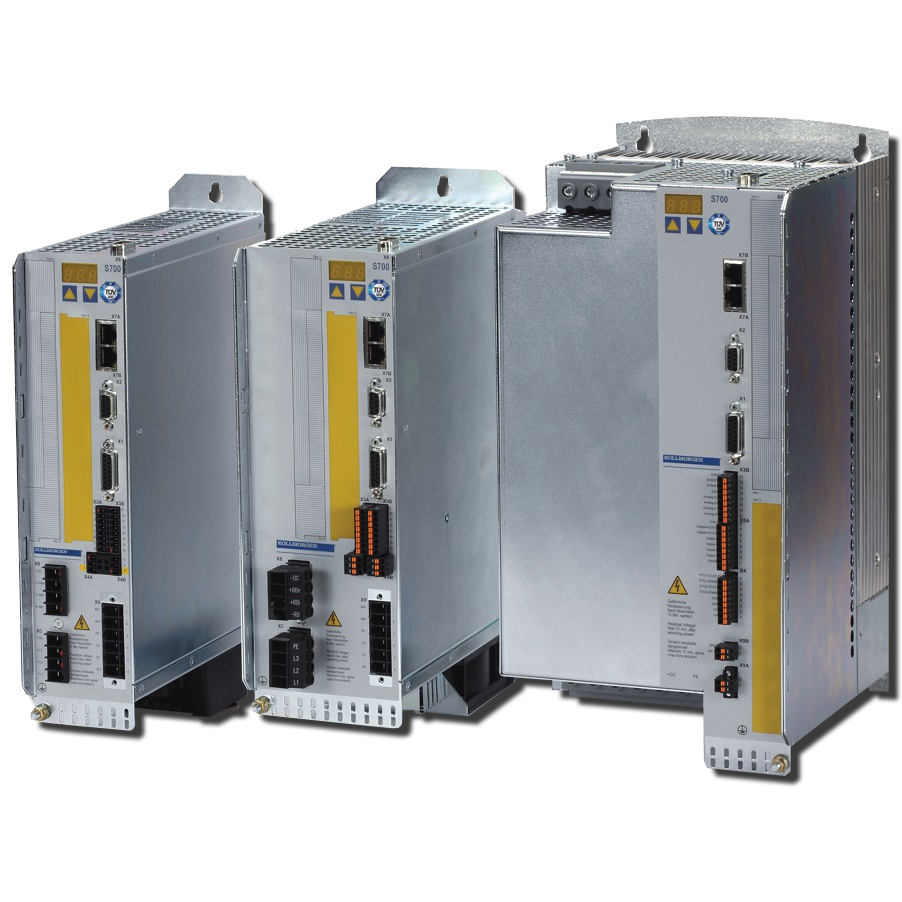

S700
The S700 is a digital servo drive with extended functionality that is ideal for complex drive tasks. It incorporates onboard Ethernet connectivity for use with EtherCAT® and SynqNet™, and the optional MMC memory card enables parameter records and firmware to be easily backed up in the field. A Safe Torque Off function is standard. Single Cable feedback with both SFD3 and Hiperface DSL is also supported.
Product available worldwide
Features
Features
- CE, UL, TÜV safety tested
- Operation directly from grounded 110 to 480 VAC, 1 or 3-phase, 50 to 60 Hz lines
- Models with maximum continuous output current from 1.5 to 72 Amps RMS/phase
- Safe Torque Off (STO) function onboard
- EtherCAT® and CANopen bus communication onboard
- Legacy bus support including PROFINET, DeviceNet, PROFIBUS DP, SERCOS II and RS232
- Single Cable Feedback SFD3 and Hiperface DSL
- Slot for MMC memory card for backup and copy of parameters and firmware
- Optimized resolver interface
- Autotuning
- Cogging suppression
- Fastest feedback evaluation on the market
Benefits
- High-speed current, speed and position control result in higher machine cycle rates
- IEC 61131 macro programming language inside makes motion flexible
- Multi-interface and multi-feedback features provide compatibility with all standard controllers and feedback systems, reducing the need to stock multiple drive types
- Onboard EMC filters and integrated power supply and brake resistor enable smaller switchgear cabinets
- Memory card for parameter and firmware updates, autotuning features and connectors for all connections facilitate faster setup
Specifications
Technical Data
| Rated data | DIM | S701 | S703 | S706 | S712 | S7120P | S724 | S7240P | S748 | S772 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated output current (RMS value) | ||||||||||||||||
| Rated line voltage | V~ | 3 x 208V-10% … 3 x 480V+10%, 50/60 Hz | ||||||||||||||
| Rated line power for S1 operation | kVA | 1,1 | 2,2 | 4,5 | 9 | 9 | 18 | 18 | 35 | 50 | ||||||
| Auxiliary supply | V= | 24 | ||||||||||||||
| Rated DC-link voltage | V= | 290-675 | ||||||||||||||
| -At 3 x 208 V | A RMS | 2,5 | 5 | 6 | 12 | 12 | 24 | 24 | 48 | 72 | ||||||
| - At 3 x 230 V | A RMS | 2 | 4 | 6 | 12 | 12 | 24 | 24 | 48 | 72 | ||||||
| - At 3 x 400 V | A RMS | 1,5 | 3 | 6 | 12 | 12 | 24 | 24 | 48 | 72 | ||||||
| -At 3 x 480 V | A RMS | 1,5 | 3 | 6 | 12 | 12 | 24 | 24 | 48 | 70 | ||||||
| peak output current (RMS value) | A RMS | 4,5 | 9 | 18 | 24 | 30 | 48 | 72 | 96 | 140 | ||||||
Dimensions
| Rated data | DIM | S701 | S703 | S706 | S712 | S7120P | S724 | S7240P | S748 | S772 |
|---|---|---|---|---|---|---|---|---|---|---|
| (H) Height incl. Fan | mm | 345 | 348 | 385 | ||||||
| (W) Width | mm | 70 | 100 | 190 | ||||||
| (D) Depth incl. Connector | mm | 243 | ||||||||
