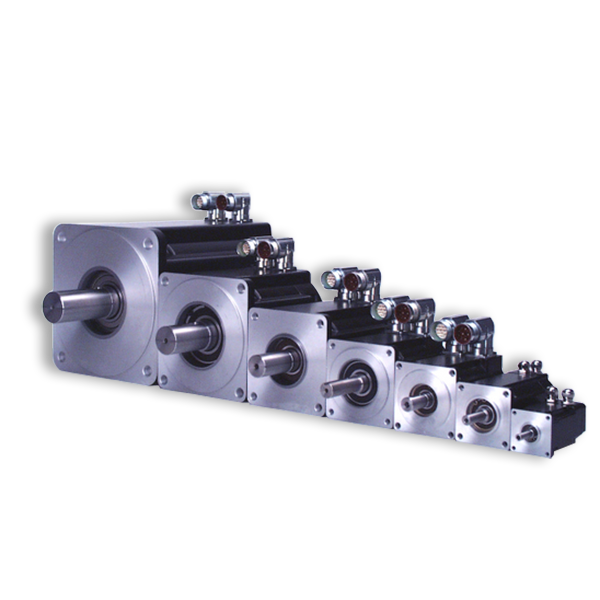

Servomoteur série AKM™
Notre large gamme de configurations standard offre les mêmes avantages qu'une solution personnalisée
Avec plus de 500 000 produits standard et un nombre pratiquement illimité de modifications en co-conception, il n'a jamais été aussi facile de sélectionner le moteur le mieux adapté, pour votre application.
- Large choix et grande flexibilité parmi une large gamme de produits standards. Modifications possibles pour répondre à vos besoins les plus précis.
- Meilleures performances de sa catégorie, avec densité énergetique inégalée
- Cogging exceptionnellement faible et distorsion harmonique légère pour un fonctionnement fluide
- Facilité de mise en service et d'utilisation, avec reconnaissance des moteurs Plug-and-Play et réglage automatique pleine fréquence sur les variateurs de la série AKD™
Produit disponible partout dans le monde
Caractéristiques
Caractéristiques

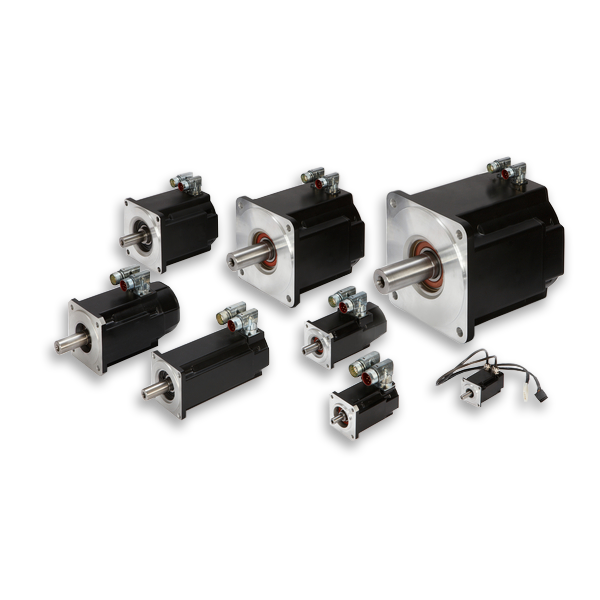

- 8 tailles, 28 combinaisons taille/longueur
- Vitesses jusqu'à 8 000 tr/min
- Bobinages 75 VCC ; 120, 240, 480 VCA
- Grande variété de capteurs, de montages et de joints d'arbre
- Raccordement direct à la plupart des servovariateurs Kollmorgen
- Les bobinages sont évalués pour une augmentation de température de 100 °C par rapport à une température ambiante de 40 °C tout en utilisant des matériaux d'isolation de 155 °C (classe F)
- Reconnaissance cURus, conformité CE, reconnaissance UL
Options
- Capteurs : résolveur, SFD, codeurs incrémental et sinus
- Joints pour une protection environnementale améliorée
- Bouts d'arbre fermés ou rainure de clavette ouverte, plate, lisse
- Connecteurs Intercontec doubles ou simples, droits ou rotatifs
- Freins de sécurité 24 VCC
- Versions résistantes au lavage IP67 avec des graisses et des finitions de qualité alimentaire
Spécifications
| Taille | AKM1 | AKM2 | AKM3 | AKM4 | AKM5 | AKM6 | AKM7 | AKM8 |
|---|---|---|---|---|---|---|---|---|
| Longueur de l'empilement | 1, 2, 3 | 1, 2, 3, 4 | 1, 2, 3 | 1, 2, 3, 4 | 1, 2, 3, 4 | 2, 3, 4, 5 | 2, 3, 4 | 2, 3, 4 |
| Bobinages | B, C, D, E | C, D, E, F, G | C, D, E, H | C, E, G, H, J, K | E, G, K, L, M, N | G, K, L, M, N, P | K, L, M, P | T |
| BUS maxi (VCC) | 320 | 640 | 640 | 640 | 640 | 640 | 640 | 640 |
| Décrochement maxi Tc Nm (lb-po) |
0,409 (3,62) |
1,4 (12,6) |
2,88 (25,5) |
6,0 (53,1) |
14,1 (125) |
25,0 (221) |
53,0 (469) |
140 (1239) |
| Tp maxi Nm (lb-po) |
1,46 (12,9) |
4,82 (42,7) |
10,22 (90,5) |
20,4 (181) |
38,4 (340) |
65,2 (577) |
143 (1269) |
668 (5912) |
| N nominal maxi | 8 000 | 8 000 | 7 000 | 6 000 | 6 000 | 6 000 | 3 500 | 3 000 |
| Puissance nominale maxi au BUS maxi kW (Hp) |
0,30 (0,41) |
0,54 (0,72) |
1,19 (1,59) |
1,73 (2,32) |
3,87 (5,19) |
6,16 (8,25) |
7,71 (10,34) |
19,5 (26,1) |
