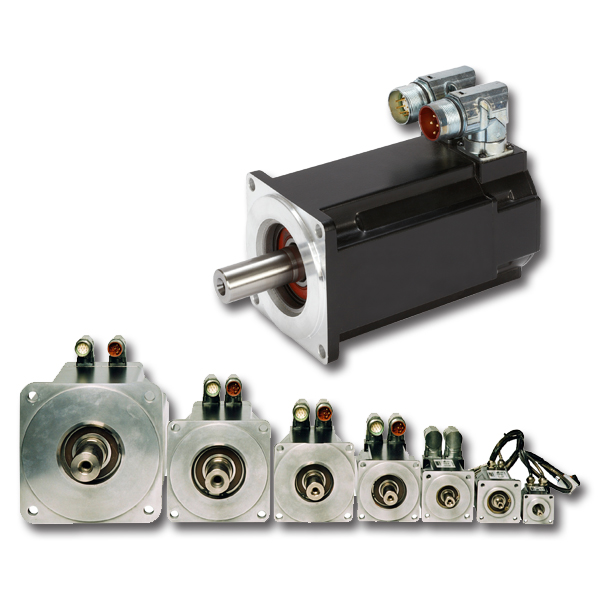

AKM™ Synchronservomotoren

Unsere große Vielfalt an Standardkonfigurationen bieten dieselben Vorteile wie eine maßgeschneiderte Lösung

Mit mehr als 500.000 Standardprodukten und praktisch unbegrenzten Modifikationsmöglichkeiten im Co-Engineering wird die Auswahl des passenden Motors, der auf die Anforderungen Ihrer spezifischen Anwendung zugeschnitten ist, so einfach wie niemals zuvor.

Große Auswahl und Flexibilität aus einem breiten Angebot von Standardprodukten und Modifikationsmöglichkeiten im Co-Engineering für eine genaue Anpassung an Ihre Designanforderungen
Spitzenleistung mit branchenführender Leistungsdichte
Außerordentlich geringes Cogging und niedrige harmonische Verzerrung für reibungslose Ausführungsleistung
Einfache Inbetriebnahme und Nutzung mit Plug-and-Play-Motorerkennung und Vollfrequenz-Autotuning bei Servoantrieben der Serie AKD™

Kontakt AUSWAHLKRITERIEN

Das Produkt ist weltweit verfügbar

Merkmale

8 Baugrößen, 28 Gehäuse- und Baulängenkombinationen
Drehzahlen bis 8000 U/min
Wicklungen für 75 VDC; 120, 240, 480 VAC
Eine große Vielfalt von Rückführeinheiten, Befestigungen und Dichtungen
Direkte Kopplung mit den meisten Kollmorgen Servoverstärkern
Wicklungen sind für 100 °C Grenzübertemperatur bei 40 °C Umgebungstemperatur mit Isolierstoffen der Klasse F (155 °C) ausgelegt
cURus, CE-Zertifizierung, UL-Zulassung

Optionen

Rückführeinheiten: Resolver, SFD, Inkremental- und Sinusgeber
Dichtungen für verbesserten Umweltschutz
Wellenenden mit geschlossener oder offener Nut, flach, glatt
Ein- oder zweiteilige Steckverbinder Intercontec, gerade oder drehbar
24 VDC ausfallsichere Bremsen
IP67 Washdown-Versionen mit lebensmittelgeeigneten Fetten und Verarbeitungen

Spezifikationen

Baugröße	AKM1	AKM2	AKM3	AKM4	AKM5	AKM6	AKM7	AKM8
Baulänge	1,2,3	1,2,3,4	1,2,3	1,2,3,4	1,2,3,4	2,3,4,5	2,3,4	2,3,4
Windings	B,C,D,E	C,D,E,F,G	C,D,E,H	C,E,G,H,J,K	E,G,K,L,M,N	G,K,L,M,N,P	K,L,M,P	T
Max BUS (VDC)	320	640	640	640	640	640	640	640
Max Stall Tc Nm (lb-in)	0.409 (3.62)	1.4 (12.6)	2.88 (25.5)	6.0 (53.1)	14.1 (125)	25.0 (221)	53.0 (469)	140 (1239)
Max Tp Nm (lb-in)	1.46 (12.9)	4.82 (42.7)	10.22 (90.5)	20.4 (181)	38.4 (340)	65.2 (577)	143 (1269)	668 (5912)
Max Rated N	8000	8000	7000	6000	6000	6000	3500	3000
Max Rated Power @ Max BUS kW (Hp)	.30 (.41)	.54 (.72)	1.19 (1.59)	1.73 (2.32)	3.87 (5.19)	6.16 (8.25)	7.71 (10.34)	19.5 (26.1)
