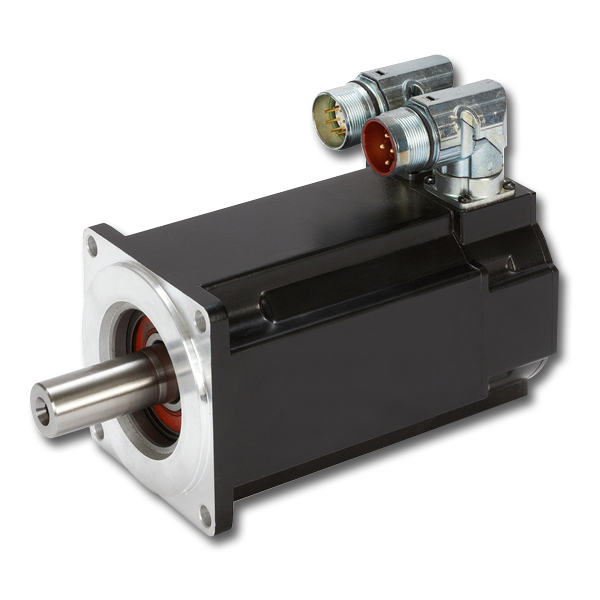

Servomotori serie AKM™
La nostra ampia gamma di configurazioni standard offre gli stessi vantaggi delle soluzioni personalizzate
Con oltre 500.000 prodotti standard e un numero praticamente illimitato di modifiche progettate in condivisione, non è mai stato più semplice scegliere il motore giusto, ottimizzato per i requisiti specifici dell'applicazione.
- Scelta e flessibilità notevoli da un'ampia gamma di prodotti standard e varianti progettate in condivisione per un adattamento totale ai requisiti di progettazione
- Prestazioni al top, con densità di potenza eccellenti
- Cogging eccezionalmente basso e ridotta distorsione armonica per garantire prestazioni fluide
- Semplicità di messa in servizio e utilizzo, con riconoscimento motore plug and play e autoregolazione a frequenza totale sui servoazionamenti della serie AKD™
Prodotto disponibile in tutto il mondo
Caratteristiche
Caratteristiche
- 8 dimensioni di telai, 28 combinazioni telaio/statore
- Velocità fino a 8.000 giri/min
- Avvolgimenti da 75 V CC; 120, 240, 480 V CA
- Un'ampia gamma di dispositivi di retroazione, montaggi e guarnizioni
- Abbinamento con la maggior parte dei servoazionamenti Kollmorgen
- Avvolgimenti previsti per aumento di 100°C oltre una temperatura ambiente di 40°C utilizzando materiali di isolamento a 155°C (classe F)
- Conformità cURus, CE, certificazione UL
Opzioni
- Dispositivi di retroazione: resolver, SFD, encoder incrementali e sinusoidali
- Guarnizioni per una migliore protezione ambientale
- Albero con terminazioni a chiavetta chiusa o aperta, piane, lisce
- Connettori Intercontec doppi o singoli, diritti o ruotabili
- Freni fail-safe a 24 VCC
- Versioni lavabili IP67 con lubrificanti e finiture per uso alimentare
Specifiche
| Dimensioni telaio | AKM1 | AKM2 | AKM3 | AKM4 | AKM5 | AKM6 | AKM7 | AKM8 |
|---|---|---|---|---|---|---|---|---|
| Lunghezza statore | 1,2,3 | 1,2,3,4 | 1,2,3 | 1,2,3,4 | 1,2,3,4 | 2,3,4,5 | 2,3,4 | 2,3,4 |
| Avvolgimenti | B, C, D, E | C, D, E F, G |
C, D, E, H | C, E, G H, J, K |
E, G, K L, M, N |
G, K, L M, N, P |
K, L, M, P | T |
| Max BUS (V CC) | 320 | 640 | 640 | 640 | 640 | 640 | 640 | 640 |
| Max Tc stallo Nm (lb-in) |
0.409 (3.62) |
1.4 (12.6) |
2.88 (25.5) |
6.0 (53.1) |
14.1 (125) |
25.0 (221) |
53.0 (469) |
140 (1239) |
| Max Tp Nm (lb-in) |
1.46 (12.9) |
4.82 (42.7) |
10.22 (90.5) |
20.4 (181) |
38.4 (340) |
65.2 (577) |
143 (1269) |
668 (5912) |
| Max N nominale | 8000 | 8000 | 7000 | 6000 | 6000 | 6000 | 3500 | 3000 |
| Max potenza nominale a max BUS kW (HP) |
.30 (.41) |
.54 (.72) |
1.19 (1.59) |
1.73 (2.32) |
3.87 (5.19) |
6.16 (8.25) |
7.71 (10.34) |
19.5 (26.1) |
Media & Downloads
| Title | File Language | Date | Share URL |
|---|---|---|---|
| AKD2G, AKD Accessories Guide Europe EN | English | |
Share URL /sites/default/files/public_downloads/AKD%20Accessories%20Europe_en.pdf |
| AKD2G, AKD and S700 Accessories Guide North America EN | English | |
Share URL /sites/default/files/public_downloads/AKD2G%20AKD%20S700%20Accessories%20Guide%20North%20America%20EN%20REV%20K.pdf |
| AKD2G, AKD Zubehörhandbuch Europa DE | German | |
Share URL /sites/default/files/public_downloads/AKD%20Accessories%20Europe_de.pdf |
| AKM Bedienungsanleitung DE | German | |
Share URL /sites/default/files/akm/documentation//AKM%20Installation%20Manual%20DE%20Rev%2006-2008.pdf |
| AKM Instruction Manual EN DE IT ES FR RU | English, French, German, Italian, Russian, Spanish | |
Share URL /sites/default/files/public_downloads/AKM_Installation-ge-en-it-sp-fr-ru.pdf |
| AKM Instructions Manual DEIS | English, German, Italian, Spanish | |
Share URL /sites/default/files/akm/documentation/installation//AKM%20Installation%20Manual%20DEIS%20Rev%2004-2013.pdf |
| AKM Instructions Manual DEISFR | English, French, German, Italian, Russian, Spanish | |
Share URL /sites/default/files/public_downloads/AKM%20Instructions%20Manual%20DEISFR%20%28REV%209-2015%29.pdf |
| AKM Instructions Manual EN | English | |
Share URL /sites/default/files/akm/documentation/installation//AKM%20Installation%20Manual%20EN%20Rev%2006-2008.pdf |
| AKM Part Number Scheme and Connectivity | English | |
Share URL /sites/default/files/public_downloads/akm_connectivity_en_0.pdf |
| AKM Transport Anleitung DE | German | |
Share URL /sites/default/files/akm/documentation/transport//AKM%20Transport%20Instruction%20Manual%20DE%20Rev%2012-2010.pdf |
| AKM Transport Instruction Manual EN | English | |
Share URL /sites/default/files/akm/documentation/transport//AKM%20Transport%20Instruction%20Manual%20EN%20Rev%2012-2010.pdf |
| AKM Typenschlüssel | German | |
Share URL /sites/default/files/public_downloads/akm_connectivity_ge.pdf |
| Zubehör für digitale Antriebe DE | German | |
Share URL /sites/default/files/public_downloads/Digital%20Drive%20Systems%20Accessories%20Guide%20DE%20%28REV%2012-2014%29.pdf |
| 科尔摩根AKM电机安装手册_EN_2021 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKM%E7%94%B5%E6%9C%BA%E5%AE%89%E8%A3%85%E6%89%8B%E5%86%8C_EN_2021.pdf |
| 科尔摩根AKM电机选型手册_2021 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKM%E5%90%8C%E6%AD%A5%E4%BC%BA%E6%9C%8D%E7%94%B5%E9%80%89%E5%9E%8B%E6%8C%87%E5%8D%97_2017_RevC.pdf |
| Kollmorgen 2G Cable Guide | English | |
Share URL https://www.kollmorgen.com/en-us/products/accessories/cables/literature/kollmorgen-2g-cable-guide/ |
These 3D models are intended to guide your design activities and may be used as reference information. Be sure to consult a Kollmorgen expert to ensure you have the most current and accurate information for critical aspects of design work.
| Title | File Language | Date | Share URL |
|---|---|---|---|
| AKM 3D Models & 2D Dimensions | English | |
Share URL https://webassistants.partcommunity.com/23d-libs/kollmorgen/assistant/pcomm.html?series=akm |
| Title | File Language | Date | Share URL |
|---|---|---|---|
| 1G Performance Feedback Cable (CF-DA0374N-XX-X) REACH SVHC Certification | English | |
Share URL /sites/default/files/public_downloads/CF-DA0374N-XX-X_R209.pdf |
| 1G Performance Feedback Cable (CF-DA0374N-XX-X) RoHS Certification | English | |
Share URL /sites/default/files/public_downloads/CF-DA0374N-XX-X_RoHS10.pdf |
| 1G Performance Power Cable (CP-507CCAN-XX-X) REACH SVHC Certification | English | |
Share URL /sites/default/files/public_downloads/CP-507CCAN-XX-X_R209.pdf |
| 1G Performance Power Cable (CP-507CCAN-XX-X) RoHS Certification | English | |
Share URL /sites/default/files/public_downloads/CP-507CCAN-XX-X_RoHS10.pdf |
| AKM EU RoHS Declaration (RoHS10) | English | |
Share URL /sites/default/files/public_downloads/RoHS10W_standard%20AKM.pdf |
| AKM REACH SVHC Certificate of Compliance | English | |
Share URL /sites/default/files/public_downloads/REACH_223_Standard%20AKM.pdf |
| AKM Servomotor EU Declaration of Conformity US EN | English | |
Share URL /sites/default/files/public_downloads/AKM%20CE%20Declaration%2009APR20.pdf |
| AKM UL Certificate of Compliance | English | |
Share URL /sites/default/files/public_downloads/AKM%20UL%20Certificate%20of%20Compliance.pdf |
| AKM Washdown FDA Zertifikat - German | German | |
Share URL /sites/default/files/public_downloads/akm_fda_d.pdf |
| AKM1G UKCA Declaration of Conformity (E.U.) | English | |
Share URL /sites/default/files/public_downloads/DoC_UKCA_AKM1G_Brno_0.pdf |
| AKM1G UKCA Declaration of Conformity (U.S.A.) | English | |
Share URL /sites/default/files/public_downloads/DoC_UKCA_AKM1G_USA.pdf |
| Approvals and Certifications | English, German, Russian | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20Zertifikate-Certificate_de-en.pdf |
| Blue Guide | English, German | |
Share URL https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=OJ%3AC%3A2022%3A247%3ATOC |
| CEL China Efficiency Labelling for Servo and Stepper Motors | English | |
Share URL /sites/default/files/public_downloads/CEL%20Technical%20Notice%20on%20Efficiency%20for%20Servo%20and%20Stepper%20Motors.pdf |
| EAC Certification for Motors | English, Russian | |
Share URL /sites/default/files/public_downloads/eac_declaration_motors.pdf |
| EU-Konformitätserklärung AKM | German | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20AKM%20EU-Conformity%20DE.pdf |
| Kollmorgen CE Technical Notice - Servo and Stepper Motors Efficiency | English | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20CE%20Technical%20Notice%20-%20Servo%20and%20Stepper%20Motors%20Efficiency.pdf |
| Kollmorgen Servo & Stepper Motor Online UL Certification | English | |
Share URL http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=PRHZ2.E61960&ccnshorttitle=Servo%20and%20Stepper%20Motors%20-%20Component&objid=1081137584&cfgid=1073741824&version=versionless&parent_id=1079907253&sequence=1 |
| 科尔摩根AKM电机CCC认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKM%E7%94%B5%E6%9C%BACCC%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKM电机CE认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKM%E7%94%B5%E6%9C%BACE%E8%AE%A4%E8%AF%81_0.pdf |
| 科尔摩根AKM电机cUL认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKM%E7%94%B5%E6%9C%BAcUL%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKM电机EAC认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKM%E7%94%B5%E6%9C%BAEAC%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKM电机REACH认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKM%E7%94%B5%E6%9C%BAREACH%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKM电机RoHS认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKM%E7%94%B5%E6%9C%BARoHS%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKM电机UL认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKM%E7%94%B5%E6%9C%BAUL%E8%AE%A4%E8%AF%81.pdf |
