Moteurs linéaires à accouplement direct
Un moteur linéaire à accouplement direct (DDL, Direct Drive Linear) est tout simplement un moteur rotatif qui est disposé à plat et directement couplé à la charge entraînée. En éliminant les composants mécaniques de transmission, ce design offre des résultats exceptionnels en termes de performances, de rigidité, de vitesses et d'accélérations dynamiques, de précision de positionnement et de débit. Les moteurs DDL permettent également un assemblage mécanique compact, un fonctionnement silencieux, une maintenance nulle et un mouvement fluide et sans erreur.
Produit disponible partout dans le monde
Augmentez la productivité
Réduisez la complexité de votre machine. Le fait d'entraîner directement votre charge en supprimant les transmissions sujettes aux défaillances réduira la probabilité de défaillances coûteuses et la nécessité d'une maintenance préventive onéreuse. Le résultat final est une réduction du coût total de possession de votre machine.
Caractéristiques
- Force de poussée nominale la plus élevée par taille, idéale pour accélérer et déplacer des masses importantes
- Maintient la rigidité requise pour l'usinage et les autres forces endurées
- Aucune maintenance
- Aucun besoin de vis à billes, de boîtes d'engrenages, de pignons et crémaillères, ni de courroies et poulies
- Rigidité et aucun jeu
- Rigidité élevée
- Haute précision de positionnement
- Assemblage mécanique compact
- Réduction du nombre de pièces
- Vitesse très fluide

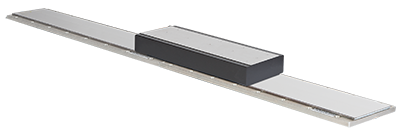

Moteurs linéaires à noyau en fer
(Iron Core) Les moteurs linéaires à noyau en fer ont des bobines enroulées autour de tôles en acier au silicium pour maximiser la force générée par un aimant à simple face. La conception électromagnétique spéciale de ces moteurs permet d'obtenir la force nominale la plus élevée par taille, une constante moteur Km élevée pour de faibles pertes thermiques et de faibles forces de cogging. Les forces de poussée élevées possibles avec ces moteurs les rendent parfaits pour accélérer et déplacer de grandes masses, et maintenir la rigidité pendant l'usinage et autres opérations.
Spécifications du noyau en fer (Iron Core)
Non refroidi
| Force maxi (N) | ||||
|---|---|---|---|---|
| Continue | Crête | |||
| N | (lbf) | N | (lbf) | |
| IC11 | 144 à 1 197 | 32,4 à 269 | 320 à 2 135 | 71,9 à 480 |
| IC22 | 280 à 2 393 | 62,9 à 538 | 624 à 4 156 | 140 à 934 |
| IC33 | 431 à 3 590 | 96,9 à 807 | 944 à 6 291 | 212 à 1 414 |
| IC44 | 560 à 4 786 | 126 à 1 076 | 1 259 à 8 388 | 283 à 1 885 |
| ICH11 | 175 à 1 569 | 39,3 à 352,7 | 405 à 3 372 | 91 à 758,1 |
| ICH22 | 342 à 3 067 | 76,9 à 689,5 | 710 à 5 918 | 159,6 à 1 330,4 |
| ICH33 | 511 à 4 016 | 114,9 à 902,8 | 1 065 à 9 545 | 239,4 à 2 145,8 |
| ICH44 | 600 à 5 341 | 134,9 à 1 200,7 | 1 527 à 12 726 | 343,3 à 2 860,9 |
| ICD05 | 57 à 157 | 12,8 à 35,3 | 165 à 588 | 37,1 à 132 |
| ICD10 | 104 à 315 | 23,4 à 70,8 | 330 à 1 099 | 74,2 à 247 |
Refroidi à l'eau
| Force maxi (N) | ||||
|---|---|---|---|---|
| Continue | Crête | |||
| N | (lbf) | N | (lbf) | |
| IC11 | 254 à 1 712 | 57,1 à 385 | 315 à 2 102 | 70,8 à 473 |
| IC22 | 519 à 3 458 | 117 à 777 | 630 à 4 204 | 142 945 |
| IC33 | 769 à 5 135 | 173 à 1 154 | 945 à 6 306 | 212 à 1 418 |
| IC44 | 1 036 à 6 916 | 233 à 1 555 | 1 260 à 8 407 | 283 à 1 890 |
Moteurs linéaires sans fer
Ces moteurs n'ont pas de fer ni d'encoches sur lesquelles les bobines seraient enroulées. Par conséquent, ces moteurs n'ont aucun cogging, sont très légers et n'exercent absolument aucune force d'attraction entre l'assemblage de la bobine et la voie magnétique. Ces caractéristiques sont idéales pour les applications nécessitant une très faible friction des roulements, une forte accélération des charges légères, et pour maximiser la vitesse constante, même à des vitesses ultra-basses. Les voies magnétiques modulaires sont composées d'une double rangée d'aimants pour maximiser la force de poussée et fermer le circuit magnétique.
