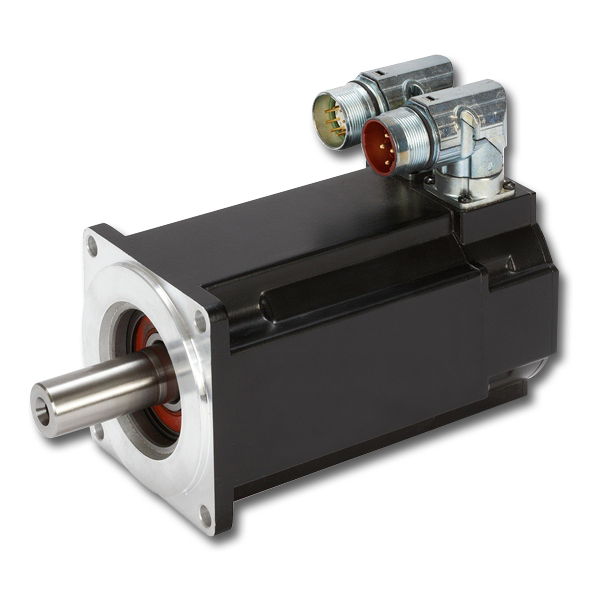

AKM™ Series Servo Motor
Our wide range of standard configurations offer the same advantages as a custom solution
With more than 500,000 standard products and practically unlimited co-engineered modifications, selecting the right-fit motor—optimized for your specific application requirements—has never been easier.
- Extensive choice and flexibility from a wide range of standard products and co-engineered modifications for an exact fit to your design requirements
- Best-in-class performance, with industry-leading power density
- Exceptionally low cogging and low harmonic distortion to ensure smooth performance
- Easy to commission and use, with plug-and-play motor recognition and full-frequency autotuning on AKD™ Series servo drives
Product available worldwide
Features
Features
- 8 frame sizes, 28 frame/stack combinations
- Speeds up to 8,000 RPM
- 75 VDC; 120, 240, 480 VAC windings
- A wide variety of feedback devices, mountings and seals
- Direct mate to most Kollmorgen servo drives
- Windings are rated at 100°C rise over a 40°C ambient while using 155°C (class F) insulation materials
- cURus, CE Compliant, UL Recognition
Options
- Feedback devices: resolver, SFD, incremental and sine encoders
- Seals for improved environmental protection
- Shaft ends closed or open keyway, flat, smooth
- Dual or single Intercontec connectors, straight or rotatable
- 24 VDC fail-safe brakes
- IP67 washdown versions with food-grade greases and finishes
Specifications
| Frame Size | AKM1 | AKM2 | AKM3 | AKM4 | AKM5 | AKM6 | AKM7 | AKM8 |
|---|---|---|---|---|---|---|---|---|
| Stack Length | 1,2,3 | 1,2,3,4 | 1,2,3 | 1,2,3,4 | 1,2,3,4 | 2,3,4,5 | 2,3,4 | 2,3,4 |
| Windings | B,C,D,E | C,D,E,F,G | C,D,E,H | C,E,G,H,J,K | E,G,K,L,M,N | G,K,L,M,N,P | K,L,M,P | T |
| Max BUS (VDC) | 320 | 640 | 640 | 640 | 640 | 640 | 640 | 640 |
| Max Stall Tc Nm (lb-in) |
0.409 (3.62) |
1.4 (12.6) |
2.88 (25.5) |
6.0 (53.1) |
14.1 (125) |
25.0 (221) |
53.0 (469) |
140 (1239) |
| Max Tp Nm (lb-in) |
1.46 (12.9) |
4.82 (42.7) |
10.22 (90.5) |
20.4 (181) |
38.4 (340) |
65.2 (577) |
143 (1269) |
668 (5912) |
| Max Rated N | 8000 | 8000 | 7000 | 6000 | 6000 | 6000 | 3500 | 3000 |
| Max Rated Power @ Max BUS kW (Hp) |
.30 (.41) |
.54 (.72) |
1.19 (1.59) |
1.73 (2.32) |
3.87 (5.19) |
6.16 (8.25) |
7.71 (10.34) |
19.5 (26.1) |
