	Non-Motion Networks	Motion Networks
Category	Modbus TCP/IP	UDP	HTTP	Profinet	EtherNet/IP	EtherCAT
Transmission Speed	100 Mbits/sec
Deterministic?	No	Yes
Hardware Layer	Ethernet Technology
Update Rate	20 to 1000 msec	down to 1 msec	100 to 200 msec	down to 8 msec	down to 10 msec	0.25 to 2.5 msec
Support in IDE	Dedicated setup screen for mapping dictionary variables to Modbus transmission address.	Set of FBs to setup communications and send data in non-string or string format.	Setting on Controller Properties in Project view for making all parameters accessible to HTTP link. Can use standard HTTP commands to start and stop a project, and for reading/writing variable values.	Dedicated setup screen for mapping dictionary variables to transmission locations.	Dedicated setup screen for mapping dictionary variables to transmission locations.	FBs for reading/writing parameters to Drives and third-party I/O: DriveParamRead, DriveParamWrite, ECATReadSDO, ECATWriteSDO. Automatic network setup through scan feature. Screens to setup init and PDO variables. Tools to integrate third-party products.
Types Supported	Slave Only	Send or Receive	Server Only	Profinet IO RT Controller, Profinet IO RT Device	Scanner, Adapter, Tag Client	CoE (CAN Application Protocol Over EtherCAT) Master
Documentation Available	Yes	Yes	Yes, includes examples using C# and C++ programming languages	Yes	Yes	Yes
Sample Project Available?	Yes, on KDN	Yes	Yes, on KDN	No	Yes, on KDN	N/A
Transfer Motion?	Non-Motion Profile only	Yes
Use with PC-based embedded Controller (Developed in VB, VS, etc, and in C#, C++, etc.)	Typically not	Yes	Yes	Typically not	Typically not	No, PDMM is master only

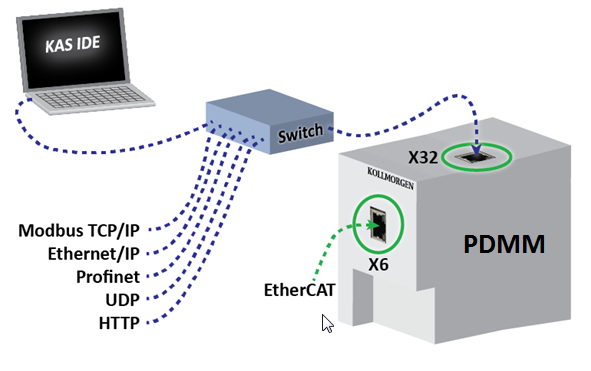

PDMM Connection point	Connector X32	Connector X6
IDE Requires Node Config File	No	Yes
Typical Mating Products	Common for third-party HMI interfaces	PC-based Controller	PC-based Controller	Typically used with Siemens PLC	-	Kollmorgen Drives, Kollmorgen I/O, third-party products

Comments

silverwind

Tue, 04/23/2019 - 19:19

Dear Author cwontrop：
my devices includes three AKD pdmm and one PCMM.Now, I want to know if i can design a software on PC base on c# or labview to control the PCMM or AKD PDMM. I have find the AKD datasheet ,so can i use the cable from akd X6 into my computer and use my software to control the motor without the PCMM and KAS software? how to setup the connect between PC and AKD PDMM?
thanks for your answer.

C Wontrop

Wed, 04/24/2019 - 06:33

The PCMM is a controller only product. The AKD PDMM is a combined motion controller and AKD drive. The PCMM or AKD PDMM X6 port is for EtherCAT communications only. The KAS controller, inside the AKD PDMM, is an EtherCAT master that will connect to Kollmorgen AKD drives , Kollmorgen S700 drives, and Kollmorgen AKT remote IO. Additionally it can connect to third part EtherCAT slave devices. If your PC (and software) can be an EtherCAT slave then it could possibly also connect to the PCMM or AKD PCMM EtherCAT connection via X6.

Other options to connect the PC based C# or Labview software to the AKD-PDMM or PCMM would be HTTP, Modbus TCP/IP , or UDP. There is information on these in KDN and in the online KAS manual: Welcome to KAS!.website

Sun, 04/28/2019 - 19:21

I was wrong. I have three AKD drives and one PCMM. Now I can use the KAS software to control these motors. But i think the KAS software is difficult to control my motors to follow curves which are changed with time. so i want to write a software to control my motors. my software maybe an ethercat master. and i find that if i use TCP/IP or udp , I also need to open the kas software .

Mon, 04/29/2019 - 06:14

If you provide more information on the " curves which are changed with time' , I can let you know if the KAS software could meet the performance need. Send to my email address: [email protected].
As an alternative, if you write your own motion SW and place it on an ECAT master then you can communicate directly with the 3 AKD drives. The ECAT master could then replace the PxMM KAS controller.

Moreno

Wed, 06/12/2019 - 05:47

Hello

Normally for my applications I use many WAGO PLC with MODBUS protocol in a network tree.
To improve performance I use UDP MODBUS connection instead of TCP MODBUS connection.

Is possible make UDP MODBUS connection even with PCMM?

How many simultaneous MODBUS connection are permetted with PCMM?
I found the hanswer for AKD but not for PCMM.

Thanks in advance.

Sun, 06/16/2019 - 15:30

The UDP interface in the PxMM controller does not have a Modbus application layer on top of the UDP. Although perhaps it would be possible to create it with application code? But, this would probably entails a major application software development effort. Let me know if you would like to discuss this further

The PxMM controller, which can only be a Modbus TCP/IP Slave, can communicate with multiple Modbus TCP/IP Masters. The number of Master would depend on the other application needs. Each master will take a slice of CPU power. How many would you like to connect to one PxMM?

Wed, 06/19/2019 - 00:09

Hello

It's the first time I use this device and I don't know its strengths and weaknesses, at the moment the program is only in my head.

At the moment I defined 4 communication channel
- Data pump from an old serial scale (may be I will use an RS232 to EtherCAT gateway)
- PcMM management from the master PanelPC
- I/O sharing with a secondary PanelPC
- I/O sharing with an external PLC WAGO

In any case, the use of the MODBUS protocol is not mandatory even if it is very convenient for me. In the case I will implement UDP communications
