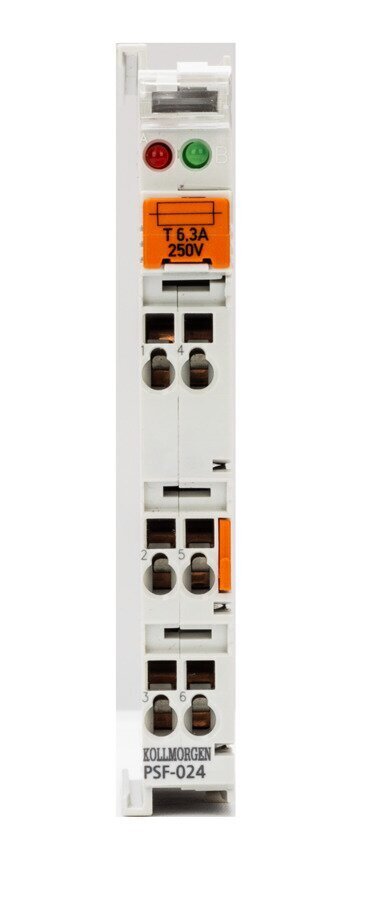

Power Supply Terminal with Fuse
This power feed terminal enables you to set up various potential groups with standard 24 VDC voltages.
Product available worldwide
Specifications
| Technical Data | AKT2G-PSF-024-000 |
|---|---|
| Nominal voltage | 24 VDC |
| Power contact current load | max. 10 A |
| Electrical isolation | 500 V (E-bus/field potential) |
| Integrated fine-wire fuse | yes; 6.3 A |
| Current consumption from E-Bus | - |
| Bit width in the process image | - |
| Configuration | no address or configuration settings |
| Power LED | yes |
| Diagnosis (fuse) | yes, Error LED |
| Electrical connection to mounting rail | no |
| PE contact | yes |
| Renewed infeed | yes |
| Connection facility to additional power contact | 1 |
| Side by side mounting on Bus Terminals with power contact | yes |
| Side by side mounting on Bus Terminals without power contact | yes |
| Weight | approx. 55 g |
| Permissible ambient temperature range (during operation) | 0°C ... +55°C |
| Permissible ambient temperature range (during storage) |
-25°C ... +85°C |
| Permissible relative humidity | 95%, no condensation |
| Dimensions (W x H x D) | approx. 15 mm x 100 mm x 70 mm (width aligned: 12 mm) |
| Mounting | on 35 mm mounting rail conforms to EN 60715 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC resistance burst/ESD | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP20 |
| Installation position | variable, see Positioning of Passive Terminals |
| Approval | CE, ATEX, cULus |
