KSM Safety Solutions

Safe motion from a motion expert, Kollmorgen - Your skilled partner for safe motion control solutions. Safety logic, servo drives and motors and even complete safe automation solutions - Kollmorgen delivers matched components from one source. Additionally, we offer efficient tools and engineering support for existing machine designs or innovative new developments. Take advantage of Kollmorgen’s innovative capacity and experience for the deployment of your safe motion control solution.

Get a Quote

Limited availability outside Europe

Features

KSM Safety Solutions Significantly Improve Productivity. With KSM Kollmorgen completes the motion safety chain from sensor-to-drive

Significantly higher productivity using the Motion Safety Concept
Low system costs using standard commercial of-the-shelf (COTS) components
Flexible and expandable safety solutions utilizing a modular design
Tested and certified by TUV achieving PLe (ISO 13849) and SIL3 (IEC 61508)
Interfaces seamlessly to Kollmorgen’s AKD, ServoStar, and KAS motion systems
All important safe motion functions are available with the modules

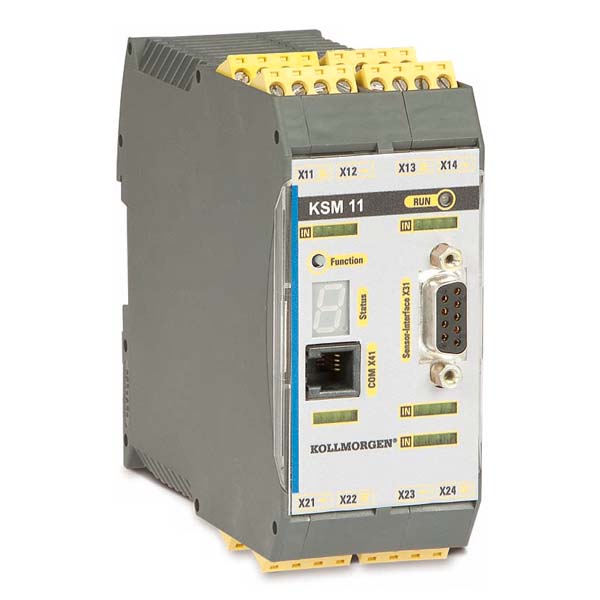

KSM-compact Safety Module

For 1 or 2 safe axes
Up to 2 expansion modules
Base unit with 16 safe I/O
Expandable up to 60 safe I/O
1 safe relay output, expandable
2 pulse outputs, 2 signal outputs
Expandable up to 6 pulse and 6 signal ouputs
Up to 800 function blocks
Space-saving, compact design

KSM-modular Safety PLC

Up to 12 safe axes
Up to 8 expansion modules
Base unit with 56 safe I/O
Expandable up to 200 safe I/O
1 safe relay output, expandable
2 pulse outputs, up to 10 signal outputs
Expandable up to 14 pulse and 22 signal outputs
Up to 3000 function blocks
For applications with large number of interfaces

Available Safety Functions (PLe & SIL3)

Safe Stop Function: STO, SS1, SS2, SOS
Safe Velocity Function: SLS, SSM, SSR, SMS
Safe Position Function: SLP, SCA, SLI
Safe Direction Function: SDI
Safe Brake Function: SBC

Connectivity:

EtherCAT
CANopen
Profinet
PROFIsafe and EtherCAT FSOE slave

Get a Quote

Specifications

	Base Units					Expansion Modules
KSM-modular			KSM 100-1	KSM 100-2	KSM 100-4	KSM 121/-2	KSM 122/-2	KSM 122A	KSM 131	KSM 131R
KSM-compact	KSM 11	KSM 12							KSM 31	KSM 31R	KSM 5x
Expansion Modules	2	2	8/6 ¹⁾	8/6 ¹⁾	8/6 ¹⁾
Safe Axes	1	2	Up to 6 with 6 KSM 121 Modules Up to 12 with 6 KSM 122 Modules			1 ³⁾	2 ⁴⁾	2 ⁴⁾
Axis Interface ²⁾	Up to 2	Up to 2				Up to 2	Up to 2	1
Safe Digital Input	14	14	14	14	14	12	12	12	12	12
Safe Digital I/O⁵⁾	-	-	-	20	40	-	-	-	10	2
Safe Digital Output	2	2	2	2	2	-	-	-	-	-
Safe Analog Input	-	-	-	-	-	-	-	2	-	4
Safe Relay	1	1	1	1	1	-	-	-	2	4
Signal Output	2	2	2	6	10	-	-	-	2	-
Pulse Output	2	2	2	2	2	-	-	-	2	-
Communication ⁶⁾	With KSM 5x		Option, onboard								Yes
Function Blocks	800	800	3000	3000	3000

1) Up to 6 expansion modules KSM 121/122
2) Single axis interface: Safe velocity monitoring only. Two axis interfaces: Safe velocity and safe position monitoring
3) Up to 6 axes with 6 KSM 121 modules
4) Up to 12 axes with 6 KSM 122(A) modules
5) Assignable as inputs or outputs
6) EtherCAT, CANopen, or Profinet (PROFIsafe slave and EtherCAT FSOE slave)

Get a Quote

Get Started

Count on Kollmorgen support to help you design and build a successful machine and keep it reliably productive, anywhere in the world. Our co-engineering experts will work with you to tailor a perfect-fit solution for your motion requirements.

Talk to a motion expert

Media & Downloads

Manuals Literature Drawings Support Certifications

Documentation
Title	Language(s)	Date	Size
KSM Betriebsanleitung DE (REV A)	German	23 Jun 2016	271.7 KB	Copy URL
KSM Compact Installation Manual EN (REV C)	English	20 Aug 2020	4.35 MB	Copy URL
KSM Compact Operating Manual EN (REV A)	English	23 Jun 2016	268.63 KB	Copy URL
KSM Compact Programming Manual EN (REV A)	English	23 Jun 2016	2.61 MB	Copy URL
KSM Compact Starter Guide EN (REV A)	English	23 Jun 2016	4.21 MB	Copy URL
KSM Compact Status Message Data EN (REV A)	English	23 Jun 2016	287.57 KB	Copy URL
KSM Installationshandbuch DE (REV B)	German	30 Jun 2017	3.27 MB	Copy URL
KSM Meldekanaldaten DE (REV A)	German	23 Jun 2016	287.96 KB	Copy URL
KSM Programmierhandbuch DE (REV A)	German	23 Jun 2016	2.94 MB	Copy URL
KSM100 Fehlerliste DE (REV A)	German	23 Jun 2016	698.38 KB	Copy URL
KSM100 Installation Manual EN (REV A)	English	23 Jun 2016	3.87 MB	Copy URL
KSM100 Installationshandbuch DE (REV A)	German	23 Jun 2016	3.58 MB	Copy URL
KSM100 Meldekanal DE (REV A)	German	23 Jun 2016	566.73 KB	Copy URL
KSM100 Programmierhandbuch DE (REV A)	German	23 Jun 2016	2.75 MB	Copy URL
KSM100 Programming Manual EN (REV A)	English	23 Jun 2016	2.69 MB	Copy URL
KSM100 Status Message Data EN (REV A)	English	23 Jun 2016	498.04 KB	Copy URL
KSM131R Installation Manual EN (REV A)	English	23 Jun 2016	796.45 KB	Copy URL
KSM131R Installationshandbuch DE (REV A)	German	23 Jun 2016	789.89 KB	Copy URL
KSM31R Compact Installation Manual EN (REV B)	English	30 Jun 2017	1.03 MB	Copy URL
KSM31R Installationshandbuch DE (REV B)	German	30 Jun 2017	1 MB	Copy URL
KSM45 Compact Installation Manual EN (REV A)	English	23 Jun 2016	796.76 KB	Copy URL
KSM45 Installationshandbuch DE (REV A)	German	23 Jun 2016	1022.68 KB	Copy URL
KSM53 Compact Installation Manual EN (REV A)	English	23 Jun 2016	971.32 KB	Copy URL
KSM53 Installationshandbuch DE (REV A)	German	23 Jun 2016	937.47 KB	Copy URL
KSM54 Compact Installation Manual EN (REV A)	English	23 Jun 2016	336.5 KB	Copy URL
KSM54 Installationshandbuch DE (REV A)	German	23 Jun 2016	447.86 KB	Copy URL
KSM55 Compact Installation Manual EN (REV A)	English	23 Jun 2016	803.28 KB	Copy URL
KSM55 Installationshandbuch DE (REV A)	German	23 Jun 2016	1.29 MB	Copy URL

Datasheet
Title	Language(s)	Date	Size
KSM 100-1 CANopen Datenblatt DE (REV A)	German	23 Jun 2016	523.66 KB	Copy URL
KSM 100-1 Datenblatt DE (REV A)	German	23 Jun 2016	654.82 KB	Copy URL
KSM 100-1 EtherCAT Datenblatt DE (REV A)	German	23 Jun 2016	523.88 KB	Copy URL
KSM 100-1 PROFINET Datenblatt DE (REV A)	German	23 Jun 2016	524.01 KB	Copy URL
KSM 100-1 Safety Controller CANopen Datasheet EN (REV A)	English	23 Jun 2016	521.9 KB	Copy URL
KSM 100-1 Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	652.37 KB	Copy URL
KSM 100-1 Safety Controller EtherCAT Datasheet EN (REV A)	English	23 Jun 2016	521.64 KB	Copy URL
KSM 100-1 Safety Controller PROFINET Datasheet EN (REV A)	English	23 Jun 2016	522.11 KB	Copy URL
KSM 100-2 CANopen Datenblatt DE (REV A)	German	23 Jun 2016	556.38 KB	Copy URL
KSM 100-2 Datenblatt DE (REV A)	German	23 Jun 2016	755.33 KB	Copy URL
KSM 100-2 EtherCAT Datenblatt DE (REV A)	German	23 Jun 2016	554.8 KB	Copy URL
KSM 100-2 PROFINET Datenblatt DE (REV A)	German	23 Jun 2016	556.01 KB	Copy URL
KSM 100-2 Safety Controller CANopen Datasheet EN (REV A)	English	23 Jun 2016	554.54 KB	Copy URL
KSM 100-2 Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	752.52 KB	Copy URL
KSM 100-2 Safety Controller EtherCAT Datasheet EN (REV A)	English	23 Jun 2016	555.05 KB	Copy URL
KSM 100-2 Safety Controller PROFINET Datasheet EN (REV A)	English	23 Jun 2016	553.57 KB	Copy URL
KSM 100-4 CANopen Datenblatt DE (REV A)	German	23 Jun 2016	582.84 KB	Copy URL
KSM 100-4 Datenblatt DE (REV A)	German	23 Jun 2016	807.76 KB	Copy URL
KSM 100-4 EtherCAT Datenblatt DE (REV A)	German	23 Jun 2016	583.23 KB	Copy URL
KSM 100-4 PROFINET Datenblatt DE (REV A)	German	23 Jun 2016	582.84 KB	Copy URL
KSM 100-4 Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	805.46 KB	Copy URL
KSM 100-4 Safety Controller EtherCAT Datasheet EN (REV A)	English	23 Jun 2016	583.04 KB	Copy URL
KSM 100-4 Safety Controller PROFINET Datasheet EN (REV A)	English	23 Jun 2016	581.59 KB	Copy URL
KSM 100-4 Safety Datasheet CANopen Datasheet EN (REV A)	English	23 Jun 2016	583.01 KB	Copy URL
KSM 121 Datenblatt DE (REV A)	German	23 Jun 2016	576.08 KB	Copy URL
KSM 121 Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	574.34 KB	Copy URL
KSM 121-2 Datenblatt DE (REV A)	German	23 Jun 2016	623.34 KB	Copy URL
KSM 121-2 Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	620.52 KB	Copy URL
KSM 122 Datenblatt DE (REV A)	German	23 Jun 2016	622.58 KB	Copy URL
KSM 122 Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	617.68 KB	Copy URL
KSM 122-2 Datenblatt DE (REV A)	German	23 Jun 2016	728.13 KB	Copy URL
KSM 122-2 Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	725.63 KB	Copy URL
KSM 122A Datenblatt DE (REV A)	German	23 Jun 2016	625.28 KB	Copy URL
KSM 122A Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	623.37 KB	Copy URL
KSM 131 Datenblatt DE (REV A)	German	23 Jun 2016	608.41 KB	Copy URL
KSM 131 Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	606.53 KB	Copy URL
KSM 131R Datenblatt DE (REV A)	German	23 Jun 2016	690.7 KB	Copy URL
KSM 131R Safety Controller Datasheet EN (REV A)	English	23 Jun 2016	688.09 KB	Copy URL
KSM Safety Controller Datasheet	English		385.37 KB	Copy URL

Catalog
Title	Language(s)	Date	Size
Kollmorgen Automation and Motion Control	English	14 Jun 2021	15.53 MB	Copy URL
Kollmorgen Automation Solutions and Product Catalog EMEA	English	21 Jun 2018	15.99 MB	Copy URL

Brochure
Title	Language(s)	Date	Size
Kollmorgen KSM Safety Module Flyer	English	06 Feb 2014	816.21 KB	Copy URL
Kollmorgen Motion Safety Brochure	English	02 Oct 2015	2.16 MB	Copy URL

Drawings
Title	Language(s)	Date
KDM131R	English	21 Jun 2016	Copy URL
KSM-12	English	21 Jun 2016	Copy URL
KSM100-1	English	21 Jun 2016	Copy URL
KSM100-2	English	21 Jun 2016	Copy URL
KSM100-4	English	21 Jun 2016	Copy URL
KSM11	English	21 Jun 2016	Copy URL
KSM11-2	English	21 Jun 2016	Copy URL
KSM12-2	English	21 Jun 2016	Copy URL
KSM121	English	21 Jun 2016	Copy URL
KSM121-2	English	21 Jun 2016	Copy URL
KSM122	English	21 Jun 2016	Copy URL
KSM122-2	English	22 Jun 2016	Copy URL
KSM122A	English	22 Jun 2016	Copy URL
KSM131	English	21 Jun 2016	Copy URL
KSM31	English	21 Jun 2016	Copy URL
KSM31R	English	21 Jun 2016	Copy URL
KSM33	English	21 Jun 2016	Copy URL
KSM45	English	21 Jun 2016	Copy URL
KSM53	English	21 Jun 2016	Copy URL
KSM54	English	21 Jun 2016	Copy URL
KSM55	English	21 Jun 2016	Copy URL

Article
Trade Compliance	Kollmorgen is committed to sourcing components and materials from companies that share our values regarding respect for human rights, integrity and environmental responsibility. Kollmorgen is also...
Sample Set-Up of an AKD2G with KSM 12-2, Safe Stop	This sample configuration illustrates setting up a dual-axis AKD2G with dual-axis KSM 12-2 Safety PLC. Safety Engineering is not so simple that one design will meet SIL2 for all applications...
Driving STO Inputs from Relays	[toc] Implementation of STO Inputs There are two types of STO input in common use today: DC-DC Type: isolated STO input based on using a DC-DC converter to power the date driver circuitry...
AKD Functional Safety Safe Stop using KSM SafetyPLC	[toc] Hardware Drive: AKD-B00306-NBAN-0000 Safety PLC: KSM 11-2 PN: 0000119 Cable: KSM CABLE SINCOS Motor: AKM22C-ACGNAB-00 Cable: VF-SB447N-01 Cable: VP-508CFAN-03 Software:...
Normen und Richtlinien	[toc] Allgemeines Struktur des Normenwesens am Beispiel der EN ISO 12100 Europäische Richtlinien New Legislative Framework Blue Guide: Leitfaden für die Umsetzung der...

Pages

Title	Language(s)	Date	Size
Blue Guide	English, German	29 Jun 2022		Copy URL
KSM Compact TUV Certificate	English, German	30 Sep 2020	693.56 KB	Copy URL
KSM Declaration of Conformity	English	07 Oct 2020	727.5 KB	Copy URL
KSM EG-Konformitätserklärung	German	07 Oct 2020	747.39 KB	Copy URL
KSM Modular TUV Certificate	English, German	01 Aug 2017	513.51 KB	Copy URL
