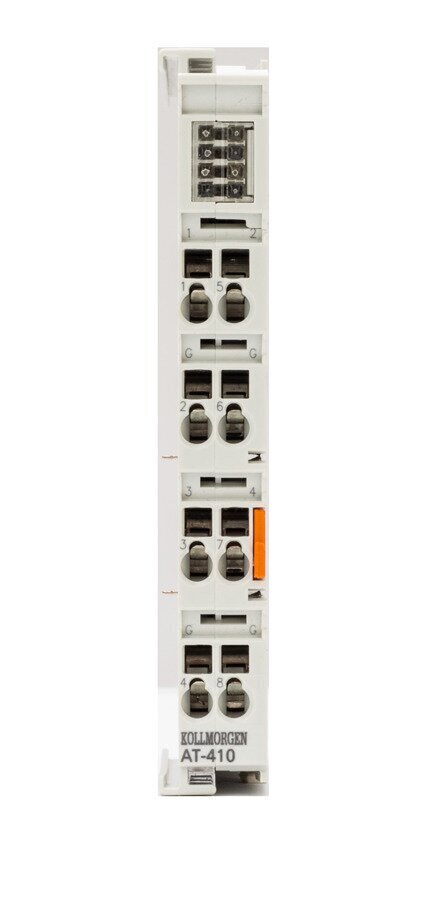

AKT2G-410

4 Ch Analog Outputs 0-10 and -10 to +10 Vdc

These 4 Channel  Analog Outputs are available in a 0…10 V, 12 bit, 1-wire system version and a -10 V…+10 V, 12 bit, 4 x 2-wire system.

Global
Product available worldwide

Specifications

Technical Data AKT2G-AT-410-000 AKT2G-AT-425-000

Number of outputs

4

Power supply

24 V DC via the power contacts

Signal voltage

0..10 V

-10 ..+10 V

Load

> 5 kΩ (short-circuit-proof)

Measuring error

< ± 0.1% (at 0 °C ... +55 °C, relative to the full scale value)

< ± 0.2% (when the extended temperature range is used)

Resolution

12 bit

Conversion time

~ 250 µs

Power supply for electronics

via the E-bus

Distributed Clocks

yes

Current consumption via Ebus

typ. 140 mA

Electrical isolation

500 V (E-bus/field voltage)

Bit width in process image

4 x 16-bit AO output

Configuration

via TwinCAT System Manager

Weight

approx. 60 g

Permissible ambient temperature range during operation

-25 °C ... +60 °C

(extended temperature range)

Permissible ambient temperature range during storage

-40 °C ... +85 °C

Permissible relative humidity

95%, no condensation

Dimensions (W x H x D)

approx. 15 mm x 100 mm x 70 mm (width aligned: 12 mm)

Mounting

on 35 mm mounting rail conforms to EN 60715

Vibration/shock resistance

conforms to EN 60068-2-6 / EN 60068-2-27,

see also installation instructions for enhanced mechanical load capacity

EMC immunity/emission

conforms to EN 61000-6-2 / EN 61000-6-4

Protection class

IP20

Installation position

variable

Approval

CE, ATEX, cULus

Media & Downloads

Title File Language Date Share URL
AKT2G I/O Manual EN English
Share URL /sites/default/files/public_downloads/AKT2G_IO.pdf
Title File Language Date Share URL
AKT2G-SDI-004-000 TUV Certification English
Share URL /sites/default/files/public_downloads/AKT2G-SDI-004%20TUV%20Certitication%20Rev.00.pdf
AKT2G-SDO-004-000 TUV Certification English
Share URL /sites/default/files/public_downloads/AKT2G-SDO-004%20TUV%20Certitication%20Rev.00.pdf
Kollmorgen EU Declaration of Conformity AKT2G (DE) German
Share URL /sites/default/files/public_downloads/ce_AKT2G%20IO_d.pdf
Kollmorgen EU Declaration of Conformity AKT2G (DE) English
Share URL /sites/default/files/public_downloads/ce_AKT2G%20IO_e.pdf
