Power Connector S300 - S700




Used with

  • S300, voltage type 230V
  • S400

Used with

  • S300, voltage type 400/480V

Used with

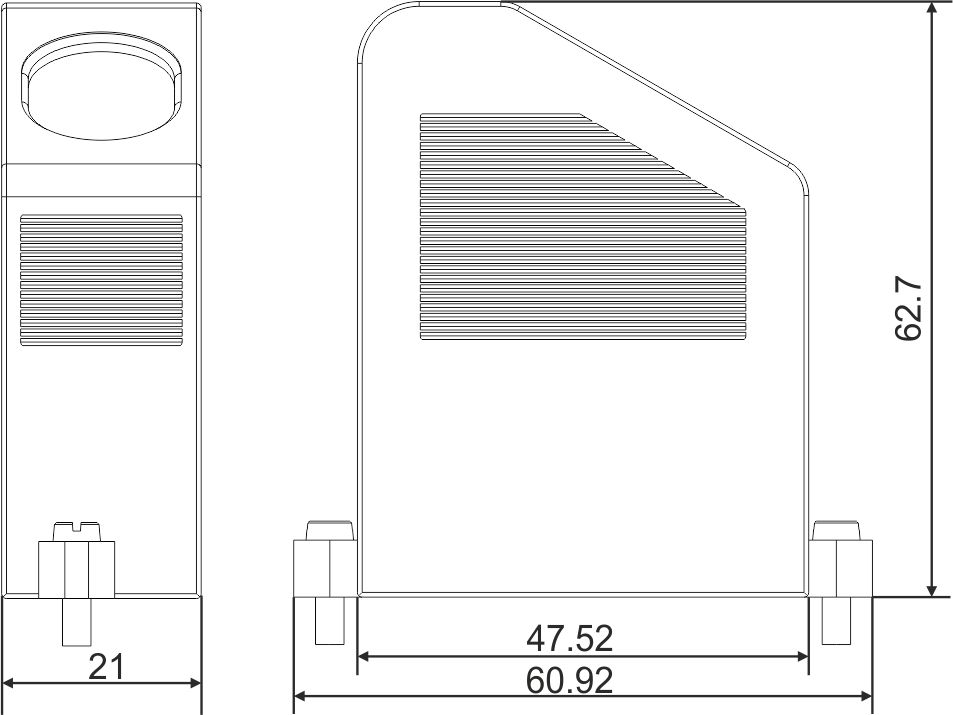

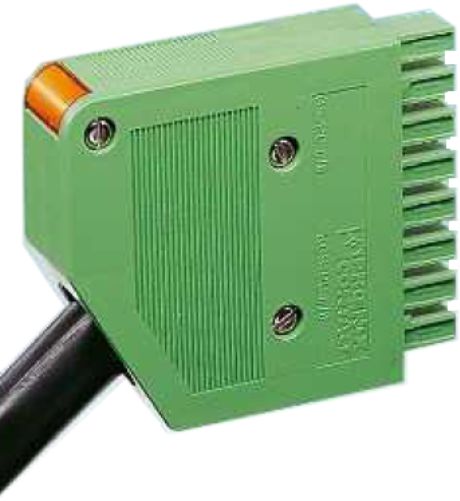

  • S601-620


Used with

  • S701 ... S724

Technical Data

  S300 230V type, S400 S300 400V type S601-620 S701...S724
Pins 6 6 6 6
Housing - - yes -
Pitch 5.08 mm 7.62 mm 7.62 mm 7.62 mm
Protection class IP 20 IP 20 IP 20 IP 20
Max. Current 12 A 20 A 20 A 41 A
Max. Voltage 630 V 1000 V 1000 V 1000 V
Test Voltage 6 kV 6 kV 6 kV 8 kV
Inflammability Class (UL 94) V0 V0 V0 V0
Stripping length 7 mm 7 mm 7 mm 10 mm
Wire cross section AWG 14,
2.5 mm²		 AWG 12,
4 mm²		 AWG 12,
4 mm2		 AWG 10,
6 mm²
