Fan Cartridge for EtherCAT and Bus Terminals

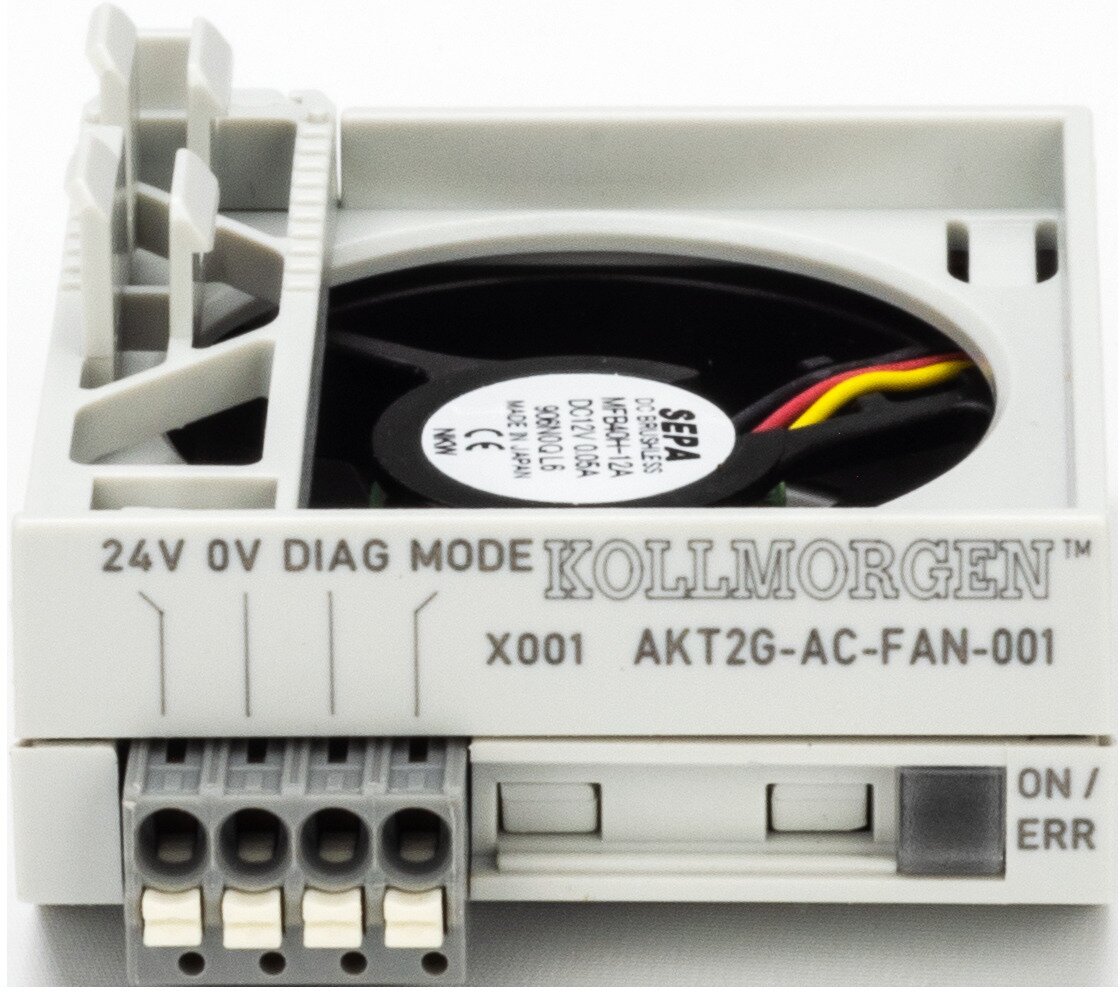

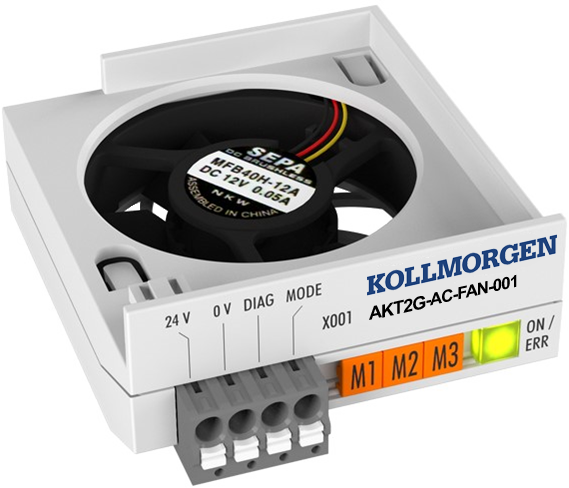

The AKT2G-AC-FAN-001 fan cartridge is used for forced ventilation within the terminal housing and ensures better heat dissipation from the housing. It extends the thermal operating range of EtherCAT Terminals and offers a wide range of new application options. The cartridge is installed on the underside of the terminal segment and covers a width of four standard terminals (4 x 12 mm). It consists of the fan, an installation plate, a terminal strip (24 V DC, 0 V DC, diag, mode) and a bracket for attachment on different terminal housings.
Specifications
| Technical Data | AKT2G-AC-FAN-001 |
|---|---|
| Number of channels | 1 fan |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| Current consumption (at 24 V operating voltage) | ca. 45 mA |
| Operating modes | temperature-controlled, full speed, frequency controlled |
| Rotational frequency fan | adjustable in 9 steps via frequency (1…9 Hz), max. ~5,500 rpm |
| Diagnostics, max. output current | fan fault, 15 mA |
| Life span | MTBF typ. = 280,000 h @ 20°C |
| Special features | increased performance and extended temperature range for various terminals |
| Dimensions (W x H x D) | 47 mm x 22 mm x 55 mm |
| Weight | 32 g (incl. bracket) |
| Operating / storage temperature | -25…+70°C/-40…+85°C |
| Relative humidity | 95 %, no condensation |
| Vibration / shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity / emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class / installation pos. | IP 20/see Mounting and Demounting |
| Approval | CE, cULus |
