KAS Safety System with SCU Safety Controller

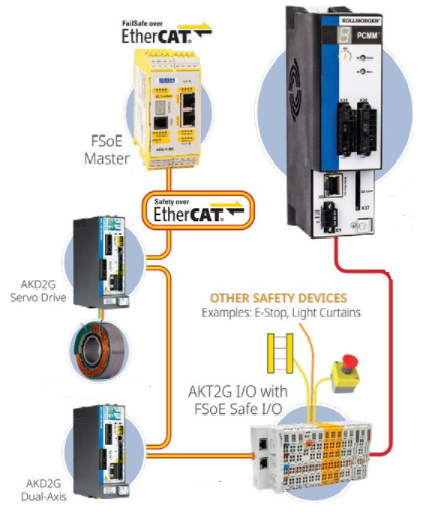

This application note details creating and running a KAS Safety application with:

  • PCMM Machine/Motion Controller
  • SafePLC2 Safety Controller
  • AKD2G Servo Drive with FS3 safety card
  • AKT2G Safety I/O
  • FSOE Safety
