Expansion Card PROFIBUS-DP

Usable with S300, S700

General

This expansion card can be used with S300 and S700.
The PROFIBUS Bus expansion card has two 9-pin SubD sockets wired in parallel.
Function blocs for S7 PLC from Siemens and manufacturer independant PLCs are available from the Downloads page.

The command OPTION delivers a code for the built-in expansion card.

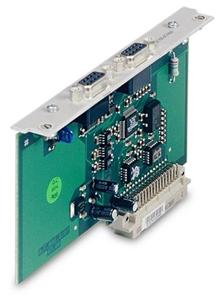

Expansion card

Front cover

Setup

Station address and Baud Rate

• keypad on the front panel of the servo amplifier
• setup software: screen page “CAN / Fieldbus"
• serial interface with a sequence of ASCII commands:
  ADDR => SAVE => COLDSTART (with nn = address)

Documentation

Data sheets for the expansion card can be found via File Selector, set document type filter to "Add On Document".
