Downloads >Hybrid connector motor M23
 |
|

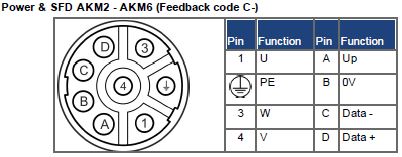

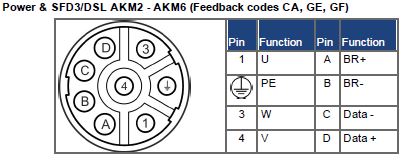

Pinout
Technical Data
| Power | Signal | |
| Pins | 4 | 4 |
| Temperature range | -20 to 130 °C | |
| Protection class | IP 66/67 if plugged | |
| Max. current | 30 A | 10A |
| Max. voltage | 630 V (AC, DC) | 250 V (AC, DC) |
| Test Voltage | 6000 V | 2500 V |
| max. wire cross section | 4 mm² | 1.5 mm² |
| Mating cycles | > 50 | |
| Pollution class | 3 (to EN 61948) | |
| Overvoltage category | III (to EN 61948) | |
| Max. operating height | 2000m (to EN 61948) | |
