Resolver+SFD connector Washdown Motor

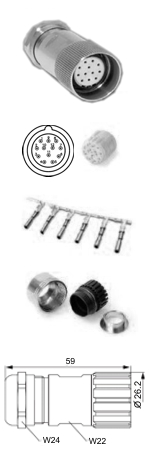

  1. View
  2. Contact socket
  3. Contacts
  4. Lamella Clamp
  5. Dimensions

Pinout

Resolver (Feedback code R-)

SFD (Feedback code C-)

Technical Data

Pins 12
Housing Stainless Steel V4A (AISI 316)
Seals Viton (FPM)
Temperature range -40 to 125 °C
Protection class IP 67 / IP 69K if plugged
Max. current 10 A
Max. voltage 160 V (AC, DC)
Test Voltage 2500 V
Contact resistance < 5 Ohm
Mating cycles > 1000
Pollution class 3 (to EN 61948)
Overvoltage category III (to EN 61948)
Max. operating height 2000m (to EN 61948)
Cable diameter max. 10 mm
Wire cross section  0.2 to 0.52 mm²
