Downloads >AKD-C Cable Lengths

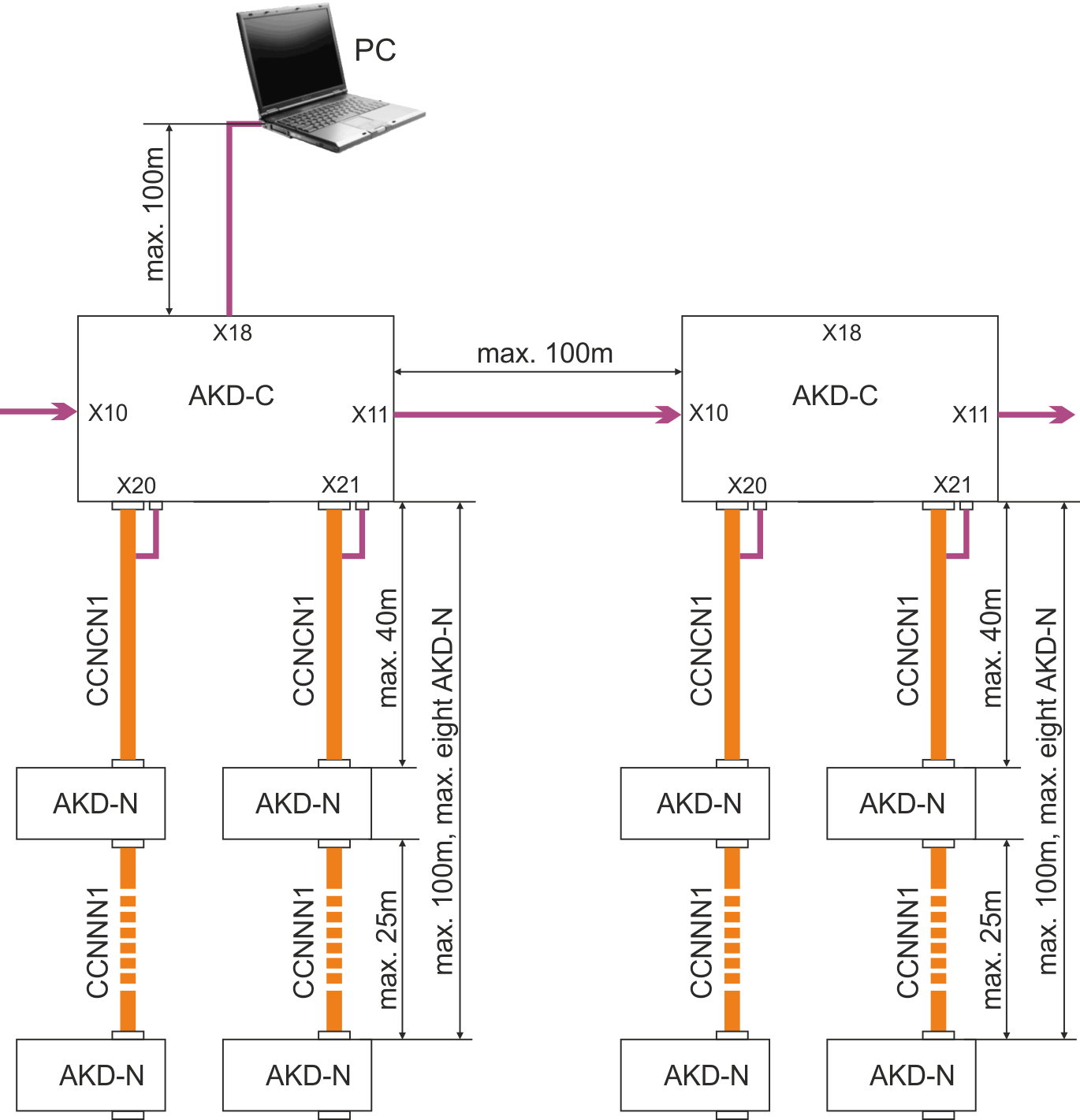

AKD-C offers two separate strings to connect up to 8 AKD-N to each of them. Maximum total cable length for each string is 100 m.
| Cable type | Cable Usage | Available Length (m) | Maximum Length (m) |
|---|---|---|---|
| CCNCN1 | X20/X21, AKD-C to AKD-N, hybrid | 3, 6, 12, 24, 36 | 40 |
| Ethernet Cable | X10, X11, AKD-C to AKD-C | on request | 100 |
| Ethernet Cable | X10, X11, AKD-C to personal computer or switch | on request | 100 |
| single line | X13 + 24 V/GND, X15 Digital I/Os, X16 STO Signals | 30 | |
