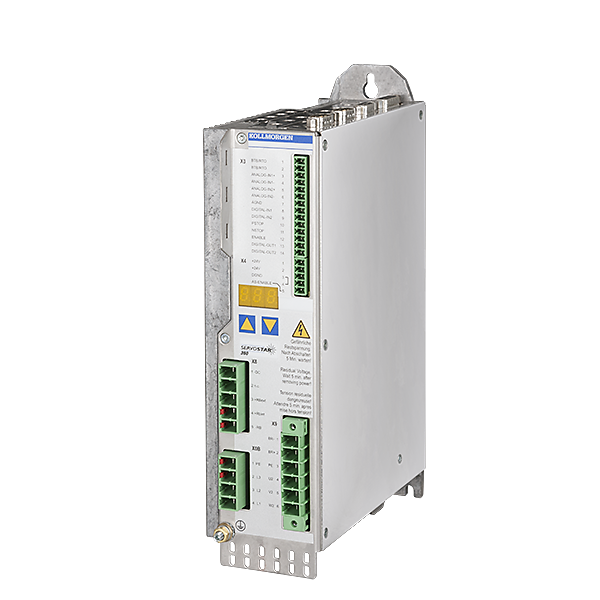

S300 Servoverstärker
Die digitalen Servoverstärker der S300-Baureihe sind kompakte und einfach zu bedienende Verstärker, die größte Flexibilität in der Projektierung ermöglichen. Die kleine Baugröße spart Platz im Schaltschrank und die extreme Anschlussvariabilität reduziert die erforderliche Typenvielfalt.
Das Produkt ist weltweit verfügbar
Merkmale
- CE, UL, cUL, EAC
- Betrieb direkt am geerdeten 3-phasigen Netz, 110V ... 480V, 50 Hz
- Ausgangsstrom 1.5…10A
- Mit integriertem Netzfilter, alle Schirmanschlüsse direkt am Verstärker
- Bei Einsatz der Servoverstärker im Wohnbereich kann dieses Produkt hochfrequente Störungen verursachen. Dort müssen zusätzliche Filtermaßnahmen durch den Anwender getroffen werden.
- DC-Zwischenkreise parallelschaltfähig
- Voll programmierbar über RS232
- Inbetriebnahme mit PC über Kollmorgen Setup Software
- 230V Typ passt in 200mm Schaltschränke
- Integrierte Schnittstellen für Schrittmotor-Steuerungen, Master-Slave Betrieb, Elektr. Getriebe
- Integrierter Lageregler mit Speicher für 300 Fahrsätze. Intelligentes Positionieren:
- Geschwindigkeitsprofile,
- Druckmarkensteuerung,
- Ruckbegrenzung,
- verkettete Fahraufträge,
- Absolut- und Relativfahrten,
- verschiedene Referenzfahrtarten - Encoder-Emulation wählbar ROD426- kompatibel (dez./bin.) oder SSI (Gray/binär)

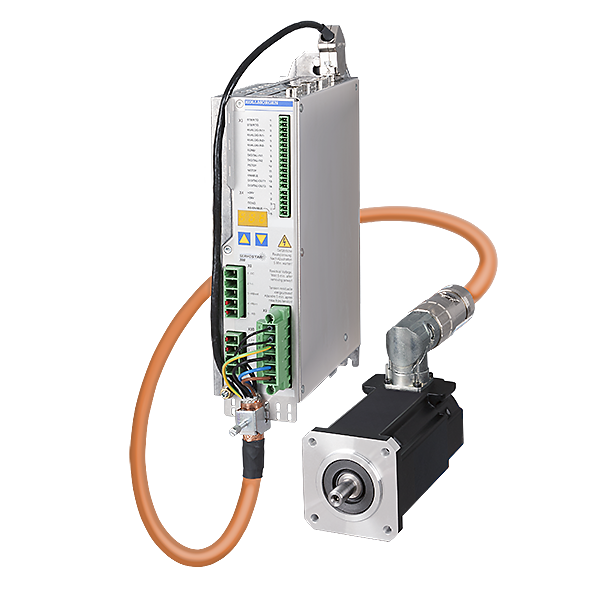

- Multi Feedback System:
- Einkabel-Feedback mit SFD3 und Hiperface DSL
- Resolver bis zu 36-polig
- ComCoder
- Inkremental oder Sinus Encoder mit Hall
- Sinus Encoder mit EnDat/HIPERFACE/BISS
- Sinus Encoder ohne Datenspur
- Inkremental Encoder AquadB
Spezifikation
| Nenndaten | DIM | SERVOSTAR® 300 | |||||
|---|---|---|---|---|---|---|---|
| 303 | 306* | 310* | 341 | 343* | 346* | ||
| Nennversorgungsspannung | v~ | 3 x 110 v-10% ... 230 v+10% | 3 x 208 v-10% ... 480 v+10% | ||||
| Nennleistung für S1-Betrieb | kva | 1.2 | 2.4 | 4 | 1.4 | 3.3 | 5 |
| Nenn-DC-Zwischenkreisspannung | v= | 145-360 | 560–675 | ||||
| Nennausgangsstrom (Effektivwert ± 3 %)/Spitzenausgangsstrom (max. 5 s, ± 3 %) | |||||||
| Bei 1 x 110 V Netzspannung** | Aeff | 3 / 5 | 3 / 5 | 3 / 5 | |||
| Bei 1 x 230 V/240 V Netzspannung | Aeff | 3 / 9 | 4 / 9 | 4 / 9 | |||
| Bei 3 x 115 V Netzspannung | Aeff | 3.5 / 9 | 8 / 15 | 10 / 20 | |||
| Bei 3 x 230 V Netzspannung | Aeff | 3 / 9 | 6 / 15 | 10 / 20 | 2 / 4.5 | 5 / 7.5 | 6 / 12 |
| Bei 3 x 400 V Netzspannung | Aeff | - | - | - | 1.5 / 4.5 | 4 / 7.5 | 6 / 12 |
| Bei 3 x 480 V Netzspannung | Aeff | - | - | - | 1.5 / 4.5 | 3 / 7.5 | 6 / 12 |
| Dauerleistung Bremsschaltung (RBint) | W | 20 | 50 | 50 | 20 | 50 | 50 |
| Dauerleistung Bremsschaltung (RBext) max. | kW | 0.3 | 0.3 | 0.3 | 0.3 | 1.0 | 1.0 |
| Spitzenleistung Bremsschaltung (RBext) max. | kW | 0,75 bis 3 | 0,75 bis 3 | 0,75 bis 3 | 2,1 bis 9 | 2,1 bis 9 | 2,1 bis 9 |
| *mit Lüfter/**Leistungsbegrenzung | |||||||
