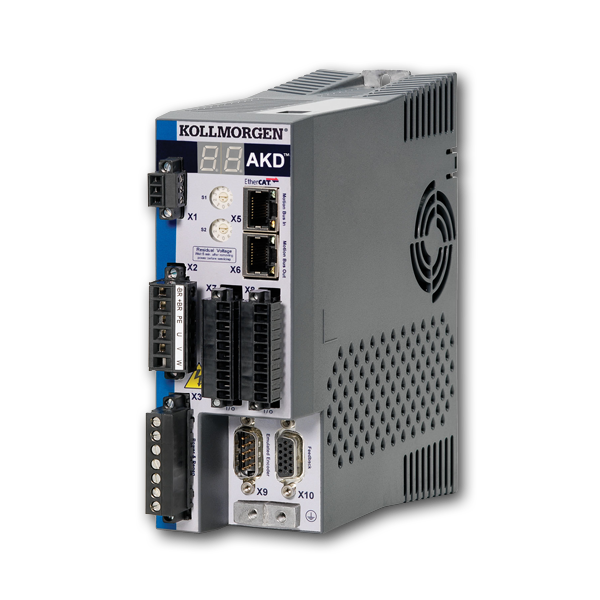

Servoregler für besseren Antrieb: AKD® Servodrive
Die Servoregler der AKD-Serie lassen sich dank der Ethernet basierten Kommunikation schnell und einfach in jede Applikation integrieren. Kollmorgen hat die Servo Ansteuerungen mit einer Reihe von technischen Raffinessen und offenen Schnittstellen versehen, mit denen sich die Servoregler Plug and Play in Betrieb nehmen lassen. In puncto Antriebsleistung bieten die Servoregler ein Höchstmaß an Dynamik, Regelgüte und Leistung innerhalb ihres sehr kleinen Gerätevolumens. Damit werden die AKD Servo Drive zu kraftvollen Raumwundern, die den Aufbau platzsparender Schaltschränke unterstützen. Richtig rund wird der Antrieb, wenn die Servoverstärker mit weiteren Achskomponenten von Kollmorgen zu einer effizienten Lösung kombiniert werden. Dann erhöhen sich Lebensdauer, Geschwindigkeit und Produktivität von Maschinen um bis zu 50%.
Das Produkt ist weltweit verfügbar
Schnelle Inbetriebnahme und Optimierung
Verwenden Sie die schnelle Autotuning-Funktion unserer WorkBench-Software, Multifunktions-Bode-Diagramme für optimierte Leistung sowie Ein-Klick-Erfassung und Teilen von Programmdiagrammen und Parametereinstellungen, um Ihre Maschine schnell einsatz- und betriebsbereit zu machen.
Merkmale
Merkmale
- Kann für Ein- und Mehrachsensysteme mit hoher Leistung in unserer innovative Automation Suite™ von Kollmorgen eingebettet werden
- Graphische WorkBench-Benutzeroberfläche von Kollmorgen für einfache Einrichtung und Programmierung
- Plug & Play-kompatibel zu den Kollmorgen Motoren
- Optisch isolierte E/A mit E/A-Steckverbindern mit Anschlussplatinen
- Höchste Bandbreite bei den Drehmoment- und Drehzahlregelkreisen Mit die schnellste digitale Stromregelkreise auf dem Markt
- Assistentenbasiertes Vollfrequenz-Autotuning
- Schnelle Datenerfassung durch PC-kompatiblen Ethernet Service-Kanal.
- Rückführung der Leistung in Echtzeit.
- Rückführeinheiten: Smart Feedback Devices (SFD), EnDat 2.2 und 2.1, BiSS, analoger Sinus-Cosinus-Geber, Inkrementalgeber, HIPERFACE® und Resolver
- Vielfältige Bussysteme zur Systemoptimierung wie EtherCAT®, EtherNet/IP, PROFINET RT, Modbus/TCP, CANopen® und SynqNet™.
- SIL-Zulassung, Überspannungs-, Stromzufuhr- und Temperaturüberwachung für zusätzliche Systemstabilität.
- Verfügbare optionale Karten, um E/A zu erhöhen, NVRAM hinzuzufügen und die Verarbeitungsleistung zu boosten
Vorteile
- Benutzerfreundlich, mit Plug-and-Play-Motoreinrichtung, erweiterter Autotuning-Funktion und intuitiver graphischer Benutzeroberfläche für die Programmierung und Fehlersuche
- Der schnellste Antrieb in seiner Klasse für äußerst präzisen Antrieb und höchste Durchsatzleistung
- Vielseitig einsetzbar, mit Unterstützung zahlreicher Ethernet-Konnektivitätsoptionen, Rückführeinheiten, Buswahlmöglichkeiten und zusätzlichen Optionen
- Robustes, kompaktes Design mit Spitzenleistung mit branchenführender Leistungsdichte
- Erhältlich in unterschiedlichsten Leistungsbereichen, um praktisch allen Anwendungen gerecht zu werden
Spezifikation
| Servoregelkreis | Aktualisierungsrate | Bandbreite (max.) |
|---|---|---|
| Stromregelkreis | 1,5 MHz, (0,67 μs) | 4 kHz |
| Drehzahlregelkreis | 16 kHz, (62,5 μs) | 1 kHz |
| Positionsregelkreis | 4 kHz, (250 μs) | 250 Hz |
| Ein-/Ausgänge | ||
| Digitale Eingangsereignisse | 16 kHz, (62,5 μs) Aktualisierungsrate | |
| Encoderausgang oder Hilfs-Encoderausgang | 2,5 MHz Maximale Netzfrequenz | |
| Rückführung | Smart Feedback Device (SFD), EnDat2.2, EnDat2.1, BiSS, analoger Sin-Cos-Encoder, Inkrementalgeber, Hiperface ® und Resolver | |
| Logikversorgung | 24 V DC | |
| Basisverstärker | Mit I/O-Erweiterung | |
| Digitaler Eingang (24 V DC) | 8 (1 Reglerfreigabe) | 20 (1 Reglerfreigabe) |
| Digitaler Ausgang (24 V DC) | 3 (1 Fehlermelderelais) | 13 (1 Fehlermelderelais) |
| Analogeingang (+/- 10 V DC, 16-Bit) | 1 | 2 |
| Analogausgang (+/- 10 V DC, 16-Bit) | 1 | 2 |
| Programmierbare Eingänge | 7 | 19 |
| Programmierbare Ausgänge | 2 | 12 |
| Sink/Source-Ein-/Ausgänge | Ja | Ja |
Fragen Sie einen Experten
Der Support von Kollmorgen unterstützt Sie dabei, e für Ihre Zwecke optimal abgestimmte Maschinen zu entwickeln, zu bauen und ebenso zuverlässig wie produktiv am Laufen zu halten – jederzeit und weltweit. Unsere Co-Engineering-Experten erarbeiten gemeinsam mit Ihnen die perfekte Lösung für Ihren Antriebsbedarf.
Media & Downloads
| Title | File Language | Date | Share URL |
|---|---|---|---|
| Ajuda do Workbench | Portuguese, Brazil | |
Share URL http://curvegen.kollmorgen.com/webhelp/workbench/Portuguese/ |
| AKD & AKD2G EtherNet/IP with Studio 5000 Manual | English | |
Share URL /sites/default/files/public_downloads/AKD_AKD2G_EIP_Studio_5000.pdf |
| AKD Benutzerhandbuch DE | German | |
Share URL /sites/default/files/public_downloads/AKD%20User%20Guide%20DE%20%28REV%20N%29.pdf |
| AKD Betriebsanleitung DE | German | |
Share URL /sites/default/files/public_downloads/903-200003-01%20AKD_Installation_de%20Rev%20AG_1.pdf |
| AKD CANopen Communications Manual EN | English | |
Share URL /sites/default/files/public_downloads/903-200004-00%20AKD%20CANopen%20Communications%20Manual%20EN%20REV%20Y.pdf |
| AKD CANopen Communications Manual FR | French | |
Share URL /sites/default/files/akd/documentation/fieldbus//AKD%20CANopen%20Manual%20FR%20Rev%20F.pdf |
| AKD CANopen Communications Manual ZH | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/AKD%20CANopen%20Communications%20Manual%20ZH%20%28REV%20T%29.pdf |
| AKD CANopen Kommunikationshandbuch DE | German | |
Share URL /sites/default/files/public_downloads/903-200004-01%20AKD%20CANopen%20Communications%20Manual%20DE%20REV%20Y.pdf |
| AKD CANopen Manuale IT | Italian | |
Share URL /sites/default/files/akd/documentation/fieldbus//AKD%20CANopen%20Manual%20IT%20Rev%20F.pdf |
| AKD Control Box Schematic | English | |
Share URL /sites/default/files/public_downloads/Colors.pdf |
| AKD EtherCat Communications EN Manual | English | |
Share URL /sites/default/files/public_downloads/903-200005-00%20AKD%20EtherCAT%20Communications%20Manual%20EN%20REV%20U.pdf |
| AKD EtherCat Communications Manual FR | French | |
Share URL /sites/default/files/akd/documentation/fieldbus//AKD%20EtherCat%20Manual%20FR%20Rev%20F.pdf |
| AKD EtherCat Kommunikationshandbuch DE | German | |
Share URL /sites/default/files/public_downloads/903-200005-01%20AKD%20EtherCAT%20Communications%20Manual%20DE%20REV%20U.pdf |
| AKD EtherCat Manuale IT | Italian | |
Share URL /sites/default/files/akd/documentation/fieldbus//AKD%20EtherCat%20Manual%20IT%20Rev%20F.pdf |
| AKD EtherNet IP Communications Manual EN | English | |
Share URL /sites/default/files/akd/documentation/fieldbus//AKD%20EtherNet%20IP%20Manual%20EN%20Rev%20C.pdf |
| AKD EtherNetIP Communications Manual EN | English | |
Share URL /sites/default/files/public_downloads/AKD%20EtherNetIP%20Communications%20Manual%20EN%20%28REV%20H%29.pdf |
| AKD EtherNetIP with RSLogix Communications Manual EN | English | |
Share URL /sites/default/files/public_downloads/903-200009-00%20AKD%20EthernetIP%20with%20RSLogix%20Communications%20Manual%20EN%20REV%20K.pdf |
| AKD Fault Card EN | English | |
Share URL /sites/default/files/public_downloads/903-200002-00%20AKD%20Fault%20Card%20EN%20REV%20U.pdf |
| AKD Fault Card PT | Portuguese, Brazil | |
Share URL /sites/default/files/public_downloads/903-200002-09%20AKD%20Fault%20Card%20PT%20REV%20U.pdf |
| AKD Fault Card ZH | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/903-200002-06%20AKD%20Fault%20Card%20ZH%20REV%20M.pdf |
| AKD Guía rápida ES | Spanish | |
Share URL /sites/default/files/akd/documentation/user%20guide//AKD%20User%20Guide%20ES%20Rev%20G.pdf |
| AKD Guida rapida IT | Italian | |
Share URL /sites/default/files/akd/documentation/installation//AKD%20Quick%20Start%20IT%20Rev%20A.pdf |
| AKD Guide de démarrage rapide FR | French | |
Share URL /sites/default/files/akd/documentation/installation//AKD%20Quick%20Start%20FR%20Rev%20A.pdf |
| AKD HMI Modbus Communications Manual EN | English | |
Share URL /sites/default/files/public_downloads/AKD%20HMI%20Modbus%20Communications%20Manual%20EN%20%28REV%20A%29.pdf |
| AKD Installation Manual EN | English | |
Share URL /sites/default/files/public_downloads/903-200003-00%20AKD_Installation_en%20Rev%20AG.pdf |
| AKD Installation Manual JA | Japanese | |
Share URL /sites/default/files/akd/akd%20basic/akd%20pdmm/documentation/1.12//AKD%20Installation%20Guide%20JA%20%28REV%20K%29.pdf |
| AKD Installation Manual RU | Russian | |
Share URL /sites/default/files/public_downloads/903-200003-04%20AKD_Installation_ru%20Rev%20AG.pdf |
| AKD Kurzanleitung DE | German | |
Share URL /sites/default/files/akd/documentation/installation//AKD%20Quick%20Start%20DE%20Rev%20A.pdf |
| AKD Manual de instalación ES | Spanish | |
Share URL /sites/default/files/akd/documentation/installation//AKD%20Installation%20Guide%20ES%20Rev%20J.pdf |
| AKD manual de instruções PT | Portuguese, Brazil | |
Share URL /sites/default/files/public_downloads/903-200003-09%20AKD_Installation_pt%20Rev%20AG.pdf |
| AKD Manuale di installazione IT | Italian | |
Share URL /sites/default/files/public_downloads/903-200003-03%20AKD_Installation_it%20Rev%20AG.pdf |
| AKD Manuel d’Instructions FR | French | |
Share URL /sites/default/files/public_downloads/903-200003-02%20AKD_Installation_fr%20Rev%20AG.pdf |
| AKD ProfiNet Communications Manual EN | English | |
Share URL /sites/default/files/public_downloads/AKD%20ProfiNet%20Communications%20Manual%20EN%20%28REV%20P%29.pdf |
| AKD ProfiNet Kommunikationshandbuch DE | German | |
Share URL /sites/default/files/public_downloads/AKD%20ProfiNet%20Communications%20Manual%20DE%20%28REV%20P%29.pdf |
| AKD Profinet RT Kommunikationshandbuch DE | German | |
Share URL /sites/default/files/akd/documentation/fieldbus//AKD%20ProfiNet%20Manual%20DE%20Rev%20C.pdf |
| AKD Quick Start EN | English | |
Share URL /sites/default/files/public_downloads/AKD%20Quick%20Start%20EN%20%28REV%20F%29.pdf |
| AKD Quick Start JA | Japanese | |
Share URL /sites/default/files/akd/documentation/installation//AKD%20Quick%20Start%20JA%20Rev%20A.pdf |
| AKD Quick Start KO | Korean | |
Share URL /sites/default/files/akd/documentation/installation//AKD%20Quick%20Start%20KO%20Rev%20A.pdf |
| AKD Quick Start PT | Portuguese, Brazil | |
Share URL /sites/default/files/public_downloads/AKD%20Quick%20Start%20BPT%20%28REV%20F%29.pdf |
| AKD Quick Start ZH | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/AKD%20Quick%20Start%20CN%20%28REV%20E%29.pdf |
| AKD Safety Notes EN DE FR IT PT ES RU ZH | Chinese, Simplified, English, French, German, Italian, Portuguese, Brazil, Russian, Spanish | |
Share URL /sites/default/files/public_downloads/903-200026-99%20AKD-BPTM-Safety_Notes_en-de-fr-it-pt-es-ru-zh%20Rev%20F_0.pdf |
| AKD Sercos Communications Manual EN | English | |
Share URL /sites/default/files/public_downloads/AKD%20Sercos%20Communications%20Manual%20EN%20%28REV%20D%29.pdf |
| AKD SynqNet Communications Manual EN | English | |
Share URL /sites/default/files/public_downloads/903-200011-00%20AKD%20SynqNet%20Communications%20Manual%20EN%20REV%20F.pdf |
| AKD Typenschlüssel | German | |
Share URL /sites/default/files/public_downloads/akd-bptm_d.pdf |
| AKD User Guide EN | English | |
Share URL /sites/default/files/public_downloads/AKD%20User%20Guide%20EN%20%28REV%20N%29.pdf |
| AKD User Guide PT | Portuguese, Brazil | |
Share URL /sites/default/files/akd/documentation/user%20guide//AKD%20User%20Guide%20PT%20Rev%20G.pdf |
| AKD User Guide ZH | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/AKD%20User%20Guide%20CN%20%28REV%20N%29.pdf |
| AKD WorkBench Online Help/User Guide | English | |
Share URL http://webhelp.kollmorgen.com/AKD/English/Content/WorkBench%20Help/Welcome.htm |
| AKD2G, AKD Accessories Guide Europe EN | English | |
Share URL /sites/default/files/public_downloads/AKD%20Accessories%20Europe_en.pdf |
| AKD2G, AKD and S700 Accessories Guide North America EN | English | |
Share URL /sites/default/files/public_downloads/AKD2G%20AKD%20S700%20Accessories%20Guide%20North%20America%20EN%20REV%20K.pdf |
| AKD2G, AKD Zubehörhandbuch Europa DE | German | |
Share URL /sites/default/files/public_downloads/AKD%20Accessories%20Europe_de.pdf |
| CANopen PDO Setup Objects | English | |
Share URL /sites/default/files/public_downloads/PDO_Objects.pdf |
| CANopen Protocol Quick Reference Guide | English | |
Share URL /sites/default/files/public_downloads/S300_S600_S700_CAN%20Protocol%20Quick%20Reference.pdf |
| KC1 Installation Manual ZH | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/KC1%20Installation%20Manual%20CN%20%28REV%20J%29.pdf |
| Part Number Scheme AKD-B/P/T/M | English | |
Share URL /sites/default/files/public_downloads/AKD-BPTM_Part_Scheme_0.pdf |
| WorkBench Online Hilfe | German | |
Share URL https://webhelp.kollmorgen.com/akd/german/ |
| WorkBench 帮助 | Chinese, Simplified | |
Share URL http://curvegen.kollmorgen.com/webhelp/workbench/Chinese/ |
| Zubehör für digitale Antriebe DE | German | |
Share URL /sites/default/files/public_downloads/Digital%20Drive%20Systems%20Accessories%20Guide%20DE%20%28REV%2012-2014%29.pdf |
| 科尔摩根AKD驱动器安装手册_2020 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%E9%A9%B1%E5%8A%A8%E5%99%A8%E5%AE%89%E8%A3%85%E6%89%8B%E5%86%8C_2020_RevA.pdf |
| AKD-xzzzz-0069 Datasheet DE | German | |
Share URL /sites/default/files/public_downloads/AKD-xzzzz-0069_DataSheet_de.pdf |
| AKD-xzzzz-0069 Datasheet EN | English | |
Share URL /sites/default/files/public_downloads/AKD-xzzzz-0069_DataSheet_en.pdf |
| Kollmorgen 2G Cable Guide | English | |
Share URL /de-de/node/332491 |
| Title | Language | Date | Share URL |
|---|---|---|---|
| Kollmorgen Catalogo Automazione e Motion Control IT | Italian | Share URLview | |
| AKD Components Brochure EN revB | English | Share URLview | |
| AKD Components Brochure it-IT revA | Italian | Share URLview | |
| AKD Scalability Brochure EN RevC | English | Share URLview | |
| Kollmorgen 2G Cable Guide | English | Share URLview | |
| Kollmorgen Automation Solutions and Product Catalog EMEA | English | Share URLview | |
| Kollmorgen Full-line Catalog | English | Share URLview | |
| KOLLMORGEN Motion Control- und Antriebslösungen Katalog CH | German | Share URLview | |
| Kollmorgen otomasyon ve hareket kontrol çözümleri kataloğu TR | Turkish | Share URLview | |
| 科尔摩根AKD伺服驱动器 Flyer | Chinese, Simplified | Share URLview | |
| 科尔摩根AKD伺服驱动器选型手册 | Chinese, Simplified | Share URLview | |
| 科尔摩根锂电行业解决方案 | Chinese, Simplified | Share URLview |
| Title | File Language | Date | Share URL |
|---|---|---|---|
| 1G Performance Feedback Cable (CF-DA0374N-XX-X) REACH SVHC Certification | English | |
Share URL /sites/default/files/public_downloads/CF-DA0374N-XX-X_R209.pdf |
| 1G Performance Feedback Cable (CF-DA0374N-XX-X) RoHS Certification | English | |
Share URL /sites/default/files/public_downloads/CF-DA0374N-XX-X_RoHS10.pdf |
| 1G Performance Power Cable (CP-507CCAN-XX-X) REACH SVHC Certification | English | |
Share URL /sites/default/files/public_downloads/CP-507CCAN-XX-X_R209.pdf |
| 1G Performance Power Cable (CP-507CCAN-XX-X) RoHS Certification | English | |
Share URL /sites/default/files/public_downloads/CP-507CCAN-XX-X_RoHS10.pdf |
| AKD 48 EU-Konformitätserklärung | German | |
Share URL /sites/default/files/public_downloads/ce_akd_48_d.pdf |
| AKD 48A TUV Safety Certificate | English, German | |
Share URL /sites/default/files/public_downloads/Cert_STO_akd_48_e_d.pdf |
| AKD EU RoHS Declaration (RoHS10) | English | |
Share URL /sites/default/files/public_downloads/RoHS10W_%20Standard%20AKD.pdf |
| AKD REACH SVHC Certificate of Compliance | English | |
Share URL /sites/default/files/public_downloads/REACH_223_Standard%20AKD.pdf |
| AKD STO SIL2/PLd | English, German | |
Share URL /sites/default/files/public_downloads/Pruefbericht_STO_AKD.pdf |
| AKD-x04807 EU Declaration of Conformity | English | |
Share URL /sites/default/files/public_downloads/DoC_EU_e_AKD_48A_4.pdf |
| AKD1G Drives UKCA Declaration of Conformity | English | |
Share URL /sites/default/files/public_downloads/DoC_UKCA_AKD.pdf |
| Approvals and Certifications | English, German, Russian | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20Zertifikate-Certificate_de-en.pdf |
| Blue Guide | English, German | |
Share URL https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=OJ%3AC%3A2022%3A247%3ATOC |
| EU-Konformitätserklärung AKD | German | |
Share URL /sites/default/files/public_downloads/AKD%20EU%20Declaration%20of%20Conformity_DE.pdf |
| ISO 9001:2015 Certificate EU (DE) | German | |
Share URL /sites/default/files/public_downloads/KM_RAT_9001_2015%20final_DE.pdf |
| ISO 9001:2015 Certificate EU (EN) | English | |
Share URL /sites/default/files/public_downloads/KM_RAT_9001_2015%20final_EN.pdf |
| ISO 9001:2015 Certificate US | English | |
Share URL /sites/default/files/public_downloads/20220208-111001_9_Kollmorgen_Corporation_FINAL_21-5197.pdf |
| Kollmorgen EU Declaration of Conformity AKD | English | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20EU%20Declaration%20of%20Conformity%20AKD%20REV%2005_05_2020.pdf |
| Kollmorgen WEEE Statement (RoHS, RoHS2 and EU Directive 2012/19) | English, German | |
Share URL https://www.kollmorgen.com/sites/default/files/Kollmorgen%20WEEE_and_RoHS_6_2020.pdf |
| 科尔摩根AKD 48A 驱动器CE认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%2048A%20%E9%A9%B1%E5%8A%A8%E5%99%A8CE%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKD 48A驱动器cUL认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%2048A%E9%A9%B1%E5%8A%A8%E5%99%A8cUL%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKD 48A驱动器RoHS认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%2048A%E9%A9%B1%E5%8A%A8%E5%99%A8RoHS%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKD 48A驱动器UL认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%2048A%E9%A9%B1%E5%8A%A8%E5%99%A8UL%E8%AE%A4%E8%AF%81_0.pdf |
| 科尔摩根AKD驱动器CE认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%E9%A9%B1%E5%8A%A8%E5%99%A8CE%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKD驱动器cUL认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%E9%A9%B1%E5%8A%A8%E5%99%A8cUL%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKD驱动器RoHS认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%E9%A9%B1%E5%8A%A8%E5%99%A8RoHS%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKD驱动器STO安全认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%E9%A9%B1%E5%8A%A8%E5%99%A8STO%E5%AE%89%E5%85%A8%E8%AE%A4%E8%AF%81.pdf |
| 科尔摩根AKD驱动器UL认证 | Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/%E7%A7%91%E5%B0%94%E6%91%A9%E6%A0%B9AKD%E9%A9%B1%E5%8A%A8%E5%99%A8UL%E8%AE%A4%E8%AF%81.pdf |
These 3D models are intended to guide your design activities and may be used as reference information. Be sure to consult a Kollmorgen expert to ensure you have the most current and accurate information for critical aspects of design work.
| Title | File Language | Date | Share URL |
|---|---|---|---|
| 12 AMP Power Cable | English | |
Share URL /sites/default/files/public_downloads/12%20AMP%20Power%20Cable.pdf |
| 12 AMP Power Cable With Brake | English | |
Share URL /sites/default/files/public_downloads/12%20AMP%20Power%20Cable%20With%20Brake.pdf |
| 24 AMP Power Cable | English | |
Share URL /sites/default/files/public_downloads/24%20AMP%20Power%20Cable.pdf |
| 24 AMP Power Cable With Brake | English | |
Share URL /sites/default/files/public_downloads/VP-508CFAN-xx.pdf |
| 2D/3D Models for AKD | English | |
Share URL https://webassistants.partcommunity.com/23d-libs/kollmorgen/assistant/pcomm.html?series=akd |
| 6 AMP Power Cable | English | |
Share URL /sites/default/files/public_downloads/6%20AMP%20Power%20Cable.pdf |
| EtherCAT Coupler DRW | English | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20EtherCAT%20Coupler%20AKT-ECT-000%20DRW%201.pdf |
| Feedback Resolver Cable | English | |
Share URL /sites/default/files/public_downloads/Feedback%20Resolver%20Cable.pdf |
| Sine Encoder Feedback Cable | English | |
Share URL /sites/default/files/public_downloads/Sine%20Encoder%20Feedback%20Cable.pdf |
| Title | Release | File Language | Date | Share URL |
|---|---|---|---|---|
| AKD Firmware Release Notes EN |
1.22.00.000
|
English | |
Share URL /sites/default/files/public_downloads/AKD%20Firmware%20Release%20Notes%20EN%20rev1.22.00.000.pdf |
| AKD Servo Drive Firmware |
1.22.00.000
|
English | |
Share URL /sites/default/files/2023-04/AKD-B-P-T_M_01-22-00-000.zip |
| AKD-Firmware-for-KAS |
1.22.00.000
|
English | |
Share URL /sites/default/files/2023-03/AKD-Firmware-for-KAS-V01-22-00-000_0.tgz |
| Add On Instruction (AOI) Library for AKD2G & AKD EtherNet/IP |
6.0
|
English | |
Share URL /sites/default/files/public_downloads/EtherNetIP_AIO_v6.0.zip |
| AKD Drive Automation Using Modbus with a Siemens S7-1200 and S7-1500 PLC |
1.001
|
English | |
Share URL http://kdn.kollmorgen.com/sites/default/files/AKD_S71200-1500_MB.zip |
| AKD STEP 7 PROFINET Sample Project v02 for Siemens S7-300 PLC |
2.8
|
English | |
Share URL /sites/default/files/public_downloads/AKD%20STEP%207%20PROFINET%20Sample%20Project%20v02.zip |
| KVB 2.40 SP3 Sample Project for AKI2G Panel and AKD Motion Tasking |
2.43
|
English | |
Share URL /sites/default/files/public_downloads/KVB_Sample_AKD_240SP3_0.zip |
| AKD Servo Drive WorkBench GUI Full Setup EN |
2.13.0.9149
|
English | |
Share URL /sites/default/files/2023-07/Kollmorgen%20WorkBench%202.13.0.9149%20Full%20Setup%20English.exe_.zip |
| AKD Servo Drive WorkBench GUI Full Setup ES |
2.13.0.9153
|
Spanish | |
Share URL /sites/default/files/2023-06/Kollmorgen%20WorkBench%202.13.0.9153%20Full%20Setup%20Spanish.exe_.zip |
| AKD Servo Drive WorkBench GUI Full Setup PT |
2.13.0.9153
|
Portuguese, Brazil | |
Share URL |
| AKD Servo Drive WorkBench GUI Full Setup ZH |
2.12.0.8548
|
Chinese, Simplified | |
Share URL /sites/default/files/2023-05/Kollmorgen%20WorkBench%202.12.0.8548%20Full%20Setup%20Chinese.exe_.zip |
| AKD Servo Drive WorkBench GUI Standard Setup EN |
2.13.0.9149
|
English | |
Share URL /sites/default/files/2023-07/Kollmorgen%20WorkBench%202.13.0.9149%20Setup%20English.exe_.zip |
| AKD Servo Drive WorkBench GUI Standard Setup ES |
2.13.0.9153
|
Spanish | |
Share URL /sites/default/files/2023-06/Kollmorgen%20WorkBench%202.13.0.9153%20Setup%20Spanish.exe_.zip |
| AKD Servo Drive WorkBench GUI Standard Setup PT |
2.13.0.9153
|
Portuguese, Brazil | |
Share URL /sites/default/files/2023-06/Kollmorgen%20WorkBench%202.13.0.9153%20Setup%20Portuguese.exe_.zip |
| AKD Servo Drive WorkBench GUI Standard Setup ZH |
2.13.0.9153
|
Chinese, Simplified | |
Share URL /sites/default/files/2023-07/Kollmorgen%20WorkBench%202.13.0.9153%20Setup%20Chinese.exe_.zip |
| AKD Servoverstärker Drive WorkBench GUI Full Setup DE |
2.13.0.9153
|
German | |
Share URL /sites/default/files/2023-07/Kollmorgen%20WorkBench%202.13.0.9153%20Full%20Setup%20German.exe_.zip |
| AKD Servoverstärker WorkBench GUI Standard Setup DE |
2.13.0.9153
|
German | |
Share URL /sites/default/files/2023-07/Kollmorgen%20WorkBench%202.13.0.9153%20Setup%20German.exe_.zip |
| AKD_S71200-1500_MB |
10/2016
|
English | |
Share URL /sites/default/files/public_downloads/AKD_S71200-1500_MB_3.zip |
| PCAN Explorer Macro Programs for the AKD CANopen Communication |
–
|
English | |
Share URL /sites/default/files/public_downloads/AKD%20PCAN%20Explorer3%20Macro%20Programs.zip |
| AnyDim |
2.38
|
English | |
Share URL /sites/default/files/public_downloads/AnyDim_V2.38.xlsm |
| Kollmorgen Sistema Library |
1.2.0
|
English, German | |
Share URL /sites/default/files/public_downloads/KOLLMORGEN_Sistema-Library_VDMA_V1.2.0.zip |
| TeamViewer |
12
|
English, German | |
Share URL /sites/default/files/public_downloads/TeamViewerQS_de-idct55eyax.zip |
| AKD EtherCAT Troubleshooting List |
A
|
English | |
Share URL /sites/default/files/public_downloads/AKD%20EtherCAT%20Troubleshooting%20List_RevA.pdf |
| AKD Profinet Parameter Access Byte Descriptions |
–
|
English | |
Share URL /sites/default/files/public_downloads/AKD_Profinet_Parameter_Access_Byte_Descriptions.pdf |
| AKD Profinet Training |
F
|
English | |
Share URL /sites/default/files/2023-04/AKD_Profinet_Training_revF_2023-04-20.pptx |
| AKD_Profinet_Telegram_Quick_Reference_Guide |
7
|
English | |
Share URL /sites/default/files/2023-05/AKD_Profinet_Telegram_Quick_Reference_Guide_Rev7.pdf |
| Wireshark Training for EtherCAT and Profinet |
B
|
English | |
Share URL /sites/default/files/public_downloads/Wireshark_Training_revB_2020-10-1.pptx |
Das Außergewöhnliche entwickeln
Wir bei Kollmorgen glauben an die Kraft von Antriebstechnik und Automatisierung bei der Erschaffung einer besseren Welt.
