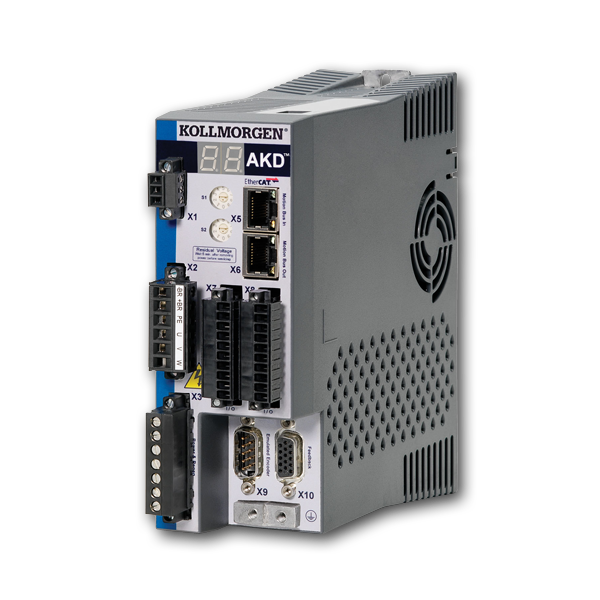

Azionamenti avanzati AKD® di Kollmorgen™
La serie AKD® di Kollmorgen comprende una gamma completa di servoazionamenti con protocollo Ethernet veloci, ricchi di funzionalità, flessibili e facili da integrare in qualsiasi applicazione. Questi azionamenti di prossima generazione distinguono per la messa in servizio plug and play, che consente di accedere istantaneamente e senza alcuna interruzione a qualsiasi componente della macchina. Accoppiati ai nostri servocomponenti top di gamma, gli azionamenti AKD offrono prestazioni, opzioni di comunicazione e livelli di potenza di massima qualità, il tutto in un ingombro ridotto.
Prodotto disponibile in tutto il mondo
Rapida messa in funzione e ottimizzazione

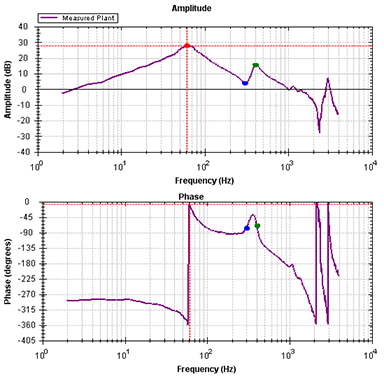

Utilizza il rapido auto-tuning del nostro software WorkBench, diagrammi di Bode multifunzione per l’ottimizzazione delle prestazioni e acquisizione e condivisione dei diagrammi dei programmi e delle impostazioni dei parametri in una sola mossa per rendere la vostra macchina operativa velocemente.
Caratteristiche
Caratteristiche
- Possono integrarsi con l'innovativa Kollmorgen Automation Suite™ per sistemi monoasse e multiasse ad alte prestazioni.
- L'interfaccia utente grafica WorkBench di Kollmorgen per una facile configurazione e programmazione
- Compatibilità plug and play con i motori Kollmorgen
- Optoisolamento con connettori I/O con morsetto a vite
- Loop di coppia e velocità a banda massimaCircuito di corrente digitale più veloce sul mercato
- Auto-tuning guidato a frequenza completa
- Acquisizione di dati rapida con il canale di servizio Ethernet TCP/IP compatibile con PC
- Retroazione prestazioni in tempo reale
- Dispositivi di retroazione: Smart Feedback Device (SFD), EnDat2.2, 2,1, BiSS, encoder sin/cos analogico, encoder incrementale, HIPERFACE® e resolver
- Possibilità di scegliere tra numerosi bus per l’ottimizzazione del sistema, tra cui EtherCAT®, EtherNet/IP, PROFINET RT, Modbus/TCP, CANopen® e SynqNet™.
- Dotato di sistema di rilevamento della temperatura, della corrente e della sovratensione con certificazione SIL per una maggiore affidabilità
- Schede opzionali per aumentare gli I/O, aggiungere NVRAM e aumentare la capacità della NVRAM
Vantaggi
- Di facile impiego, con la configurazione del motore plug and play, l'autoregolazione avanzata e un'interfaccia grafica intuitiva per la programmazione e la diagnostica
- L'azionamento più veloce nella sua classe per un motion più precisa e la resa maggiore.
- Versatile, con supporto delle molteplici opzioni di connettività Ethernet, dispositivi di retroazione, scelte e bus e opzioni aggiuntive
- Progettazione robusta e compatta con densità di potenza leader di mercato
- Disponibile in intervalli di potenza per soddisfare praticamente qualsiasi esigenza applicativa
Specifiche
| 120/240 V CA 1Ø/3Ø (85-265 V CA) | Corrente continua (A RMS) | Corrente di picco (A RMS) | Potenza continua di uscita azionamento (watt) |
|---|---|---|---|
| 240/480 V ca 3Ø (187-528 V CA) | Corrente continua (A RMS) | Corrente di picco (A RMS) | Potenza continua di uscita azionamento (watt) |
| AKD-x00306 | 3 | 9 | 1100 |
| AKD-x00606 | 6 | 18 | 2000 |
| AKD-x01206 | 12 | 30 | 4000 |
| AKD-x02406 | 24 | 48 | 8000 |
| AKD-x00307 | 3 | 9 | 2000 |
| AKD-x00607 | 6 | 18 | 4000 |
| AKD-x01207 | 12 | 30 | 8000 |
| AKD-x02407 | 24 | 48 | 16,000 |
| AKD-x04807 | 48 | 96 | 32,000 |
