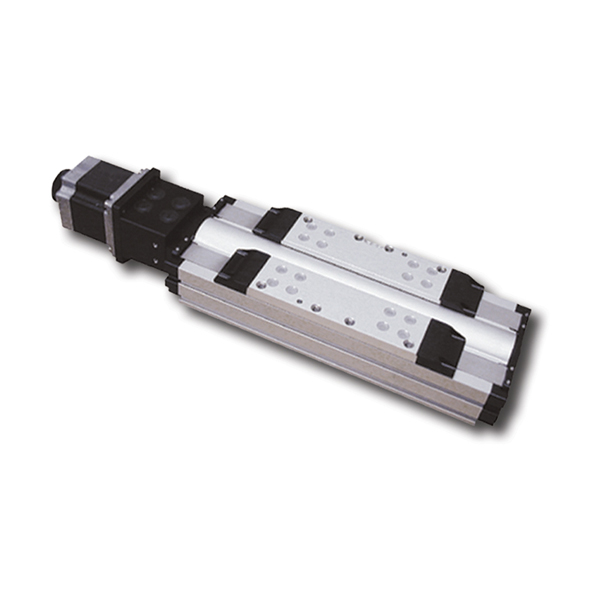

DS4/6 Series

Precision tables are best suited for applications where accuracy and repeatability are more important than axial thrust. They can also be used in applications that require substantial moment load support, and they’re ideal building blocks for multi-axis positioning systems.

DS Series precision tables provide outstanding performance, with the configuration flexibility to suit almost any single-or multi-axis application. Our proven magnetic stainless steel seal strip effectively seals the internal components from contaminants for durable performance in demanding industrial settings.

All our gearheads incorporate True Planetary gearing for high torque capacity, smooth operation and minimal maintenance. So you can count on optimum performance, whether you need a general-purpose gearhead, an ultra-precise model, a washdown or food-grade version, or a complete gearmotor.

The DuraTRUE™ Series offers high-precision gearheads with a variety of shaft configurations, allowing you to design your system in the smallest of envelopes by eliminating the need for couplings. You can even run two axes with one motor using the DuraTRUE “T” design.

For continuous duty cycle applications, our EverTRUE™ Series gearheads are lubricated for life and rated for at least 30,000 hours of 24/7 operation. These high-precision gearheads are compatible with our RediMount mounting system for easy installation on almost any motor.

NemaTRUE™ gearheads are available in four standard NEMA sizes, three metric sizes, and both in-line and right-angle versions—all featuring our RediMount mounting system. These precision gearheads provide a versatile and economical solution for many applications..

Right-angle bevel gear meshes are typically limited to ratios from 1:1 to 3:1. Our PowerTRUE™ 90 gear technology uses an advanced tooth design to increase the ratio range to 5:1. It’s available on NemaTRUE, DuraTRUE, UltraTRUE and ValueTRUE 90° gearheads.

The RediMount™ motor mounting system allows mounting of our TRUE Planetary gearheads to practically any motor available on the market. The innovative design, featuring an adapter sleeve and input housing, ensures that gearhead mounting Is always quick, easy and error-free.

The UltraTRUE™ Series combines our highest-precision helical crowned gearing with TRUE Planetary orientation to create the smoothest and quietest gearheads on the market today. A wide range of metric frame sizes and gear ratios are available in straight and 90° versions.

Our ValueTRUE™ Series delivers high precision at a competitive price. With only 4 arc-minutes of backlash, and available in a wide range of frame sizes and ratios, they’re perfect as original equipment or as a drop-in replacement for most common helical gearheads.

The XTRUE™ Series offers a cost-effective solution with robust features. With five frame sizes, straight and 90° versions, and our RediMount™ mounting system, these precision gearheads provide easy installation and reliable performance.

Design Tools

Catalog

Discontinued Products

Travel (mm)	50	100	150	200	250	300	350	400	450	500	550	600
Overall Height (mm)	47
Width (mm)	95
Positional Accuracy (microns):
Commercial Grade	12	12	14	20	22	24	26	26	28	34	36	40
Precision Grade	8	8	10	12	12	14	14	16	19	21	23	25
Straightness & Flatness (microns)	6	6	9	12	12	14	18	21	23	23	25	25
Bi-Directional Repeatability, Open Loop:
Commercial Grade (microns)	+/- 3
Precision Grade (microns)	+/-1 .3
Pitch / Yaw (arc-sec):
Commercial Grade	20	24	28	36	40	44	47	53	56	61	64	68
Precision Grade	12	14	17	22	25	27	29	33	35	38	40	42
Load Capacity, Normal (kg) (max)	170
Axial Load Capacity (kg)	95
Acceleration (max) (m/sec2)	20
Moving Mass (kg)	0.75
Total Mass (kg)	2.7	3.0	3.3	3.6	3.9	4.1	4.4	4.7	5.0	5.3	5.6	5.9
Ballscrew Diameter (mm)	16
Duty Cycle (%)	100
Ballscrew Efficiency (%)	90
Max. Breakaway Torque (oz-in)	18
Max. Running Torque (oz-in)	16
Ballscrew Leads Available (mm)	5, 10
Input Inertia (x10-5 kg-m2)	1.17	1.24	1.67	1.93	2.18	2.43	2.68	2.93	3.19	3.44	3.69	3.94
Max. Ballscrew Speed (rev/sec)			80				60		55		50

Straightness & Flatness (microns)
Travel (mm)	100	200	300	400	500	600	700	800	900	1000	1250	1500	1750	2000
Overall Height (mm)	70
Width (mm)	150
Positional Accuracy (microns):
Commercial Grade	12	22	28	39	45	48	92	94	103	105	118	134	154	159
Precision Grade	12	14	15	20	25	50	-	-	-	-	-	-	-	-
Commercial & Precision Grade	10	14	17	23	30	33	40	46	50	55	76	95	115	135
Bi-Directional Repeatability, Open Loop:
Commercial Grade (microns)	+/- 3						+/- 5
Precision Grade (microns)	+/- 1.3						N/A
Load Capacity, Normal (kg) (max)	630
Axial Load Capacity (kg):
Commercial Grade	200
Precision Grade	90
Acceleration (max) (m/sec^2)	20
Moving Mass (kg)	2.8
Total Mass (kg)	8.9	10.2	11.5	12.8	14.0	15.4	19.4	20.9	22.4	23.9	27.8	31.6	35.4	40.1
Ballscrew Diameter (mm)	16						25
Duty Cycle (%)	100
Ballscrew Efficiency	90						80
Max. Breakaway Torque (oz-in)	18						55
Max. Running Torque (oz-in)	16						48
Ballscrew Lead Available (mm)	5, 10						5, 10, 25
Input Inertia (10^-5kb-m^2)	3.8	4.4	5	5.5	6.1	6.7	37	40.4	43.9	47.3	56	64.5	73.2	81.9
Max. Ballscrew Speed (rev/sec)	80						60	50	40	35	24	16	13	11

Title	Language(s)	Date	Size
DS4 Drawing Spec Sheet	English	01 Sep 2004	3.93 MB	Copy URL
DS4 Series 3D Interactive Models	English	08 Jun 2020		Copy URL
DS6 Drawing Spec Sheet	English	01 Mar 2010	2.65 MB	Copy URL
DS6 Series 3D Interactive Models	English	08 Jun 2020		Copy URL
