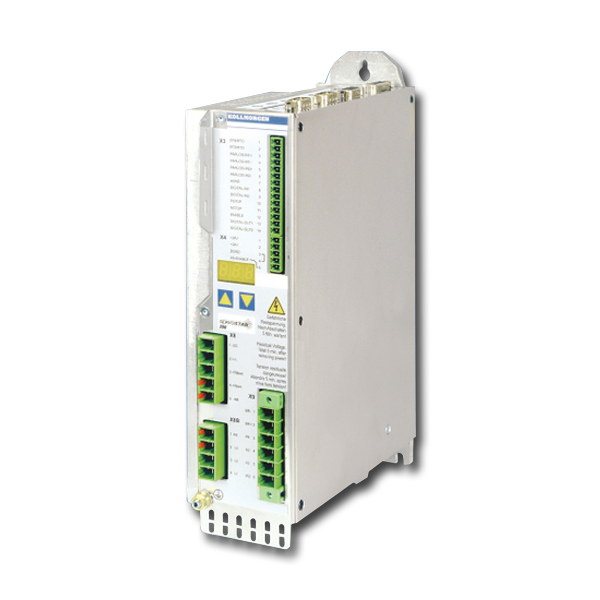

Servoazionamento S300
I servoazionamenti brushless digitali della serie S300 sono compatti, facili da usare ed estremamente versatili. L'ingombro ridotto consente di risparmiare spazio nell'armadio elettrico, e con l'ampia gamma di opzioni di connettività la serie S300 è l'unica famiglia di azionamenti di cui avete bisogno. Questi azionamenti funzionano con i nostri eccezionali servomotori rotativi e posizionatori lineari per offrire un'unica soluzione a prestazioni elevate per un'ampia gamma di applicazioni.
Prodotto disponibile in tutto il mondo
Caratteristiche
Caratteristiche
- CE, UL, cUL, EAC
- Funzionamento diretto da linee da 115 a 480 V CA, trifase, 50-60 Hz messe a terra
- Corrente di uscita: da 1,5 a 10 Amp RMS/fase, continua
- Con filtro di linea CA integrale, tutti i collegamenti di schermatura terminano direttamente sull'amplificatore
- Possibilità di connessione in parallelo di circuiti DC-link
- Completamente programmabili attraverso l’interfaccia RS232
- Configurazione semplice usando l'interfaccia grafica basata su Windows
- Tipo a 230 V adatto per quadri elettrici ad armadio da 200 mm
- Interfaccia integrata per controller passo-passo, funzionamento master-slave e ingranaggio elettronico
- Controller di posizione integrato dotato di memoria per 300 task di movimento intelligente, tra cui:
- Profilo della velocità
- Controllo di registro
- Limitazione scosse
- Task con connessione a margherita
- Task assoluti e relativi
- Trasversali di riferimento di diversi tipi
- Motion control e Soft-PLC integrati
- Emulazione encoder: possibilità di selezione tra incrementale (A quad B, dec./bin.) o assoluto (SSI, Gray/bin.)
- Compatibile con una vasta gamma di retroazioni:
- Resolver con un massimo di 36 poli
- ComCoder
- Encoder incrementale o sinusoidale con sensore effetto Hall
- Encoder sinusoidale con EnDat/HIPERFACE/BISS
- Encoder sinusoidale senza dati
- Encoder incrementale A quad B
Vantaggi
- L'ampia gamma di potenze consente di utilizzare un'unica famiglia di azionamenti per tutta la macchina
- L'ingombro ridotto consente l'utilizzo di armadi più piccoli o il montaggio vicino al punto di utilizzo
- Sistema a prestazioni elevate per una maggior produttività della macchina
- L'interfaccia grafica utente facile da usare riduce di tempi di progettazione e di assistenza
- Costi complessivi ridotti
Specifiche
Dati tecnici
| azionamento | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dati nominali | Dim | 303 | 306* | 310* | 341 | 343* | 346* | ||||||
| Tensione di alimentazione nominale | v~ | 3 x 110 v-10% ... 230 v+10% | 3 x 208 v-10% ... 480 v+10% | ||||||||||
| Potenza nominale installata per funzionamento S1 | kva | 1.2 | 2.4 | 4 | 1.4 | 3.3 | 5 | ||||||
| Tensione DC-link nominale | v= | 145–360 | 560–675 | ||||||||||
| Corrente di uscita nominale (valore RMS ± 3%)/Corrente di picco in uscita (max. 5 s, ± 3 %) | |||||||||||||
| con tensione di rete di 1 x 110 V | A RMS | 3 / 5 | 3 / 5 | 3 / 5 | - | - | - | ||||||
| con tensione di rete di 1 x 230 V/240 V | A RMS | 3 / 9 | 4 / 9 | 4 / 9 | - | - | - | ||||||
| con tensione di rete di 3 x 115 V | A RMS | 3.5 / 9 | 8 / 15 | 10 / 20 | - | - | - | ||||||
| con tensione di rete di 3 x 230 V | A RMS | 3 / 9 | 6 / 15 | 10 / 20 | 2 / 4.5 | 5 / 7.5 | 6 / 12 | ||||||
| con tensione di rete di 3 x 400 V | A RMS | - | - | - | 1.5 / 4.5 | 4 / 7.5 | 6 / 12 | ||||||
| con tensione di rete di 3 x 480 V | A RMS | - | - | - | 1.5 / 4.5 | 3 / 7.5 | 6 / 12 | ||||||
| Potenza continua del circuito a recupero (RBint) | L | 20 | 50 | 50 | 20 | 50 | 50 | ||||||
| Potenza continua del circuito a recupero (rBext) max. | kW | 0.3 | 0.3 | 0.3 | 0.3 | 1.0 | 1.0 | ||||||
| Potenza di picco del circuito a recupero (rBext) max. | kW | 0.75...3 | 0.75...3 | 0.75...3 | 2.1...9 | 2.1...9 | 2.1...9 | ||||||
Dimensioni
| 303 / 306 / 310 | 341 / 343 / 346 | |
|---|---|---|
| Altezza | 246 mm | 246 mm |
| Larghezza | 70 mm | 70 mm |
| Profondità senza connettori | 171 mm | 171 mm |
| Profondità con connettori | < 200 mm | < 235 mm |
