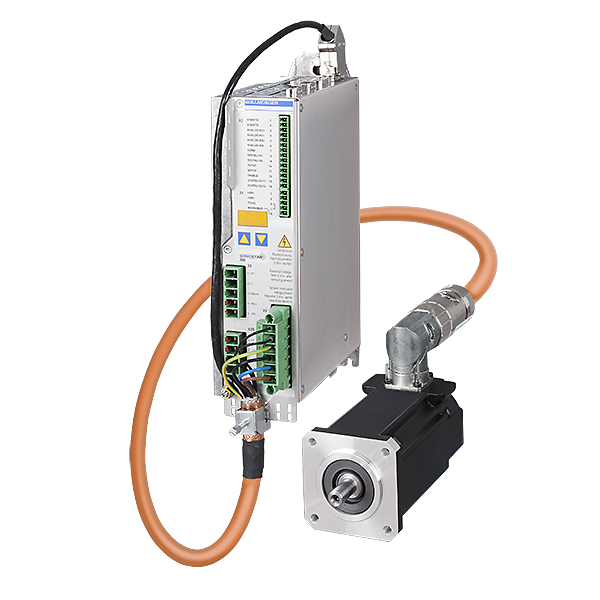

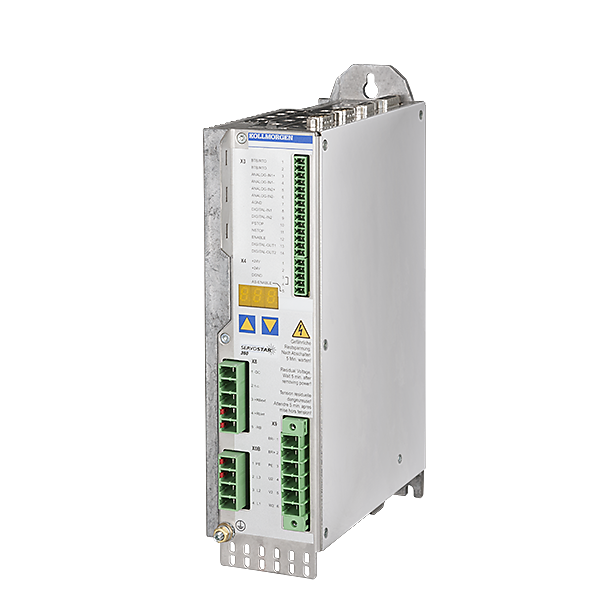

S300 Servo Sürücü
S300 Serisi dijital fırçasız servo sürücüler kompakt, kullanımı kolay ve ileri derecede çok yönlüdür. En küçük ayak izi, ana şalter kabininde alandan tasarruf sağlar ve geniş aralıklı bağlanabilirlik seçenekleriyle S300 ihtiyaç duyduğunuz tek tahrik ailesi olabilir. Bu tahrikler, geniş bir uygulama yelpazesini için tek ve yüksek performanslı bir çözüm sunmak için sınıfının en iyisi döner servo motorlar ve doğrusal konumlandırıcılarla beraber çalışır.
Dünya çapında temin edilebilen ürün
Özellikler
Özellikler
- CE, UL, cUL, EAC
- Doğrudan topraklı 115 ila 480 VAC, 3-faz, 50-60 Hz hatlardan işletim
- Çıkış akımı: 1,5 ila 10 Amper RMS/faz, sürekli
- Entegre AC hat filtresiyle tüm kalkan bağlantıları doğrudan yükselteçte sonlanır
- DC bağlantısı paralel bağlanabilir
- RS232 arabirimi aracılığıyla tam olarak programlanabilir
- Windows tabanlı grafik arabirimi kullanılarak kolay kurulum
- 200 mm ana şalter kabinlerine uygun 230 V tipi
- Step kontrolörler için entegre arabirim, master-bağımlı işletimi ve elektronik dişli sistemi
- Aşağıdakiler dahil olmak üzere 300 akıllı konumlandırma görevi için bellek içeren entegre konum kontrolör:
- Hız profili
- Kayıt kontrolü
- Sarsılma sınırlama
- Papatya zinciri görevler
- Mutlak ve göreceli görevler
- Birkaç tür referans ara bağlantı
- Hareket Kontrolü ve Soft-PLC entegre
- Enkoder emülasyonu: artımlı (A dörtlü B, ond./ikili) veya mutlak (SSI, Gri/ikili) seçimi
- Geniş bir geri bildirim yelpazesi seçeneğiyle uyumlu:
- Tek Kablo Feedback SFD3 ve Hiperface DSL
- Çözücü, en fazla 36 kutup
- ComCoder
- Hall sensörüyle artımlı veya sin enkoder
- EnDat/HIPERFACE/BISS içeren sin enkoder
- Verisiz sin enkoder
- Artımlı enkoder A dörtlü B
Faydaları
- Geniş güç aralığı, tek bir tahrik ailesinin tüm makinenizde konuşlandırılmasına imkan sağlar.
- Kompakt ayak izi, daha küçük kabinlerin kullanımına veya kullanım noktasına yakın montaja imkan sağlar
- Artan makine üretimi için tasarlanan yüksek performanslı sistem
- Kullanımı kolay grafik kullanıcı arabirimi mühendislik ve destek süresini kısaltır
- Daha düşük toplam maliyet
Spesifikasyonlar
Teknik Veriler
| Model | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Anma verileri | Dim | 303 | 306* | 310* | 341 | 343* | 346* | ||||||
| Anma besleme gerilimi | v~ | 3 x 110 v-10% ... 230 v+10% | 3 x 208 v-10% ... 480 v+10% | ||||||||||
| S1 işletimi için kurulu anma gücü | kva | 1.2 | 2.4 | 4 | 1.4 | 3.3 | 5 | ||||||
| Anma DC bağlantı gerilimi | v= | 145–360 | 560–675 | ||||||||||
| Anma çıkış akımı (RMS değeri, ± % 3)/Pik çıkış akımı (maks. 5 s, ± % 3) | |||||||||||||
| 1 x 110 v şebeke geriliminde | A RMS | 3 / 5 | 3 / 5 | 3 / 5 | - | - | - | ||||||
| 1 x 230 V/240 V şebeke geriliminde | A RMS | 3 / 9 | 4 / 9 | 4 / 9 | - | - | - | ||||||
| 3 x 115 v şebeke geriliminde | A RMS | 3.5 / 9 | 8 / 15 | 10 / 20 | - | - | - | ||||||
| 3 x 230 v şebeke geriliminde | A RMS | 3 / 9 | 6 / 15 | 10 / 20 | 2 / 4.5 | 5 / 7.5 | 6 / 12 | ||||||
| 3 x 400 v şebeke geriliminde | A RMS | - | - | - | 1.5 / 4.5 | 4 / 7.5 | 6 / 12 | ||||||
| 3 x 480 v şebeke geriliminde | A RMS | - | - | - | 1.5 / 4.5 | 3 / 7.5 | 6 / 12 | ||||||
| Sürekli güç regen devresi (rBint) | W | 20 | 50 | 50 | 20 | 50 | 50 | ||||||
| Sürekli güç regen devresi (rBext) maks | kW | 0.3 | 0.3 | 0.3 | 0.3 | 1.0 | 1.0 | ||||||
| Pik güç regen devresi (rBext) maks | kW | 0.75...3 | 0.75...3 | 0.75...3 | 2.1...9 | 2.1...9 | 2.1...9 | ||||||
Boyutlar
| 303 / 306 / 310 | 341 / 343 / 346 | |
|---|---|---|
| Yükseklik | 246 mm | 246 mm |
| Genişlik | 70 mm | 70 mm |
| Konektörler olmadan derinlik | 171 mm | 171 mm |
| Konektörlerle derinlik | < 200 mm | < 235 mm |
