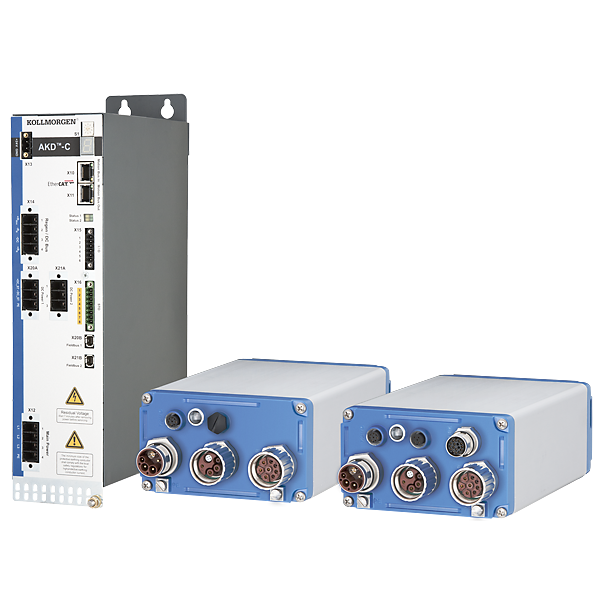

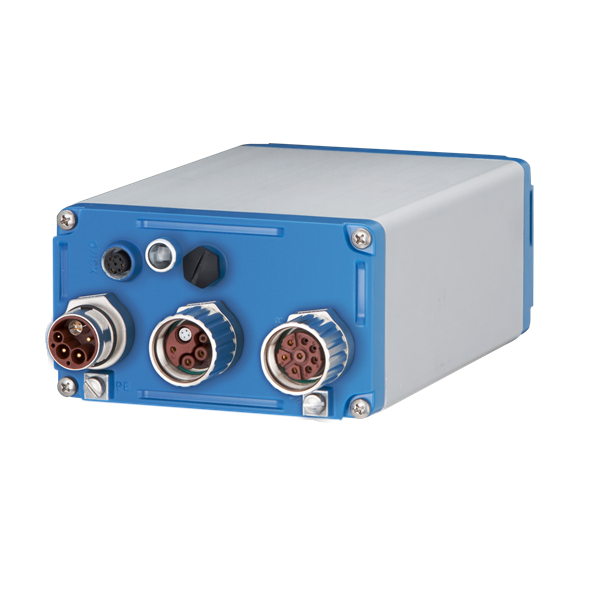

AKD-N Dağıtılmış Servo Sürücü
AKD-N dağıtılmış servo tahrik, pano alanını azaltır ve %80 daha az kablo tesisatı ile daha akıllı bir makine otomasyonuna kapı açar. AKD-N için tipik uygulamalar arasında, yiyecek ve meşrubat sektöründeki ambalaj makineleri ve üretim makineleri yer alır.
- IP67 tahrikleri, kontrol paneli dışında makineye monte edilebilir
- DC, ağ, güç kaynağı, I/O düzlemi ve ayrıca güvenlik (STO) tek bir kablodan geçtiği için daha düşük kablolama maliyeti
- Makine dizaynında daha çok esneklik “soğuk plaka” montajlı olabilir
Dünya çapında temin edilebilen ürün
Daha Az Kablo Döşeyin
Diyelim ki, makinenizde her biri üç metre mesafeye sahip altı eksen olsun. Anahtar kabini 5 metre uzaktadır ve her bir eksende bir anahtar vardır. Bu örnekte, tipik servo tahrike sahip toplam 372 metre kablo gerekir, fakat AKD-N'de yalnızca 42 metre gerekir. AKD-N'nin dağıtılmış servo teknolojisi burada 330 metre kazanır.

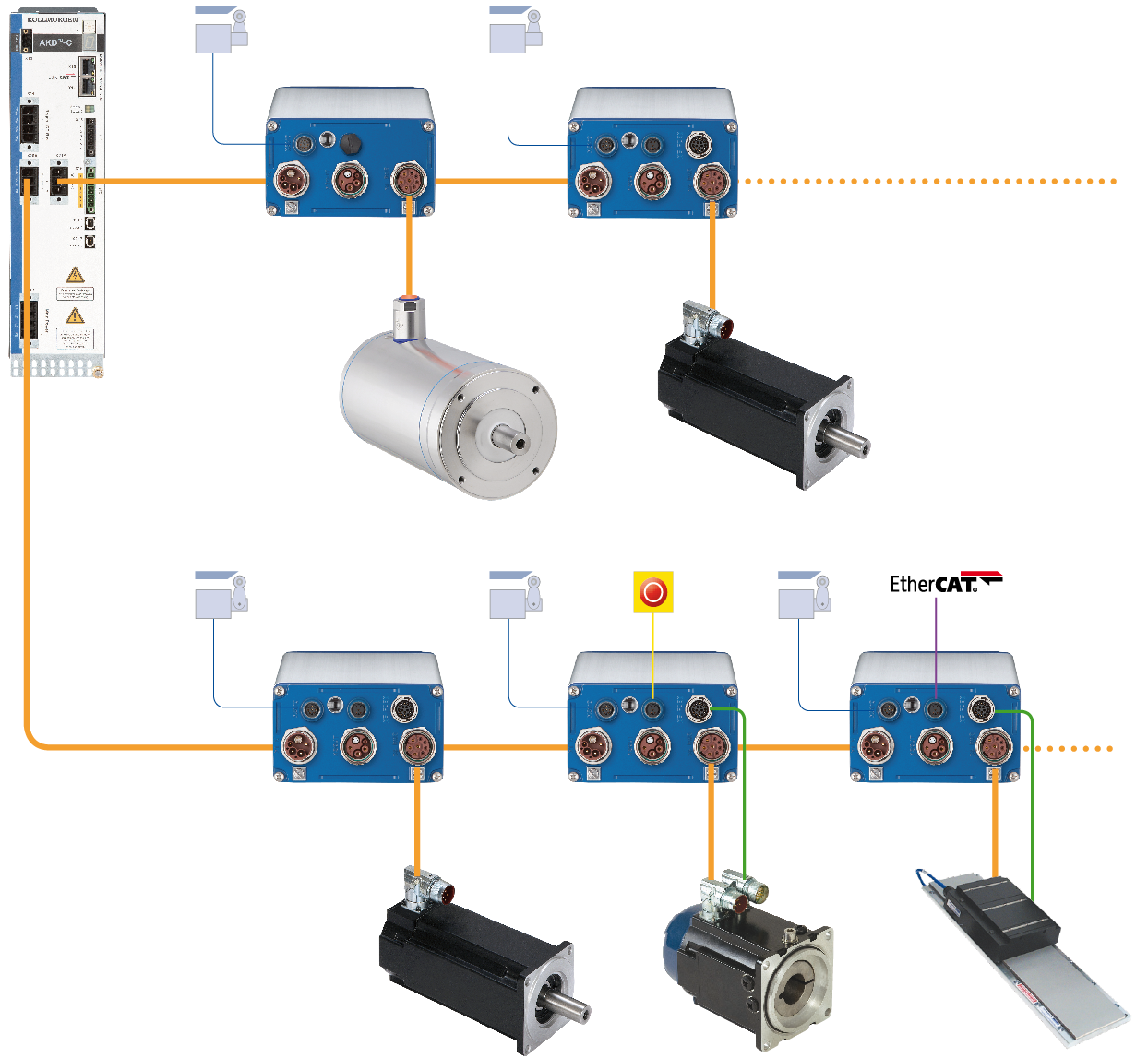

TOPOGRAFİYİ KEŞFEDİN
AKD-N Decentralized Drive Cabling
- 1Hybrid cable AKD-C to AKD-N: CCNCN1
- 2Hybrid motor cables for single-cable operation:
- CCJNA2
- 3Hybrid cable AKD-N to AKD-N:
- CCNNN1
- 4Motor cables for dual-cable operation:
- CMØNA2 without brakes
- CM1NA2 with brakes
- 5Feedback cables for dual-cable operation:
- CFSNA2 SFD
- CFCNA2 Comcoder
- CFENA2 EndDat / BiSS
- CFHNA2 Hiperface
Özellikler
Maliyetleri azaltın
- DC ve ağ, güç kaynağı, I/O düzeyi ve ayrıca güvenlik (STO) tek bir kablodan geçtiği için daha düşük kablolama maliyeti
- Önceden birleştirilmiş ve test edilmiş kablolar sayesinde uzmanlık gerektirmeyen hızlı ve basit montaj
- Derating (güç oranı azalımı) olmaması nedeniyle, entegre sistemlere kıyasla aynı çıkış gücünde daha küçük motor ve servo tahrik kombinasyonları
Kompakt makineler
- Daha küçük ve dolayısıyla daha kolay entegre edilebilir şalter dolapları
- Doğrudan motora yakın servo tahrikler
- IP67 koruma sınıfında sağlam tasarım ile koruyucu kasalar gereksiz hale gelir
Daha hızlı devreye alma
- Aletsiz bağlama için IP67'de konnektör
- Yalnızca on bir milimetre inceliğinde olan hibrid kablo, keskin makine köşelerinde küçük bükme yarıçapları sayesinde yerden tasarruflu olarak döşenebilir
- I/O sistemlerinin veya ağların doğrudan tahrikte basit bağlantısı
- Kollmorgen WorkBench yazılımı ile parametrelendirme
Daha yüksek makine verimliliği (OEE)
- Dizaynı hızlı ve etkili temizliği destekler
- Sağlam tasarımla yüksek işletim güvenliği
- Dijital geri besleme ile hassasiyet
- Her şey göz önünde: Servo tahrik üzerinde durum göstergesi
Makine dizaynında daha çok esneklik
- Tek veya çift kablo bağlantılı tüm Kollmorgen motorlarıyla uyumlu
- Genel AKD ailesi içinde merkezi ve dağıtılmış kontrolörlerin basit kombinasyonu
- Lineer topoloji ve eksenlerde I/O ile alan arabirimleri sayesinde daha hızlı donanım değişikliği veya yükseltme olanakları
Spesifikasyonlar
AKD-N: Decentralized Servo Drive
| AKD-N00307 | AKD-N00607 | AKD-N01207 | |
|---|---|---|---|
| Continuous output current | 3A | 6A | 12A |
| Peak output current | 9A | 18A | 30A |
| Environmental area | IP67 | ||
| Size | 75x130x201mm³ | 75x130x252mm³ | |
| Fieldbus | EtherCAT | ||
| Feedback | SFD, Biss C, EnDat 2.1 and 2.2, Hall, Comcoder, Hiperface, Hiperface DSL | ||
| I/O | 3 digital inputs, 1 digital output | ||
| Vibrations | 3M5 | ||
| Options | Tertiary fieldbus (-DF) Local STO SIL 2 / PLd (-DS) |
Tertiary fieldbus with two cable feedback (-DF) Tertiary fieldbus with single cable feedback (-DG) Local STO SIL2/PLd with two cable feedback (-DS) Local STO SIL2/PLd with single cable feedback (-DT) |
|
AKD-C: Central Power Supply for up to 16 AKD-N
| AKD-C01007 | |||
|---|---|---|---|
| Rated supply voltage | 400…480V, 3 phase | ||
| Continuous output power | 10 kVA | ||
| Peak output power | 20 kVA | ||
| Environmental area | IP 20 | ||
| Size | 329x80x198mm³ | ||
| Fieldbus | EtherCAT | ||
| STO | SIL 2, PL d | ||
Media & Downloads
| Title | Dosya Dili | Tarih | URL'yi paylaş |
|---|---|---|---|
| Ajuda do Workbench | Portuguese, Brazil | |
URL'yi paylaş http://curvegen.kollmorgen.com/webhelp/workbench/Portuguese/ |
| AKD WorkBench Online Help/User Guide | English | |
URL'yi paylaş http://webhelp.kollmorgen.com/AKD/English/Content/WorkBench%20Help/Welcome.htm |
| AKD-C and AKD-N EtherCAT Communications Manual EN | English | |
URL'yi paylaş /sites/default/files/public_downloads/903-200023-00%20AKD-C_N%20Ethercat%20Communications%20Manual%20EN%20REV%20J%20.pdf |
| AKD-C and AKD-N Projecting Guide EN | English | |
URL'yi paylaş /sites/default/files/public_downloads/AKD-C%20and%20AKD-N%20Projecting%20Guide%20EN%20%28REV%20C%29.pdf |
| AKD-C and AKD-N User Guide EN | English | |
URL'yi paylaş /sites/default/files/public_downloads/AKD-C%20and%20AKD-N%20User%20Guide%20EN%20%28REV%20C%29.pdf |
| AKD-C Betriebsanleitung DE | German | |
URL'yi paylaş /sites/default/files/public_downloads/903-200019-01%20AKD-C_Installation_de%20Rev%20L.pdf |
| AKD-C Installation Manual EN | English | |
URL'yi paylaş /sites/default/files/public_downloads/903-200019-00%20AKD-C_Installation_en%20Rev%20L.pdf |
| AKD-C Typenschlüssel | German | |
URL'yi paylaş /sites/default/files/public_downloads/pns-akd-c_d.pdf |
| AKD-C und AKD-N Benutzerhandbuch DE | German | |
URL'yi paylaş /sites/default/files/public_downloads/AKD-C%20and%20AKD-N%20User%20Guide%20DE%20%28REV%20C%29.pdf |
| AKD-C und AKD-N EtherCat Kommunikationsprofil DE | German | |
URL'yi paylaş /sites/default/files/public_downloads/903-200023-01%20AKD-C_N%20Ethercat%20Communications%20Manual%20DE%20REV%20J%20.pdf |
| AKD-C und AKD-N Projektierungshandbuch DE | German | |
URL'yi paylaş /sites/default/files/public_downloads/AKD-C%20and%20AKD-N%20Projecting%20Guide%20DE%20%28REV%20C%29.pdf |
| AKD-C/N Product Safety Notes EN DE | Englishve German | |
URL'yi paylaş /sites/default/files/public_downloads/903-200021-99%20AKD-CN_Safety-Notes_en-de%20Rev%20B.pdf |
| AKD-N Betriebsanleitung DE | German | |
URL'yi paylaş /sites/default/files/public_downloads/903-200018-01%20AKD-N_Installation_de%20Rev%20M.pdf |
| AKD-N Installation Manual EN | English | |
URL'yi paylaş /sites/default/files/public_downloads/903-200018-00%20AKD-N_Installation_en%20Rev%20M_0.pdf |
| AKD-N Typenschlüssel | German | |
URL'yi paylaş /sites/default/files/public_downloads/pns-akd-n_d.pdf |
| AKD2G, AKD Accessories Guide Europe EN | English | |
URL'yi paylaş /sites/default/files/public_downloads/AKD%20Accessories%20Europe_en.pdf |
| AKD2G, AKD and S700 Accessories Guide North America EN | English | |
URL'yi paylaş /sites/default/files/public_downloads/AKD2G%20AKD%20S700%20Accessories%20Guide%20North%20America%20EN%20REV%20K.pdf |
| AKD2G, AKD Zubehörhandbuch Europa DE | German | |
URL'yi paylaş /sites/default/files/public_downloads/AKD%20Accessories%20Europe_de.pdf |
| Leitungen Dezentrale Systeme Typenschlüssel | German | |
URL'yi paylaş /sites/default/files/public_downloads/cable-decentral_%20d.pdf |
| Leitungen Zentrale Systeme Typenschlüssel | German | |
URL'yi paylaş /sites/default/files/public_downloads/cable-central_de_rev3.pdf |
| Part Number Scheme AKD-C | English | |
URL'yi paylaş /sites/default/files/public_downloads/pns-akd-c_e.pdf |
| Part Number Scheme AKD-N | English | |
URL'yi paylaş /sites/default/files/public_downloads/pns-akd-n_e.pdf |
| Part Number Scheme Cables (centralized systems) | English | |
URL'yi paylaş /sites/default/files/public_downloads/cable-central_e_rev3.pdf |
| Part Number Scheme Cables (decentralized systems) | English | |
URL'yi paylaş /sites/default/files/public_downloads/cable-decentral_e_0.pdf |
| WorkBench Online Hilfe | German | |
URL'yi paylaş https://webhelp.kollmorgen.com/akd/german/ |
| WorkBench 帮助 | Chinese, Simplified | |
URL'yi paylaş http://curvegen.kollmorgen.com/webhelp/workbench/Chinese/ |
| Zubehör für digitale Antriebe DE | German | |
URL'yi paylaş /sites/default/files/public_downloads/Digital%20Drive%20Systems%20Accessories%20Guide%20DE%20%28REV%2012-2014%29.pdf |
| Kollmorgen 2G Cable Guide | English | |
URL'yi paylaş https://www.kollmorgen.com/en-us/products/accessories/cables/literature/kollmorgen-2g-cable-guide/ |
These 3D models are intended to guide your design activities and may be used as reference information. Be sure to consult a Kollmorgen expert to ensure you have the most current and accurate information for critical aspects of design work.
| Title | Dosya Dili | Tarih | URL'yi paylaş |
|---|---|---|---|
| 2D/3D Models for AKD-C Central Power Supply (400-480V, 3 phase) | English | |
URL'yi paylaş https://webassistants.partcommunity.com/23d-libs/kollmorgen/assistant/pcomm.html?series=akdnc |
| 2D/3D Models for AKD-N Decentralized (Feedback) | English | |
URL'yi paylaş https://webassistants.partcommunity.com/23d-libs/kollmorgen/assistant/pcomm.html?series=akdnc |
| 2D/3D Models for AKD-N Decentralized 3A, 6A | English | |
URL'yi paylaş https://webassistants.partcommunity.com/23d-libs/kollmorgen/assistant/pcomm.html?series=akdnc |
| AKD-C & AKD-N 3D Models | English | |
URL'yi paylaş https://webassistants.partcommunity.com/23d-libs/kollmorgen/assistant/pcomm.html?series=akd |
| Title | Release | File Language | Date | Share URL |
|---|---|---|---|---|
| AKD Firmware Release Notes EN |
1.22.00.000
|
English | |
Share URL /sites/default/files/public_downloads/AKD%20Firmware%20Release%20Notes%20EN%20rev1.22.00.000.pdf |
| AKD-C Central Power Supply Servo Drive Firmware |
1.21.00.000
|
English | |
Share URL /sites/default/files/public_downloads/AKD-C-CBEC-V01-21-00-000_0.zip |
| AKD-N Hybrid Motor Cable Servo Drive Firmware |
1.17.00.004
|
English | |
Share URL /sites/default/files/public_downloads/AKD-N%20Servo%20Drive%20Firmware%20Hybrid%20Motor%20Cable%20%28AKD-N-DBEC-01-17-00-004%29.zip |
| AKD-N Individual STO Servo Drive Firmware |
1.17.00.004
|
English | |
Share URL /sites/default/files/public_downloads/AKD-N%20Servo%20Drive%20Firmware%20Individual%20STO%20%28AKD-N-DSEC-01-17-00-004%29.zip |
| AKD-N Servo Drive Firmware |
1.21.00.000
|
English | |
Share URL /sites/default/files/public_downloads/AKD-N-xxEC-V01-21-00-000.zip |
| AKD Servo Drive WorkBench GUI Full Setup EN |
2.11.0.8192
|
English | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8192%20Full%20Setup%20English.exe_.zip |
| AKD Servo Drive WorkBench GUI Full Setup ES |
2.11.0.8193
|
Spanish | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8193%20Full%20Setup%20Spanish.exe_.zip |
| AKD Servo Drive WorkBench GUI Full Setup PT |
2.11.0.8193
|
Portuguese, Brazil | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8193%20Full%20Setup%20Portuguese.exe__0.zip |
| AKD Servo Drive WorkBench GUI Full Setup ZH |
2.11.0.8193
|
Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8193%20Full%20Setup%20Chinese.exe__0.zip |
| AKD Servo Drive WorkBench GUI Standard Setup EN |
2.11.0.8192
|
English | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8192%20Setup%20English.exe__0.zip |
| AKD Servo Drive WorkBench GUI Standard Setup ES |
2.11.0.8193
|
Spanish | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8193%20Setup%20Spanish.exe_.zip |
| AKD Servo Drive WorkBench GUI Standard Setup PT |
2.11.0.8193
|
Portuguese, Brazil | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8193%20Setup%20Portuguese.exe_.zip |
| AKD Servo Drive WorkBench GUI Standard Setup ZH |
2.11.0.8193
|
Chinese, Simplified | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8193%20Setup%20Chinese.exe_.zip |
| AKD Servoverstärker Drive WorkBench GUI Full Setup DE |
2.11.0.8193
|
German | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8193%20Full%20Setup%20German.exe__0.zip |
| AKD Servoverstärker WorkBench GUI Standard Setup DE |
2.11.0.8193
|
German | |
Share URL /sites/default/files/public_downloads/Kollmorgen%20WorkBench%202.11.0.8193%20Setup%20German.exe__0.zip |
| Kollmorgen Sistema Library |
1.2.0
|
English, German | |
Share URL /sites/default/files/public_downloads/KOLLMORGEN_Sistema-Library_VDMA_V1.2.0.zip |
| Title | Dosya Dili | Tarih | URL'yi paylaş |
|---|---|---|---|
| AKD EU RoHS Declaration (RoHS10) | English | |
URL'yi paylaş /sites/default/files/public_downloads/RoHS10W_%20Standard%20AKD.pdf |
| AKD REACH SVHC Certificate of Compliance | English | |
URL'yi paylaş /sites/default/files/public_downloads/REACH_223_Standard%20AKD.pdf |
| AKD-C EU Declaration of Conformity | English | |
URL'yi paylaş /sites/default/files/public_downloads/ce_akd-c_e_0.pdf |
| AKD-C EU-Konformitätserklärung | German | |
URL'yi paylaş /sites/default/files/public_downloads/ce_akd-c_d_0.pdf |
| AKD-C/N & MKD TUV Safety Certificate | Englishve German | |
URL'yi paylaş /sites/default/files/public_downloads/AKD-MKD_TUV_01_205_5430_02_19_de_en_el.pdf |
| AKD-N EU Declaration of Conformity | English | |
URL'yi paylaş /sites/default/files/public_downloads/ce_akd-n_e_0.pdf |
| AKD-N EU-Konformitätserklärung | German | |
URL'yi paylaş /sites/default/files/public_downloads/ce_akd-n_d_1.pdf |
| Blue Guide | Englishve German | |
URL'yi paylaş https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=OJ%3AC%3A2022%3A247%3ATOC |
| ISO 9001:2015 Certificate EU (DE) | German | |
URL'yi paylaş /sites/default/files/public_downloads/KM_RAT_9001_2015%20final_DE.pdf |
| ISO 9001:2015 Certificate EU (EN) | English | |
URL'yi paylaş /sites/default/files/public_downloads/KM_RAT_9001_2015%20final_EN.pdf |
| ISO 9001:2015 Certificate US | English | |
URL'yi paylaş /sites/default/files/public_downloads/20220208-111001_9_Kollmorgen_Corporation_FINAL_21-5197.pdf |
| Kollmorgen WEEE Statement (RoHS, RoHS2 and EU Directive 2012/19) | Englishve German | |
URL'yi paylaş https://www.kollmorgen.com/sites/default/files/Kollmorgen%20WEEE_and_RoHS_6_2020.pdf |
Destek
| Trade Compliance |
Bethany… |
Şubat 21, 2023 |
| KAS v3.07 is now available!! |
dusty.… |
Aralık 10, 2021 |
| What is a Subnet Mask? |
jcoleman02 |
Kasım 10, 2021 |
| How to Change IP Address in AKD-C and AKD-N | kenny.… |
Mart 11, 2022 |
| Does AKD support 400Hz AC Power Supply? | Xinbo.… |
Şubat 23, 2022 |
| About Leakage Current of AKD Drive | Ryu |
Ağustos 17, 2017 |
iletişim >
İletişim bilgilerimize ulaşmak için lütfen bağlantıları izleyin.
AGV Partner portalı >
AGV Ortak Portalı'ndan, Teknik Destek, Müşteri Hizmetleri ve Eğitim gibi NDC Servislerimize erişebileceksiniz. Bu ayrıca en son NDC yazılımımızı indirdiğiniz yerdir.Olağanüstü olanı tasarlayın
Kollmorgen daha iyi bir dünya inşa etmek için hareketin ve otomasyonun gücüne inanır.
