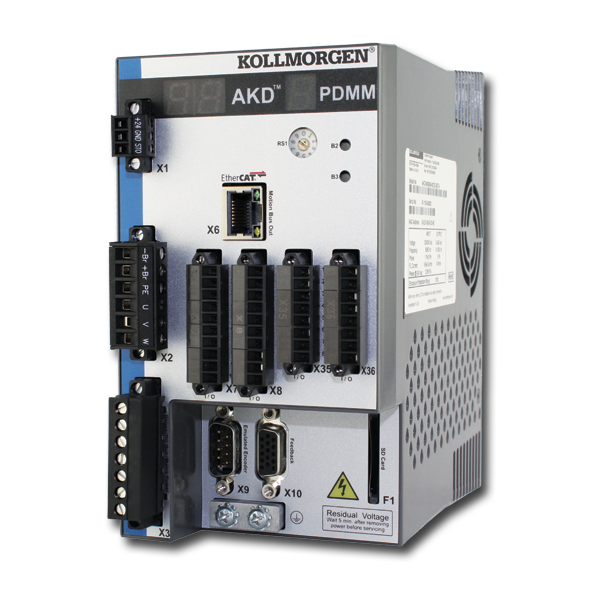

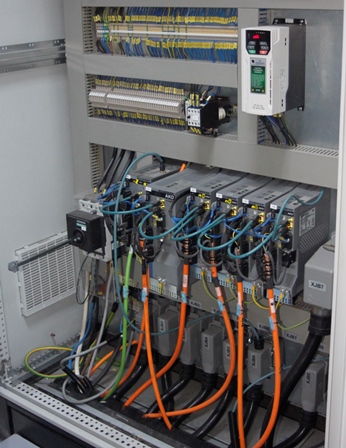

Master multiasse ad azionamento programmabile AKD® PDMM
L'AKD PDMM® combina un servo asse AKD e un controller master che supporta fino a sette o più assi AKD aggiuntivi in un'unica struttura compatta. Fornisce un controllo integrato per assi multipli ad alte prestazioni, interfacce I/O e HMI complete, e comprende le funzionalità di automazione complete di Kollmorgen Automation Suite™, offrendo un unico ambiente di sviluppo scalabile sia per macchine AKD PDMM che basate su PAC.

Caratteristiche
Caratteristiche
- Kollmorgen Automation Suite™ offre programmazione, test, configurazione e messa in servizio totalmente integrati
- La risorsa del server Web integrato semplifica l'assistenza
- Controllo di 20 o più* assi riducendo nel contempo l'ingombro della macchina:
- Controller di movimento master multiasse EtherCat integrato con un un asse standard dell'azionamento AKD™.
- PLC soft IEC61131-3 per il controllo delle macchine, con supporto di tutti e 5 i linguaggi di programmazione
- Possibilità di scegliere tra PLCopen for motion o Pipe Network™ per programmare il motion control
- La memoria non volatile da 32 kB archivia dati per eliminare gli scarti al riavvio dopo un'interruzione di alimentazione
- Lo slot della scheda SD semplifica il backup e la messa in servizio, senza necessità di usare un PC
- Gli I/O integrati comprendono 13 ingressi digitali, 4 uscite digitali, 1 ingresso analogico, 1 uscita analogica (espandibili con gli I/O remoti della serie AKT)
- Funzionamento con Kollmorgen Visualization Builder™ per programmare i pannelli dell'interfaccia uomo-macchina AKI
- Compatibilità plug and play con i servomotori
- Accesso a tutti i vantaggi delle numerose piattaforme motori Kollmorgen tra cui AKM™, CDDR™, e altre tecnologie ad azionamento diretto.
- Supporto di feedback delle prestazioni in tempo reale da Smart Feedback Device (SFD), EnDat2.2, 01, BiSS, encoder sin/cos analogico, encoder incrementale, HIPERFACE® e resolver
- L'autoregolazione a frequenza totale garantisce il movimento perfetto in tutta la gamma delle prestazioni
* Il numero massimo di assi dipende dalla complessità movimento/automazione e dalle prestazioni
Vantaggi
- Riduzione dello spazio del pannello, dei costi di cablaggio e del tempo di realizzazione con un asse del servomotore AKD e un controller di movimento e della macchina multiasse programmabile in un'unica soluzione: si elimina l'esigenza di un controller separato in molte applicazioni
- Accelerazione del tempo di progettazione e semplificazione dell'integrazione usando un unico ambiente di sviluppo scalabile per programmare AKD PDMM, nonché applicazioni basate su PAC fino a 128 assi
- Riduzione al minimo dei rischi e ottimizzazione delle prestazioni con il nostro hardware dell'azionamento AKD, leader nel settore, integrato con l'architettura collaudata di Kollmorgen Automation Suite
- Caratteristiche avanzate in una macchina con prestazioni più elevate, con i vantaggi di Pipe Network™ e le capacità di progettazione condivisa di Kollmorgen
- Controllo di più assi servoassistiti con prestazioni elevate senza l'esigenza di un controller separato, risparmiando spazio nell'armadio e costi di cablaggio
- Realizzazione di un sistema completo con prestazioni ottimali usando azionamenti, motori, moduli I/O, pannelli HMI e altri componenti progettati per funzionare insieme
Specifiche
120/240 VAC Mono e trifase | Corrente continua (Arms) | Corrente di picco (Arms) | H (mm) | L (mm) | P (mm) |
---|---|---|---|---|---|
AKD-M00306-Mx*EC-0000 | 3 | 9 | 168 | 89 | 156 |
AKD-M00606-Mx*EC-0000 | 6 | 18 | 168 | 89 | 156 |
AKD-M01206-Mx*EC-0000 | 12 | 30 | 196 | 95.3 | 187 |
AKD-M02406-Mx*EC-0000 | 24 | 48 | 248 | 100 | 228 |
240/400/480 VAC Trifase | Corrente continua (Arms) | Corrente di picco (Arms) | H (mm) | L (mm) | P (mm) |
AKD-M00307-Mx*EC-0000 | 3 | 9 | 256 | 100 | 185 |
AKD-M00607-Mx*EC-0000 | 6 | 18 | 256 | 100 | 185 |
AKD-M01207-Mx*EC-0000 | 12 | 30 | 256 | 100 | 185 |
AKD-M02407-Mx*EC-0000 | 24 | 48 | 306 | 105 | 228 |
AKD-M04807-Mx*EC-0000 | 48 | 96 | 385 | 185 | 225 |
*) x = C: versione da 0,8 GHz, x = 1: versione da 1,2 GHz
