Kollmorgen Automation Suite™ HMI
Sia che occorra una semplice interfaccia operatore oppure un ambiente di controllo complesso per una macchina con svariati punti di ingresso, la Kollmorgen Automation Suite™ comprende pannelli HMI semplici da programmare con le funzionalità di visualizzazione e di ingresso necessarie praticamente per qualsiasi lavoro.
Prodotto disponibile in tutto il mondo
Caratteristiche
- Le interfacce comandi AKI2G offrono un formato di schermo ampio, sviluppato per garantire il tradizionale rapporto d’aspetto quadrato 4:3.
- Disponibile con corpo in plastica resistente alla corrosione con lato anteriore IP65 oppure corpo in alluminio verniciato a polvere in grigio con IP65, NEMA 4X/12 e lato anteriore UL Type 4X/12. Entrambi i materiali sono resistenti all’azione di pioggia diretta, neve o lavaggi completi, sporco, impurità e polvere.
- La scelta del processore ARM9 efficiente in termini di energia che fornisce una prestazione forte per applicazioni di piccola e media grandezza o i potenti processori ARM A9 disponibili in single o dual core, il processore ARM Cortex-A9 che offre rapidità nei cambi di schermo e nell’esecuzione di programma in applicazioni esigenti.
- Il TFT-LCD ad alta risoluzione con display retroilluminati a LED assicura un’ottima visibilità con ampi angoli di visuale in quasi tutte le condizioni di illuminazione.
- Tavole di migrazione per trovare l’interfaccia comandi adatta quando si desidera aggiornare la soluzione Kollmorgen HMI di cui si dispone alle nuove interfacce operatore AKI.

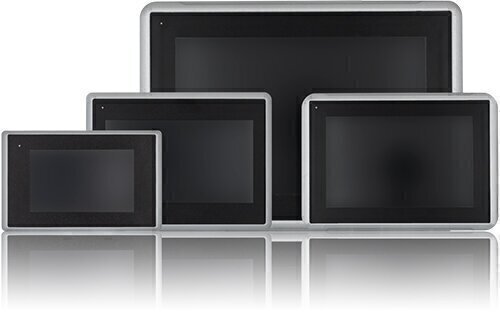

- 5" Touchscreen HMI — 800 x 480 Pixels
- 7" Touchscreen HMI — 800 x 480 Pixels
- 12.1" Touchscreen HMI — 1280 x 800 Pixels
