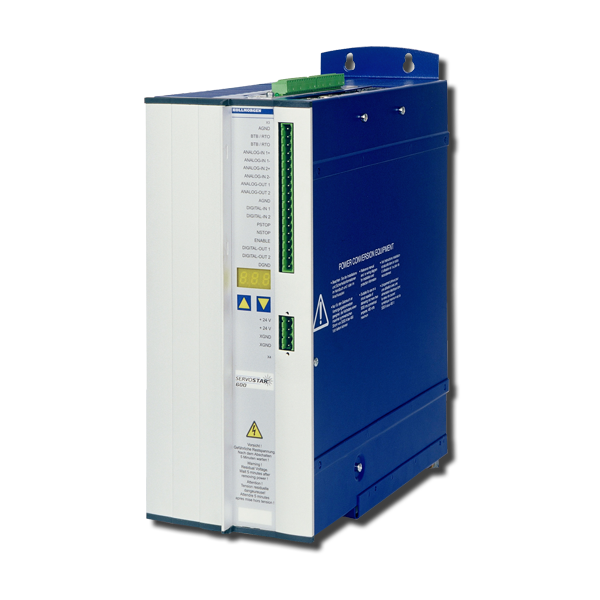

S600
S600 Serisi dijital servo sürücüler doğrudan 230 - 480 VAC hatlarla beslenir ve sürekli 1,5 - 20 Amper RMS/faz çıkış akımı sunar. Akıllı konumlandırma yetenekleri arasında hız profilleri, kayıt kontrolü, sarsıntı sınırlandırma, papatya zinciri görevler, mutlak ve bağıl görevler ve çeşitli türlerde referans traversleri yer alır. Bu sürücüler yalnızca mevcut müşteriler için desteklenmektedir. Yeni uygulamalarda lütfen en uygun ürün için Kollmorgen ekibi ile iletişim kurun.
Ürün dünya çapında mevcuttur
Özellikler
- CE, UL, cUL
- Doğrudan topraklı 3~ damarlı şebeke, 230V ... 480V AC
- Çıkış akımı 1,5A - 20A
- 20A'e kadar entegre frenleme direnci
- 20A'e kadar entegre şebeke filtresi, tüm zırhlı bağlantılar doğrudan amplifikatörde
- Meskun mahallerde servo amplifikatörler kullanıldığında bu ürün yüksek frekans parazitine yol açabilir. İlave filtreleme çözümleri kullanıcı tarafından sağlanmalıdır.
- 300 mm şalter kabinlerinde 20 A'e kadar uygundur
- Kurulum yazılımı ile PC üzerinden çalıştırma
- Step motor kontrolü arayüzleri, master-slave modunda çalıştırma, entegre elektronik dişli
- Entegre 255 hareket bloku için hafızalı pozisyon kontrolcü. Akıllı konumlandırma:
- hız profilleri
- kayıt işareti kontrolü
- sarsıntı sınırlama
- zincir hareket görevleri
- mutlak ve bağıl konumlandırma
- çeşitli ana konuma alma modları
- Incremental ya da absolute seçilebilir kodlayıcı emülasyonu
- Çoklu Geri Besleme Sistemi:
- 36-kutba kadar çözümleyici
- ComCoder
- Hall Sensörlü Incremental ya da Sine Kodlayıcı
- Sine Kodlayıcı, EnDat/HIPERFACE/BISS
- Veri takipsiz Sine Kodlayıcı
- Incremental Kodlayıcı AquadB
Teknik Özellikler
Teknik Veriler
| 601 | 603 | 606 | 610 | 614 | 620 | ||
|---|---|---|---|---|---|---|---|
| Nominal besleme gerilimi | V~ | 3 x 208V-10% ... 480V+%10, 60Hz 3 x 230V-%10 ... 480V+%10, 50Hz |
|||||
| S1 operasyonu için nominal kurulu güç | kVA | 1 | 2 | 4 | 7 | 10 | 14 |
| Nominal DC bağlantı voltajı | V= | 260...675 | |||||
| Nominal çıkış akımı (rms değeri, ± %3) | Kollar | 1,5 | 3 | 6 | 10 | 14 | 20 |
| Tepe çıkış akımı (maks. 5sn, ± %3) | Kollar | 3 | 6 | 12 | 20 | 28 | 40 |
| Süreli güç rejeneratif devresi (RBint) | W | 80 | 80 | 200 | 200 | 200 | 200 |
| Süreli güç rejeneratif devresi (RBext) maks. | kW | 0,5 | 0,5 | 1,5 | 1,5 | 1,5 | 1,5 |
| Tepe güç rejeneratif devresi (RBext) maks. | kW | 21 | 21 | 21 | 21 | 21 | 21 |
300/400mm şalt cihazı kabinleri için boyutlar
| 601/603/606/610 | 614 | 620 | |
|---|---|---|---|
| Yükseklik | 275 mm | 275 mm | 275 mm |
| Genişlik | 70 mm | 100 mm | 120 mm |
| Derinlik | 265 mm | 265 mm | 265 mm |
| Derinlik, konektörlerle | 273 mm | 273 mm | 273 mm |
