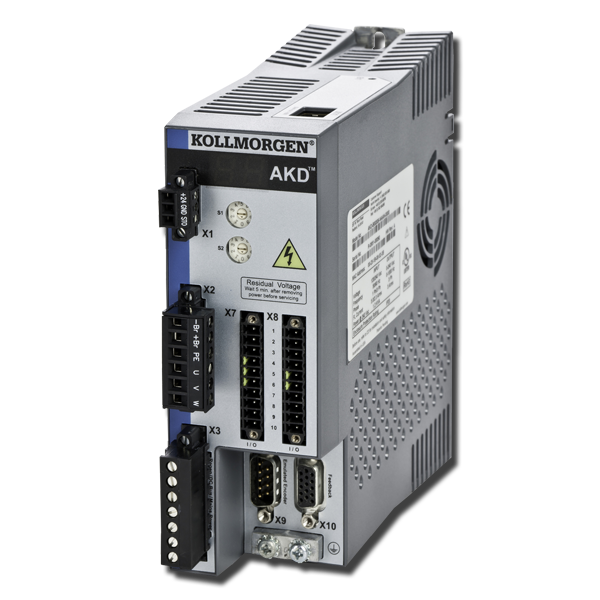

AKD® BASIC Programlanabilir Sürücüler
AKD® BASIC Seri makine ve BASIC kullanarak Kollmorgen entegre geliştirme ortamı programlanabilir hareket kontrolü dahili ile birlikte, AKD Serisi tüm performans özellikleri sunar.
Dünya çapında temin edilebilen ürün
Özellikler
Faydaları
- 1.5-eksen kontrolü (1 gerçek, 1 sanal ekseni) için sürücü yerleşik Makine kontrolü ve yüksek performanslı hareket kontrol cihazı
- Standart versiyon:
- 7 programlanabilir dijital giriş (etkinleştirmek için adanmış +1)
- 2 yapılandırılabilir dijital çıkış (+1 hata rölesi)
- 1 analog giriş ve 1 analog çıkış
- Devreye alma, programlama ve Modbus TCP / IP Ethernet Servis portu
- I / O sürümü Genişletilmiş:
- (Etkinleştirmek için adanmış 1) 20 dijital giriş
- 12 dijital çıkış (1 özel hata rölesi)
- 2 analog giriş ve 2 analog çıkış
- Program ve parametre depolama için SD bellek kartı
- Bizim AKD Serisi ile aynı güç ve gerilim seviyelerinde mevcuttur
- Koşullu ifadeler kullanma yeteneği de dahil olmak üzere BASIC programlama dili,
- Programlama arabirimi AKD WorkBench standart bir özelliktir ve bu otomatik dizim, otomatik tamamlama, otomatik biçim ve kod şablonları gibi kolaylığı kullanım özellikleri içerir
- Source code lockout feature with password protection
Faydaları
- Bir on-sürücü BASIC-programlanabilir sürücü / denetleyici ilavesi ile, AKD ® Serisi çok yönlülük ve kullanım kolaylığı için yeni bir kilometre taşı elde
- AKD BASIC ayrı bir kontrol için gerek kalmadan, tek eksenli uygulamalar standart AKD sürücü ile aynı paket boyutlarda ele alınması sağlar
- Genişletilmiş I / O sürümü uzak I / O ihtiyacını ortadan kaldırarak ve tam bir makine / hareket kontrolü paket olarak hizmet etmek için daha da büyük bir yeteneği sağlayan, ek dijital ve analog giriş / çıkış entegre
- Ayrı bir PLC ihtiyacını ortadan kaldırarak büyük ölçüde tasarım zamanında, kablolama gereksinimleri, panel alanı ve toplam maliyetini düşürür
- BASIC programlama dili öğrenmek çok kolay, yaygın olarak kullanılan ve daha karmaşık hareket süreçlerinin daha hızlı programlama sağlar
- BASIC koşullu ifadeler, kam, S-eğrisi, sınırsız hareket profilleri ve daha gelişmiş hareket için diğer teknikleri destekler
- AKD WorkBench içinde menü güdümlü programlama akıllı biçimlendirme, şablonlar ve kalkınma hızı ve kod belgelerinde yardımcı olmak için hata ayıklama yetenekleri sunuyor
- Genişletilmiş I / O sürümü PC için gerek kalmadan, kolay program aktarımı ve bakım için SD hafıza kartı desteği
- Kaynak kodu lokavt fikri mülkiyet ve makinenizin ayırt özelliklerini korur
Spesifikasyonlar
|
120/240 VAC 1 & 3 Phase (85-265 V) |
Continuous Current (A RMS) |
Peak Current (A RMS) |
Drive Continuous Output Power (Watts) |
|---|---|---|---|
| AKD-x00306 | 3 | 9 | 1,100 |
| AKD-x00606 | 6 | 18 | 2,000 |
| AKD-x01206 | 12 | 30 | 4,000 |
| AKD-x02406 | 24 | 48 | 8,000 |
|
240/480 Vac 3 Phase (187-528 V) |
Continuous Current (A RMS) |
Peak Current (A RMS) |
Drive Continuous Output Power (Watts) |
| AKD-x00307 | 3 | 9 | 2,000 |
| AKD-x00607 | 6 | 18 | 4,000 |
| AKD-x01207 | 12 | 30 | 8,000 |
| AKD-x02407 | 24 | 48 | 16,000 |
| AKD-x04807 | 48 | 96 | 32,000 |
