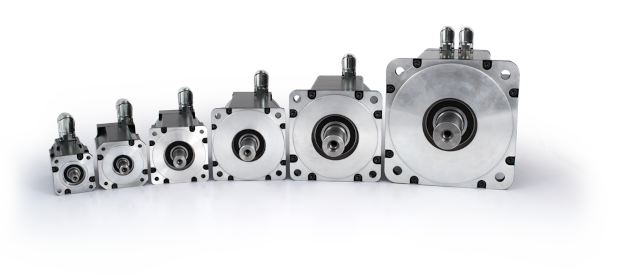

Industrial Servo Motors
Kollmorgen offers a complete range of high-precision servo motors in both housed and frameless designs. We offer standard and heavy-duty servo motors along with food-grade and washdown designs, explosion proof motors, low-voltage models, and other specialized servo motors to suit practically any application requirement.
Paired with our servo drives, Kollmorgen’s industrial servo motors efficiently deliver high torque even at high speeds. With our extensive modification capabilities, Kollmorgen can help you achieve a custom-like fit in standard motor that is manufacturable at scale and delivered on your time frame.
Exclusive Kollmorgen Servo Motor Resources
Specifications
AKM2G Performance Data (by frame size)
| AKM2G-2x | AKM2G-3x | AKM2G-4x | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Parameter | Sym | Unit | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 1 | 2 | 3 | 4 |
| Continuous Torque at Stall | Tc | Nm | 0.65 | 1.12 | 1.51 | 1.85 | 1.70 | 2.90 | 3.86 | 2.87 | 5.12 | 6.98 | 8.51 |
| Rated Speed | Nrtd | rpm | 8000 | 8000 | 8000 | 8000 | 8000 | 7600 | 8000 | 6000 | 6000 | 6000 | 5400 |
| Rotor Inertia | Jn | kg-cm2 | 0.0930 | 0.1549 | 0.2169 | 0.2789 | 0.4264 | 0.8130 | 1.200 | 0.774 | 1.36 | 1.95 | 2.53 |
| AKM2G-5x | AKM2G-6x | AKM2G-7x | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Parameter | Sym | Unit | 1 | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | 4 |
| Continuous Torque at Stall | Tc | Nm | 6.83 | 12.0 | 16.2 | 20.1 | 15.3 | 21.5 | 27.0 | 32.7 | 23.0 | 41.1 | 57.8 | 72.1 |
| Rated Speed | Nrtd | rpm | 6000 | 5600 | 5100 | 4800 | 5000 | 4500 | 4200 | 3800 | 4900 | 3400 | 3200 | 3000 |
| Rotor Inertia | Jn | kg-cm2 | 2.52 | 4.58 | 6.64 | 8.70 | 9.10 | 13.0 | 16.9 | 20.8 | 25.9 | 46.8 | 67.7 | 88.6 |
