S700 Servo Sürücü

S700, karmaşık sürücü görevleri için ideal olan genişletilmiş işlevselliğe sahip dijital bir servo tahriktir. EtherCAT® ve SynqNet™ ile kullanım için yerleşik Ethernet bağlanabilirliği içerir ve isteğe bağlı MMC bellek kartı parametre kayıtlarının ve bellenimin sahada kolayca yedeklenebilmesine imkan sağlar. Güvenli Tork Kapalı işlevi standart olup diğer güvenlik işlevleri de eklenebilir. Tüm önemli geri besleme sistemleri Tek Kablo Feedback SFD3 ve Hiperface DSL de dahil olmak üzere desteklenmektedir.

Global
Dünya çapında temin edilebilen ürün

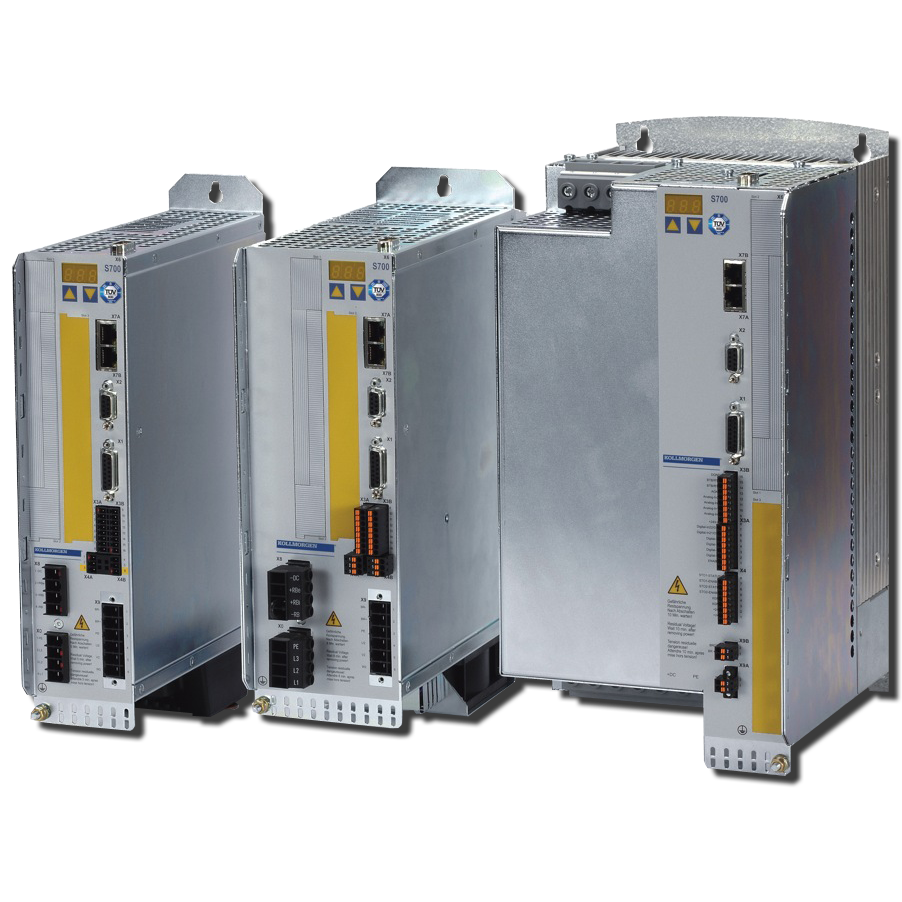

Kollmorgen S700 Servo Sürücü ve Güvenlik

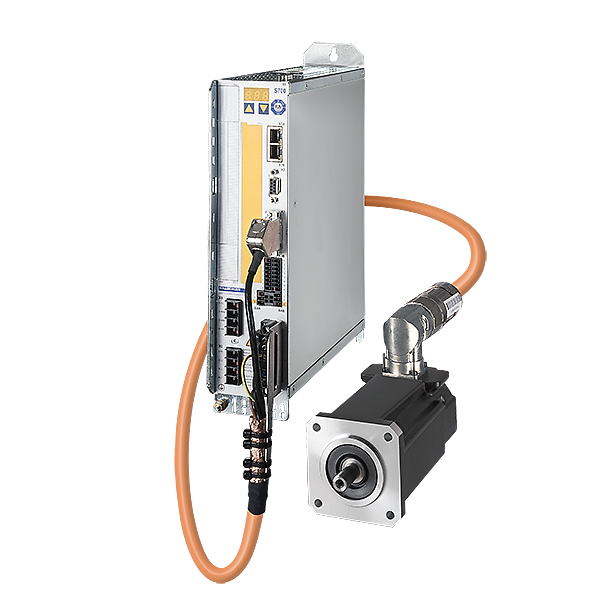

Kollmorgen S700 Servo Sürücüler Tek Kablo

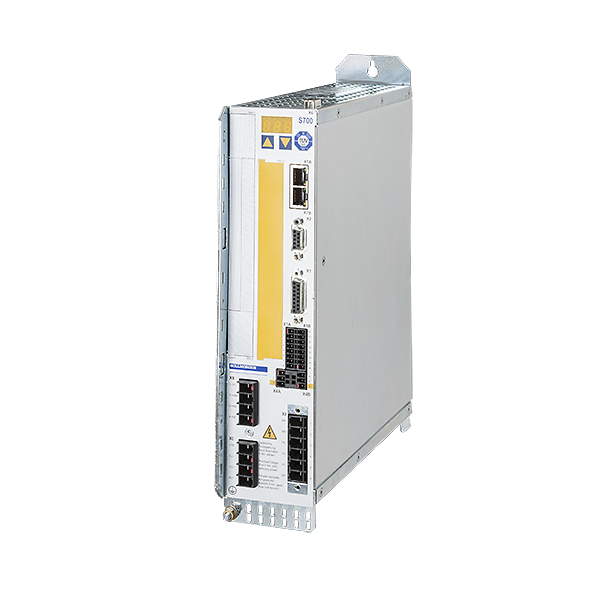

Kollmorgen S700 Servo Sürücüler

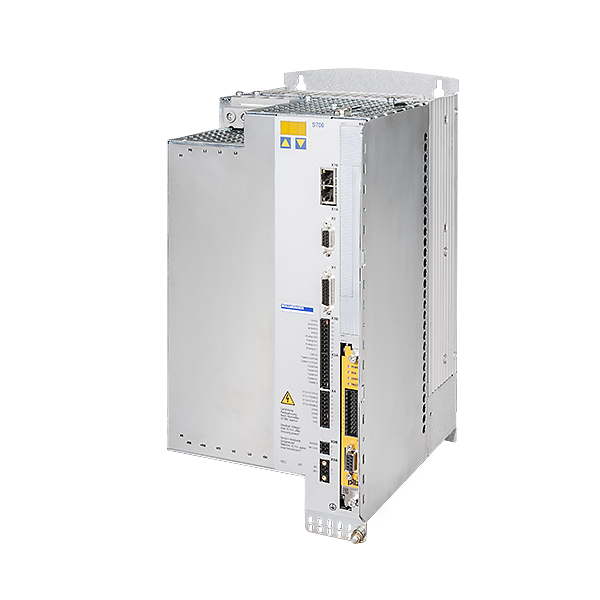

Kollmorgen S748 Servo Sürücüler

Özellikler

Özellikler

  • CE, UL, TÜV güvenlik testlerinden geçmiştir, EAC
  • Doğrudan topraklı 110 ila 480 VAC, 1 veya 3-faz, 50 ila 60 Hz hatlardan işletim
  • 1,5 ila 72 Amper RMS/fazdan maksimum sürekli çıkış akımına sahip modeller
  • Yerleşik Güvenli Tork Kapalı (STO) işlevi
  • Güvenlik genişletme kartları SDI, SLS, SS1, SS2, SBC gibi SIL2 veya SIL3 güvenlik işlevleri ile kullanılabilir.
  • Yerleşik EtherCAT® ve CANopen veri yolu iletişimi
  • Tek Kablo Feedback SFD3 ve Hiperface DSL
  • Parametrelerin ve bellenimin yedeklenmesi ve kopyalanması için MMC bellek kartı yuvası
  • En uygun duruma getirilmiş çözücü arabirimi
  • Otom. ince ayar
  • Dişli geçme baskılama
  • Piyasadaki en hızlı geri bildirim değerlendirmesi



Faydaları

  • Yüksek hızlı akım, hız ve konum kontrolü daha yüksek makine döngü oranlarını netice verir
  • Güvenlik işlevleri SIL2 / SIL3, makine kullanılabilirliğini artırır
  • İçerideki IEC 61131 makro programlama dili hareketi esnekleştirir
  • Çoklu arabirim ve çoklu geri bildirim özellikleri çoklu tahrik türlerinin istiflenme ihtiyacını azaltarak tüm standart denetleyici ve geri bildirim sistemlerine uyumluluk sağlar
  • Yerleşik EMC filtreleri ile entegre güç kaynağı ve fren direnci daha küçük ana şalter kabinlerine imkan sağlar
  • Parametre ve bellenim güncellemeleri için bellek kartı, otom. ince ayar özellikleri ve tüm bağlantılar için konektörler daha hızlı kurulumu kolaylaştırır

Spesifikasyonlar

Teknik Veriler



Anma verileri

DIM

S701

S703

S706

S712

S7120P

S724

S7240P

S748

S772

Anma hat gerilimi

V~

3 x 208V-%10 … 3 x 480V+%10, 50/60 Hz

S1 işletimi için anma hat gücü

kVA

1,1

2,2

4,5

9

9

18

18

35

50

Yardımcı besleme

V=





24





Anma DC bağlantı gerilimi

V=





290-675





Anma çıkış akımı (RMS değeri)

-3 x 208 V'ta

A RMS

2,5

5

6

12

12

24

24

48

72

-3 x 230 V'ta

A RMS

2

4

6

12

12

24

24

48

72

-3 x 400 V'ta

A RMS

1,5

3

6

12

12

24

24

48

72

-3 x 480 V'ta

A RMS

1,5

3

6

12

12

24

24

48

70

pik çıkış akımı (RMS değeri)

A RMS

4,5

9

18

24

30

48

72

96

140



Boyutlar



Anma verileri

DIM

S701

S703

S706

S712

S7120P

S724

S7240P

S748

S772

Fan dahil yükseklik (H)

mm

345

348

385

(W) Genişlik

mm

70

100

190

Konektör dahil (D) Derinlik

mm

243



Faaliyete Geçin
