Soluções de Segurança KSM Significativamente Melhoram a Produtividade Com o KSM, a Kollmorgen completa sua cadeia de segurança de movimento
  • Maior produtividade usando o Conceito de Movimento de Segurança
  • Baixos custos de sistemas usando componentes comerciais padrões
  • Soluções de segurança flexíveis e expansíveis, utilizando um design modular
  • Testado e certificado pela TUV, alcançando PLe (ISO 13849) e SIL3 (IEC 61508)
  • Interfaces perfeitas para o Kollmorgen AKD, o ServoStar e os sistemas de movimento KAS
  • Todas funções importantes de movimento seguro estão disponíveis com os módulos

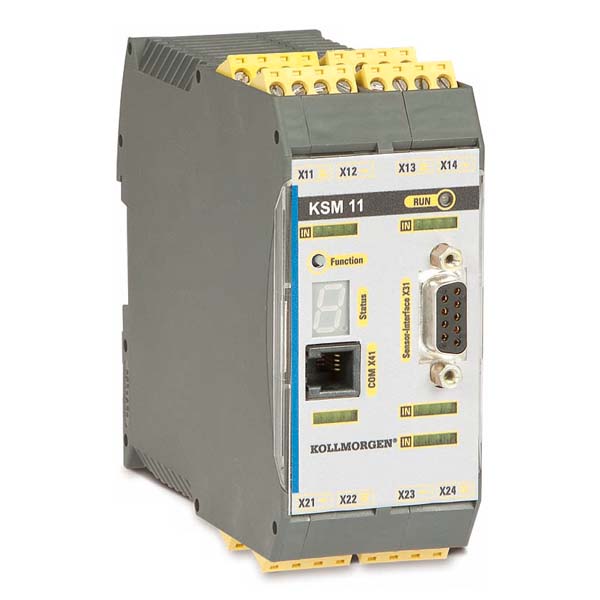

Módulo de Segurança KSM-Compacto
  • Para 1 ou 2 eixos seguros
  • Até 2 módulos de expansão
  • Unidade de base com 16 I/O
  • Expansível até 60 I/O
  • 1 retransmissão de saída segura, expansível
  • 2 saídas de pulso, 2 saídas de sinal
  • Expansível até 6 saídas de pulso e 6 saídas de sinal
  • Até 800 blocos de função
  • Economia de espaço, design compacto
KSM-modular PLC de Segurança
  • Até 12 eixos seguros
  • Até 8 módulos de expansão
  • Unidade de base com 56 I/O
  • Expansível até 200 I/O
  • 1 retransmissão de saída segura, expansível
  • 2 saídas de pulso, até 10 saídas de sinal
  • Expansível até 14 saídas de pulso e 22 saídas de sinal
  • Até 3000 blocos de função
  • Para aplicações com grande número de interfaces
Funções de segurança disponíveis (PLE & SIL3)
  • Função de Parada Segura: STO, SS1, SS2, SOS
  • Função de Velocidade Segura: SLS, SSM, SSR, SMS
  • Função de Posição Segura: SLP, SCA, SLI
  • Função de Direção Segura: SDI
  • Função de Freio Segura: SBC
Connectivity:
  • EtherCAT
  • CANopen
  • Profinet
  • PROFIsafe e EtherCAT FSOE
Especificações

Especificações

  Unidades de Base Módulos de Expansão
KSM-modular   KSM 100-1 KSM 100-2 KSM 100-4 KSM 121/-2 KSM 122/-2 KSM 122A KSM 131 KSM 131R
KSM-compacto KSM 11 KSM 12     KSM 31 KSM 31R KSM 5x
Módulos de Expansão 2 2 8/6 1) 8/6 1) 8/6 1)
Eixos de Segurança 1 2 Até 6 com 6 KSM 121 Módulos Até 12 wcom 6 KSM 122 Módulos 1 3) 2 4) 2 4)
Eixo de Interface 2) Até 2 Até 2 Até 2 Até 2 1
Entrada Digital Segura 14 14 14 14 14 12 12 12 12 12
Segurança Digital I/O5) - - - 20 40 - - - 10 2
Saída Digital Segura 2 2 2 2 2 - - - - -
Entrada Analógica Segura - - - - - - - 2 - 4
Relé Segura 1 1 1 1 1 - - - 2 4
Sinal de Saída 2 2 2 6 10 - - - 2 -
Saída de Pulso 2 2 2 2 2 - - - 2 -
Comunicações 6) Com KSM 5x Opção, a bordo   Sim
Blocos de Função 800 800 3000 3000 3000

1): Até 6 módulos de expansão KSM 121/122
2): Interface de um único eixo: somente o monitoramento da velocidade de segurança. Duas interfaces de eixo: velocidade de segurança e monitoramento de posição segura
3): Até 6 eixos com 6 KSM 121 módulos
4): Até 12 eixos com 6 KSM 122 (A) módulos
5): Atribuível como entradas ou saídas
6): EtherCAT, CANopen, ou Profinet (PROFIsafe e EtherCAT FSOE)
