Kollmorgen Automation Suite™ HMI

Quer você precise de uma interface do operador simples ou um ambiente de controle complexo para uma máquina com múltiplos pontos de entrada, a Kollmorgen Automation Suite™ inclui painéis HMI que são simples de programar com o monitor e as capacidades de entrada que você precisa para praticamente qualquer trabalho.

Global
Produto disponível em todo o mundo

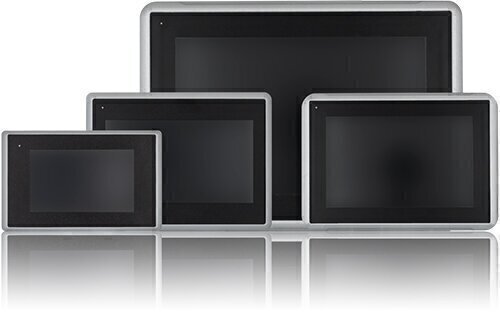

Kollmorgen HMI Large Image

Recursos

  • Os painés de operação da AKI2G oferecem um formato wide screen, desenvolvido para suceder o aspecto quadrado tradicional 4:3.l.
  • Disponível em carcaça plástica resistente à corrosão com a parte da frente em IP65, ou numa robusta carcaça de alumínio cinza também IP65, com frontal NEMA 4X/12 e o padrão UL 4X/12. Ambas resistentes à contato direto com chuva, neve, lavagens, poeira, sujeira e fuligem.
  • É possível escolher processadores eficientes e podereosos da família ARM9. Disponível em núcleo simples ou dual-core ARM Cortex-A9, o que entrega rápidas mudanças de telas e execução de programas em aplicações de alta demanda.
  • A tela de alta resolução TFT-LCD com backlight em LED garante boa visibilidade em uma visualização de vastos ângulos em quase qualquer condição de iluminação.
  • As tabelas de migração encontram o painel correto quando você deseja atualizar a sua solução já existente de IHM Kollmorgen para novos painéis AKI.
  • IHM Touchscreen de 5” – 800 x 480 Pixels
  • IHM Touchscreen de 7” – 800 x 480 Pixels
  • IHM Touchscreen de 12,1” – 1280 x 800 Pixels

Experimente já

Conte com a ajuda da Kollmorgen para projetar e construir uma máquina de sucesso e mantê-la produtiva com segurança, em qualquer parte do mundo. Nossos especialistas em coengenharia trabalharão com você para desenvolver uma solução perfeita para as suas exigências de movimentação.

Fale com um especialista em movimentação
Documentação
Título Idioma Data Tamanho
pdfKAS HMI Installation Manual (AKI-CDA-MOD-04T) PT (REV B) Portuguese, Brazil 24 Out 2014 812.54 KB Copy URL
pdfKAS HMI Installation Manual (AKI-CDA-MOD-07T) PT (REV B) Portuguese, Brazil 24 Out 2014 808.39 KB Copy URL
