Servo Drive S700

O S700 é um Servo Drive digital com recursos estendidos ideal para tarefas mais complexas. Ele incorpora conectividade Ethernet integrada para utilização com EtherCAT® e SynqNet™, e o cartão de memória MMC opcional que permite o backup de registros dos parâmetros e o fireware. A função de torque seguro é padrão e outras funções de segurança podem ser adicionadas. Feedback de Cabo Único com ambos SFD3 e Hiperface DSL também é suportado.

Fale Conosco

Global
Produto disponível em todo o mundo

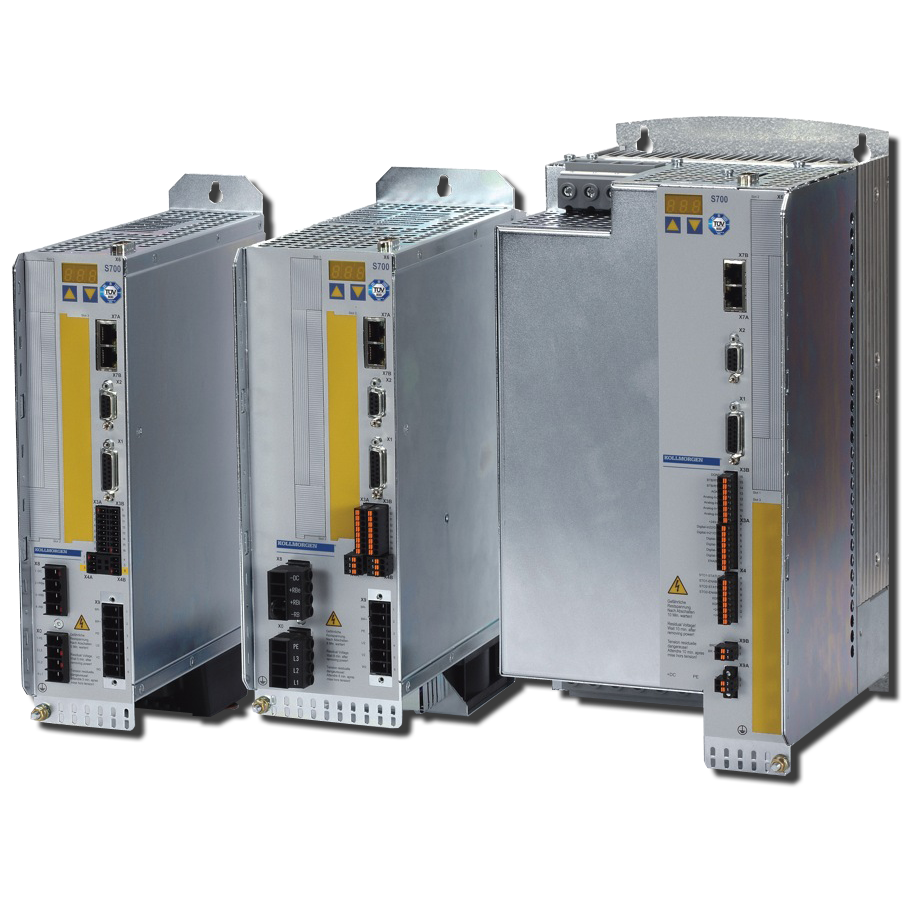

família S700 imagem grande

Recursos

Recursos

  • CE, UL, TÜV testados para segurança
  • Operação diretamente de 110 a 480 VAC de aterramento, 1 ou 3-fases, linhas 50 a 60 Hz
  • Modelos com corrente de saída contínua máxima de 1,5 a 72 A RMS/fase
  • Função torque seguro desligado (STO)
  • Cartão de expansão de segurança com funções de segurança SIL2 e SIL3 como SDI, SLS, SS1, SS2, SBC e outras.
  • Comunicação de barramento integrada EtherCAT® e CANopen
  • Feedback SFD3 e Hiperface DSL de Cabo Único.
  • Slot para cartão de memória MMC para backup e cópia de parâmetros e fireware
  • Interface determinadora otimizada
  • Afinação automática
  • Supressão de desgaste
  • Avaliação de feedback mais alta do mercado

Benefícios

  • Corrente de alta velocidade, velocidade e controle de posição resultam em maiores taxas de ciclo da máquina
  • Funções de segurança SIL2 / SIL3 aumentam a disponibilidade da máquina
  • A linguagem de programação macro IEC61131 interna faz com que o movimento seja flexível
  • A interface múltipla e os recursos de feedback múltiplo fornecem compatibilidade com todos os controles e sistemas de feedback padrão, reduzindo a necessidade de ter vários tipos de drive
  • Os filtros EMC e fonte de energia integrados e o resistor do freio permitem que os gabinetes de distribuição sejam menores
  • O cartão de memória para atualizações de parâmetros e fireware, os recursos de sintonia automática e conectores para todas as conexões facilitam a configuração mais rápida

Fale Conosco

Especificações

Dados técnicos

Dados relacionados DIM S701 S703 S706 S712 S7120P S724 S7240P S748 S772
Voltagem de linha nominal V~ 3 x 208 V-10% … 3 x 480 V+10%, 50/60 Hz
Energia nominal de linha para a operação do S1 kVA 1,1 2,2 4,5 9 9 18 18 35 50
Fornecimento auxiliar V=     24
Voltagem nominal do DC link V=     290-675
Corrente nominal de saída (valor RMS)
-At 3 x 208 V A RMS 2,5 5 6 12 12 24 24 48 72
-At 3 x 230 V A RMS 2 4 6 12 12 24 24 48 72
-At 3 x 400 V A RMS 1,5 3 6 12 12 24 24 48 72
-At 3 x 480 V A RMS 1,5 3 6 12 12 24 24 48 70
Pico de corrente de saída (valor RMS) A RMS 4,5 9 18 24 30 48 72 96 140

Dimensões

Dados relacionados DIM S701 S703 S706 S712 S7120P S724 S7240P S748 S772
(H) Altura incluindo ventilador mm 345 348 385
(W) Largura mm 70 100 190
(D) Profundidade incluindo conector mm 243
