Unidades Servo - Drives AKD ®

A série AKD ® da Kollmorgen inclui uma linha completa de servo drives com base em Ethernet, mais velozes e com muitos recursos. Esses drives de última geração sao flexíveis e fáceis de integrar em qualquer aplicação, e oferecem comissionamento plug-and-play para acesso instantâneo e sem interrupção do trabalho de sua máquina. Em conjunto com os nossos servo componentes líderes no mercado, os drives AKD oferecem opções de comunicação, desempenho e níveis de energia — tudo isso com dimensões reduzidas.

Global
Produto disponível em todo o mundo

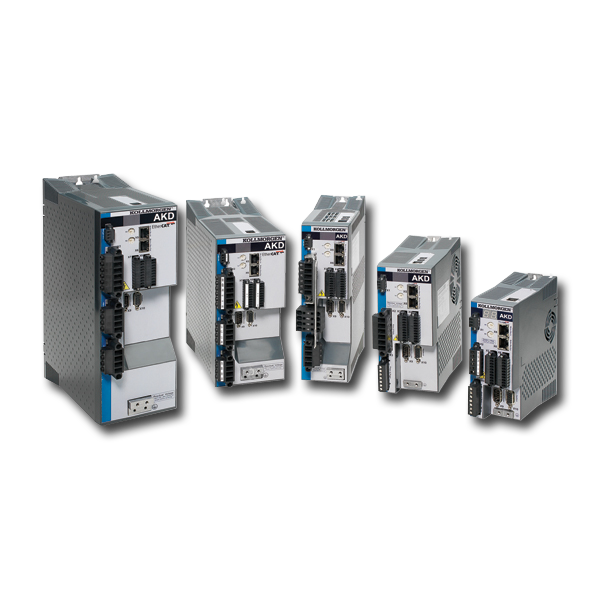

Imagem AKD grande
Industry 4.0 Ready

Comissionamento e otimização rápidos

Use os gráficos de Bode multifuncionais de autotuning do software WorkBench para otimização do desempenho, e captura e compartilhamento com um clique de gráficos de programas e configurações de parâmetros para colocar a máquina em funcionamento rapidamente.

MAIS RECURSOS

Recursos

Recursos

  • Pode ser incorporado ao nosso inovador Kollmorgen Automation Suite™ para sistemas de alto desempenho de um ou vários eixos.
  • A interface gráfica do WorkBench da Kollmorgen facilita a configuração e programação.
  • Compatibilidade plug-and-play com os motores Kollmorgen
  • I/Os isolados opticamente com conectores com terminal de parafusado
  • Maior largura de banda para as malhas de velocidade e posição. Malha de corrente digital mais rápida do mercado.
  • Autotuning em todas as frequências guiado por um assistente virtual
  • Rápida aquisição de dados compatível com PC via Ethernet TCP/IP
  • Feedback de alto desempenho em tempo real
  • Dispositivos de feedback: Smart Feedback Device (SFD), EnDat 2.2 e 2.1, BiSS, encoder analógico Sine/Cos, encoder incremental, HIPERFACE® e resolver
  • Várias opções de protocolos para a otimização do sistema, inclusive EtherCAT®, EtherNet/IP, PROFINET RT, Modbus/TCP, CANopen® e SynqNet™.
  • Qualificação SIL, sobretensão, corrente e detecção da temperatura fornecidas para maior segurança
  • Placas opcionais disponíveis para aumentar a quantidade de E/S, adicionar memória NVRAM e potencialize o poder de processamento

Benefícios

  • Fácil de usar, com configuração plug-and-play do motor, auto-tuning avançado e interface gráfica intuitiva para programação e resolução de falhas
  • O drive mais rápido de sua categoria, que proporciona um movimento mais preciso e o máximo rendimento
  • Versátil, com suporte a várias opções de conectividade Ethernet, dispositivos de feedback, opções de protocolos de comunicação e muito mais
  • Robusto e compacto, líder no segmento
  • Amplo range de potência que se adaptam a praticamente qualquer aplicação

Especificações

120/240 VCA
1 e 3 fases (85-265 V)
Corrente
Contínua (A RMS)
Corrente de pico
(A RMS)
Energia de Saída
Contínua (Watts)
AKD-x00306 3 9 1100
AKD-x00606 6 18 2000
AKD-x01206 12 30 4000
AKD-x02406 24 48 8000
240/480 Vca
3 fases (187-528 V)
Corrente
Contínua (A RMS)
Corrente de pico
(A RMS)
Energia de Saída
Contínua (Watts)
AKD-x00307 3 9 2000
AKD-x00607 6 18 4000
AKD-x01207 12 30 8000
AKD-x02407 24 48 16,000
AKD-x04807 48 96 32,000

Não está encontrando o que procura?

EXPLORAR A FAMÍLIA AKD

Desenvolva sua solução em movimentação

Experimente já

Conte com a ajuda da Kollmorgen para projetar e construir uma máquina de sucesso e mantê-la produtiva com segurança, em qualquer parte do mundo. Nossos especialistas em coengenharia trabalharão com você para desenvolver uma solução perfeita para as suas exigências de movimentação.

Fale com um especialista em movimentação

Por mais de 100 anos, a Kollmorgen tem desenvolvido soluções inovadoras que transformam grandes ideias em realidade, deixam o mundo mais seguro e melhoram vidas. Nosso histórico de confiança é incomparável, e nossas soluções são validadas por centros de engenharia de excelência e serviços ao cliente em todas as principais regiões do mundo.

Veja o impacto global da Kollmorgen   |   Descubra a diferença da Kollmorgen
Documentação
Título Idioma Data Tamanho
Ajuda do Workbench Portuguese, Brazil 11 Abr 2017 Copy URL
pdfAKD Betriebsanleitung DE (REV AF) German 02 Fev 2022 16.15 MB Copy URL
pdfAKD CANopen Communications Manual EN (REV Y) English 12 Nov 2020 2.27 MB Copy URL
pdfAKD CANopen Communications Manual FR (REV F) French 14 Nov 2013 1.58 MB Copy URL
pdfAKD CANopen Communications Manual ZH (REV T) Chinese, Simplified 13 Nov 2017 2.4 MB Copy URL
pdfAKD CANopen Kommunikationshandbuch DE (REV Y) German 12 Nov 2020 2.48 MB Copy URL
pdfAKD CANopen Manuale IT (REV F) Italian 01 Mar 2012 1.61 MB Copy URL
pdfAKD Control Box Schematic English 03 Nov 2015 45.35 KB Copy URL
pdfAKD EtherCat Communications EN Manual (REV U) English 12 Nov 2020 3.19 MB Copy URL
pdfAKD EtherCat Communications Manual FR (REV F) French 01 Mar 2012 930.32 KB Copy URL
pdfAKD EtherCat Kommunikationshandbuch DE (REV U) German 12 Nov 2020 5.25 MB Copy URL
pdfAKD EtherCat Manuale IT (REV F) Italian 01 Mar 2012 940.79 KB Copy URL
pdfAKD EtherNetIP Communications Manual EN (REV H) English 07 Nov 2018 830.9 KB Copy URL
pdfAKD EtherNetIP with RSLogix Communications Manual EN (REV K) English 12 Nov 2020 934.01 KB Copy URL
pdfAKD Fault Card EN (REV U) English 12 Nov 2020 2.79 MB Copy URL
pdfAKD Fault Card PT (REV U) Portuguese, Brazil 15 Dez 2020 2.9 MB Copy URL
pdfAKD Fault Card ZH (REV M) Chinese, Simplified 15 Dez 2020 3.01 MB Copy URL
pdfAKD Guide de démarrage rapide FR (REV A) French 01 Fev 2010 891.44 KB Copy URL
pdfAKD HMI Modbus Communications Manual EN (REV A) English 13 Dez 2014 881.5 KB Copy URL
pdfAKD Installation Manual EN (REV AF) English 02 Fev 2022 15.61 MB Copy URL
pdfAKD Installation Manual RU (REV AF) Russian 02 Fev 2022 16.89 MB Copy URL
pdfAKD Installation Manual ZH (REV AF) Chinese, Simplified 02 Fev 2022 15.78 MB Copy URL
pdfAKD manual de instruções PT (REV AF) Portuguese, Brazil 02 Fev 2022 15.6 MB Copy URL
pdfAKD Manuale di installazione IT (REV AF) Italian 02 Fev 2022 16.68 MB Copy URL
pdfAKD Manuel d’Instructions FR (REV AF) French 02 Fev 2022 16.5 MB Copy URL
pdfAKD ProfiNet Communications Manual EN (REV P) English 10 Dez 2019 2.16 MB Copy URL
pdfAKD ProfiNet Kommunikationshandbuch DE (REV P) German 10 Dez 2019 3.51 MB Copy URL
pdfAKD Quick Start EN (REV F) English 01 Fev 2016 1.5 MB Copy URL
pdfAKD Quick Start PT (REV F) Portuguese, Brazil 23 Mai 2016 5.74 MB Copy URL
pdfAKD Quick Start ZH (REV E) Chinese, Simplified 01 Fev 2016 1.35 MB Copy URL
pdfAKD Safety Notes EN DE FR IT PT ES RU ZH (REV E) Chinese, Simplified, English, French, German, Italian, Portuguese, Brazil, Russian, Spanish 21 Jan 2022 954.1 KB Copy URL
pdfAKD Sercos Communications Manual EN (REV D) English 01 Fev 2016 426.5 KB Copy URL
pdfAKD SynqNet Communications Manual EN (REV F) English 12 Nov 2020 534.42 KB Copy URL
pdfAKD Typenschlüssel German 16 Out 2017 123.15 KB Copy URL
AKD WorkBench Online Help/User Guide English 10 Dez 2019 Copy URL
pdfAKD2G, AKD Accessories Guide Europe EN (REV 08-2021) English 07 Set 2021 7.02 MB Copy URL
pdfAKD2G, AKD and S700 Accessories Guide North America EN (REV K) English 29 Set 2020 5.36 MB Copy URL
pdfAKD2G, AKD Zubehörhandbuch Europa DE (REV 08-2021) German 07 Set 2021 7.03 MB Copy URL
pdfCANopen PDO Setup Objects English 10 Jan 2011 16.36 KB Copy URL
pdfCANopen Protocol Quick Reference Guide English 02 Jul 2008 57.74 KB Copy URL
pdfKC1 Installation Manual ZH (REV J) Chinese, Simplified 11 Abr 2017 7.18 MB Copy URL
pdfPart Number Scheme AKD-B/P/T/M English 15 Set 2021 483.91 KB Copy URL
WorkBench Online Hilfe German 05 Jan 2022 Copy URL
WorkBench 帮助 Chinese, Simplified 10 Out 2016 Copy URL
pdf科尔摩根AKD驱动器安装手册_2020 Chinese, Simplified 07 Set 2021 17 MB Copy URL
Relatórios Técnicos
Título Idioma Data Tamanho
pdfA Simplified Machine Design Approach for Optimal Servomotor Control English 05 Fev 2015 522.96 KB Copy URL
pdfAKD System Configuration For the Kollmorgen DDL Linear Motors EN (REV N) English 13 Ago 2017 2.98 MB Copy URL
pdfFixação da malha dos cabos (servos AKMx) na placa de aterramento do drive AKD Portuguese, Brazil 22 Dez 2014 331.9 KB Copy URL
pdfGrounding and Shielding Existing Equipment English 04 Mai 2012 407.27 KB Copy URL
pdfServo Motor Phasing with Hall Commutation English 05 Fev 2015 524.36 KB Copy URL
pdfServomotor Parameters and their Proper Conversions for Servo Drive Utilization and Comparison English 05 Fev 2015 656.98 KB Copy URL
pdfSetup Instructions for TwinCAT3 with the AKD English 23 Fev 2016 533.15 KB Copy URL
pdf科尔摩根AKD驱动器入门手册_2015 Chinese, Simplified 07 Set 2021 1.35 MB Copy URL
pdf科尔摩根AKD驱动器故障信息索引_2020 Chinese, Simplified 07 Set 2021 3.01 MB Copy URL
Dados
Título Idioma Data Tamanho
pdfAKD-xzzzz-0069 Datasheet DE (REV 01/2019) German 29 Jan 2019 333.82 KB Copy URL
pdfAKD-xzzzz-0069 Datasheet EN (REV 01/2019) English 29 Jan 2019 330.18 KB Copy URL
Kollmorgen 2G Cable Guide English 14 Mar 2019 Copy URL
Brochura
Título Idioma Data Tamanho
AKD Components Brochure EN revB English 06 Out 2011 1.81 MB
AKD Scalability Brochure EN RevC English 20 Out 2014 5.32 MB
Catálogo
Título Idioma Data Tamanho
Kollmorgen 2G Cable Guide English 14 Mar 2019 21.67 MB
Kollmorgen Automation and Motion Control English 14 Jun 2021 15.53 MB
Kollmorgen Automation Solutions and Product Catalog EMEA English 21 Jun 2018 15.99 MB
