Servoazionamento S700

S700 è un servoazionamento digitale con funzionalità estesa ideale per funzioni di azionamento complesse. Comprende una connettività Ethernet integrata per uso con EtherCAT® e SynqNet™, e la scheda di memoria MMC opzionale consente di eseguire facilmente un backup sul campo dei registri di parametri e del firmware. La funzione STO (Safe Torque Off, disinserimento in sicurezza) fa parte della dotazione standard, e si possono aggiungere altre funzioni di sicurezza.

Contatto

Globale
Prodotto disponibile in tutto il mondo

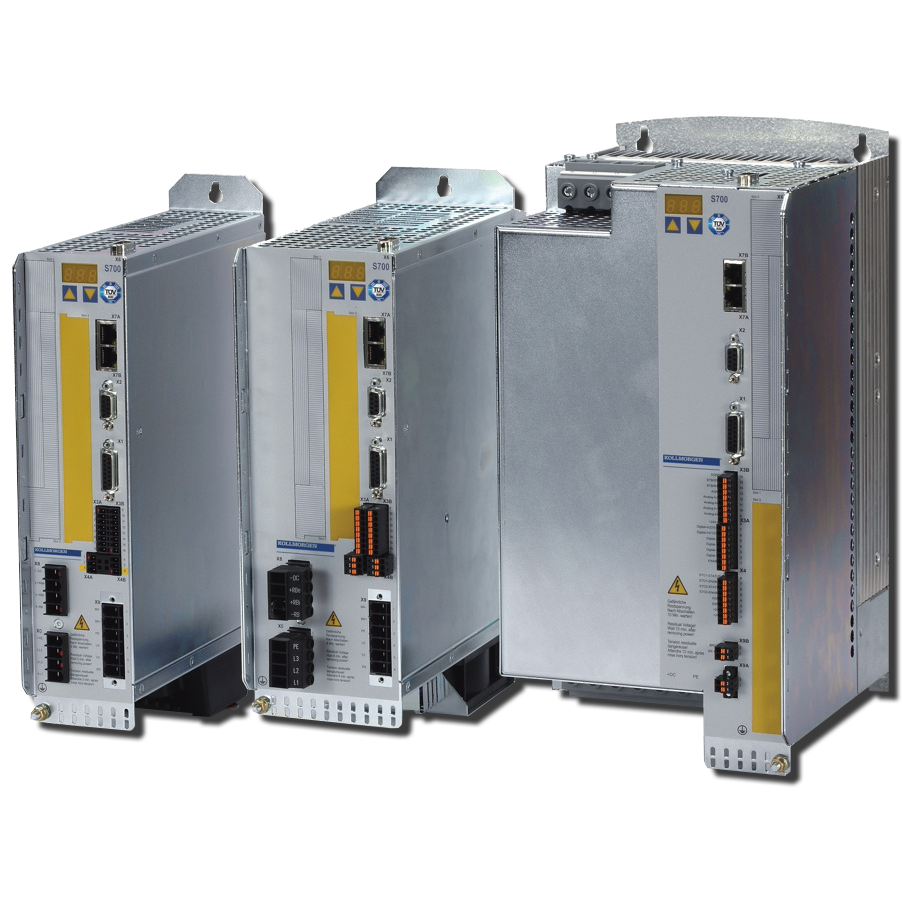

Kollmorgen S700 Azionamento con sicurezza integrata

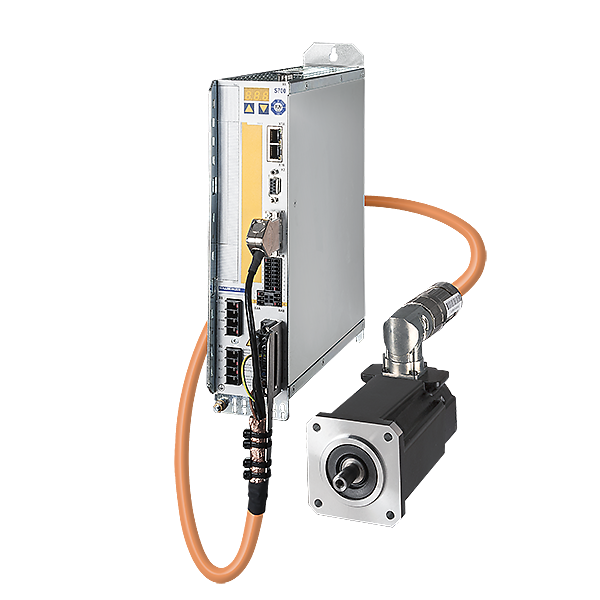

Kollmorgen S700 Servoazionamento Singolo Cavo

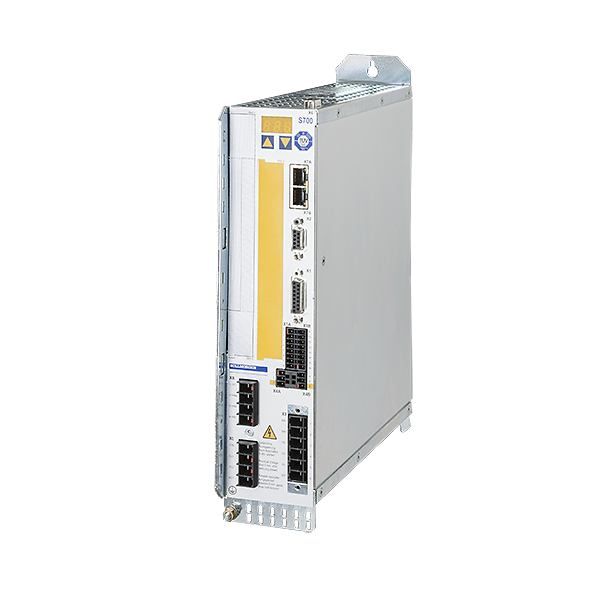

Kollmorgen S700 Servoazionamento

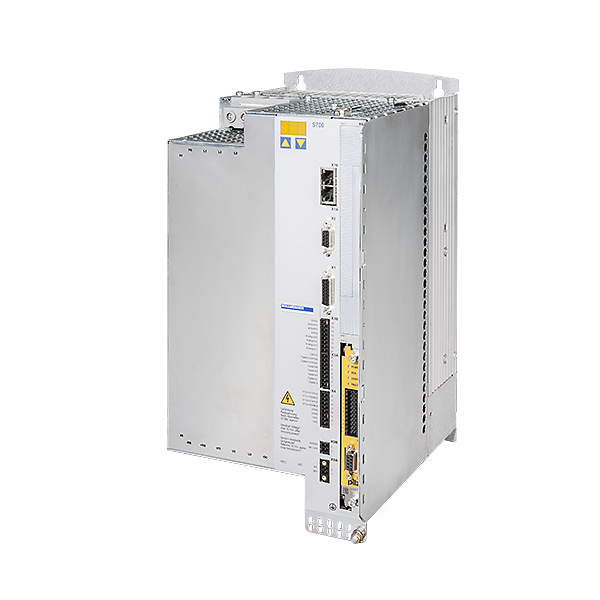

Kollmorgen S748 Servoazionamento

Caratteristiche

Caratteristiche

  • Controlli di sicurezza CE, UL, TÜV, EAC
  • Funzionamento diretto da linee da 110 a 480 V CA, mono o trifase, 50-60 Hz messe a terra
  • Modelli con corrente continua di uscita massima da 1,5 a 72 Amp RMS/fase
  • Funzione STO (Safe Torque Off) integrata
  • Schede di espansione di sicurezza disponibili con funzioni di sicurezza SIL2 o SIL3 come SDI, SLS, SS1, SS2, SBC e altre
  • Comunicazione bus tramite interfaccia EtherCAT® e CANopen integrata
  • Slot per scheda di memoria MMC per backup e copia di parametri e firmware
  • Interfaccia resolver ottimizzata
  • Autoregolazione
  • Eliminazione del cogging
  • La valutazione della retroazione più veloce del mercato



Vantaggi

  • Loop di corrente, velocità e posizione estremamente veloci per frequenze di manovra più rapide
  • Le funzioni di sicurezza SIL2/SIL3 aumentano l'efficienza della macchina
  • Il linguaggio di macroprogrammazione IEC 61131 interno rende la movimentazione flessibile
  • Le funzioni di interfaccia multipla e di retroazione multipla offrono compatibilità con tutti i controller e i sistemi di retroazione standard, riducendo l'esigenza di tenere a magazzino diversi tipi di azionamento
  • I filtri EMC integrati, l'alimentazione integrata e la resistenza di frenatura consentono di avere quadri elettrici ad armadio con dimensioni più contenute
  • La scheda di memoria per parametri e aggiornamenti firmware, le funzioni di autoregolazione e i connettori per tutti i collegamenti agevolano una configurazione rapida

Richiedi un preventivo

Specifiche

Dati tecnici

Dati nominali DIM S701 S703 S706 S712 S7120P S724 S7240P S748 S772
Tensione di linea nominale V~ 3 x 208 V-10% … 3 x 480 V+10%, 50/60 Hz
Potenza di linea nominale per funzionamento S1 kVA 1,1 2,2 4,5 9 9 18 18 35 50
Alimentazione ausiliaria V=     24
Tensione DC-link nominale V=     290-675
Corrente in uscita nominale (valore RMS)
- A 3 x 208 V A RMS 2,5 5 6 12 12 24 24 48 72
- A 3 x 230 V A RMS 2 4 6 12 12 24 24 48 72
- A 3 x 400 V A RMS 1,5 3 6 12 12 24 24 48 72
- A 3 x 480 V A RMS 1,5 3 6 12 12 24 24 48 70
Corrente di picco in uscita (valore RMS) A RMS 4,5 9 18 24 30 48 72 96 140

Dimensioni

Dati nominali DIM S701 S703 S706 S712 S7120P S724 S7240P S748 S772
(A) Altezza con ventola mm 345 348 385
(L) Larghezza mm 70 100 190
(P) Profondità incluso connettore mm 243
