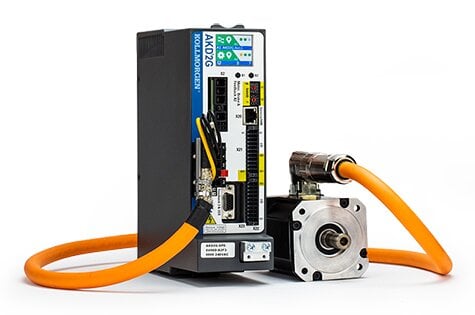

Servovariateur AKD2G
L'AKD2G permet le contrôle de 2 axes, des E/S extensibles (sans augmentation de taille), une mémoire amovible, une fonction STO à double canal et le premier écran graphique intégré du marché. L'AKD2G est optimisé pour les moteurs AKM2G et AKM à connecteur unique (avec ou sans frein), avec un moindre besoin de câblage grâce à la technologie de câble hybride unique. L'AKD2G offre aussi un second capteur afin de prendre en charge des capteurs plus anciens.

Économisez de l'espace dans les panneaux
Notre contrôleur de mouvement à double axe double la densité de puissance par rapport aux contrôleurs 1 axe et prennent 20 % de moins d'espace que la compétition.
Se reporter aux spécificationsCaractéristiques
Flexible
- La conception modulaire permet à l'utilisateur de ne spécifier que les fonctionnalités nécessaires
- Connexion optionnelle de capteur
- EnDAT 2.2
- BiSS
- résolveur
- codeur A-QUAD-B
- Émulation d'encodeur
- Double boucle
- Choix de bus pour l'optimisation système, dont EtherCAT® & FSoE, CANopen®, PROFINET® IRT et Ethernet/IP™
- Détection de surtension, courant et température pour plus de fiabilité
- Fonction STO à double canal pour chaque axe
- Excellente densité de puissance pour une plus grande flexibilité de montage
- S'adapte dans un panneau de commande de profondeur 10"
- Mémoire amovible
- E/S
- 16 E/S incluses
- En option, extension à 28 E/S
- +2 entrées de sécurité (2 entrées de sécurité en standard)
- +4 entrées de sécurité
Facile à utiliser
- Compatibilité Plug-and-play avec les commande et moteurs Kollmorgen
- Interface graphique WorkBench réputée pour sa facilité d'utilisation
- Connecteur d'alimentation/moteur hybride optimisé pour les moteurs à câble unique :
- Pas besoin d'adaptateur, de D-sub et de coupleur
- Les connecteurs à borne à ressort (Cage-clamp) sur les E/S permettent une installation rapide et facile
- Les E/S à isolation optique diminuent les parasites et éliminent le besoin de matériel supplémentaire
Rapide
- Servo on a Chip™ incluant un microprocesseur Dual-Core ARM™A9, 800 MHz + 1,5 million de portes FPGA supplémentaires
- S'adapte immédiatement aux changements de charge :
- Boucle de courant : 1,28 us
- Boucle de vitesse : 62,5 us
- Boucle de position : 250 us
- Un réglage assisté à l'aide de diagrammes de Bode pour vous aider à optimiser votre système manuellement
- Acquisition rapide des données avec canal de service Ethernet TCP/IP
Spécifications
120/240 Vca
Modèle | Courant continu (A rms) |
Courant de crête (A rms) |
Puissance en sortie d'arbre (kW) |
Ballast interne W (Ω) |
Hauteur mm (pouces) |
Largeur mm (pouces) |
Profondeur mm (pouces) |
Prof. avec rayon de courbure du câble mm (pouce) |
|
---|---|---|---|---|---|---|---|---|---|
AKD2G-6V03S | 3 | 9 | 1 | 100 (15) | 233 (9,15) | 75 (2,95) | 180 (7,09) | 225 (8,86) | |
AKD2G-6V06S | 6 | 18 | 2 | ||||||
AKD2G-6V12S | 12 | 30 | 4 | ||||||
AKD2G-6V03D | 3 & 3 | 9 & 9 | 1 & 1 | ||||||
AKD2G-6V06D | 6 & 6 | 18 & 18 | 2 & 2 |
240/480 Vca
Modèle | Courant continu (A rms) |
Courant de crête (A rms) |
Puissance en sortie d'arbre (kW) |
Ballast interne W (Ω) |
Hauteur mm (pouce) |
Largeur mm (pouce) |
Profondeur mm (pouce) |
Prof. avec rayon de courbure du câble mm (pouce) |
|
---|---|---|---|---|---|---|---|---|---|
AKD2G-7V03S | 3 | 9 | 2 | 100 (33) | 270 (10,6) | 75 (2,95) | 180 (7,09) | 225 (8,86) | |
AKD2G-7V06S | 6 | 18 | 4 | ||||||
AKD2G-7V12S | 12 | 30 | 8 | ||||||
AKD2G-7V03D | 3 & 3 | 9 & 9 | 2 & 2 | ||||||
AKD2G-7V06D | 6 & 6 | 18 & 18 | 4 & 4 |
