							Phase Shifting Components
* Type Number	Torque (min)		# Load Inertia		amps	Wiring Diagram	Resistor(s)			Capacitator (240 VAC)
* Type Number	oz-in	N-cm	lb-in²	kg-cm²	amps	Wiring Diagram	Kit Number	ohms	watt	Kit Number	µf
^KS061T1Y	70	49	0.7	2.0	0.25	R/R/C	201052-034	600	12	201053-068	l.5
KS061T1Y	80	56	0.5	1.5	0.25	R/C	201052-033	1,000	12	201053-038	2
KS062T1Y	140	99	2.0	5.9	0.35	R/C	201052-035	600	25	201053-044	3
KS063T1Y	185	131	4.0	12	0.40	R/C	201052-049	400	50	201053-076	5
KS091T1Y	240	169	4	12	0.50	R/C	201052-037	300	50	201053-076	5
KS092T1Y	450	318	8	23	0.60	R/C	201052-041	250	50	201053-069	6
KS093T1Y	700	494	13	39	1.00	R/C	201052-027	150	100	201053-074	11
KS111T1W	700	494	7	20	1.20	R/C	201052-045	100	100	201053-032	12.5
KS112T1W	1,100	777	13	38	1.70	R/C	201052-101	75	100	201053-081	20
KS113T1W	1,500	1,059	15	44	2.10	R/C	201052-104	50	200	201053-081	20

Title	Language(s)	Date	Size
Kollmorgen EU Declaration of Conformity Goldline KS	English	24 May 2017	117.34 KB	Copy URL
Kollmorgen EU Declaration of Conformity Goldline SS	English	19 Apr 2016	198.74 KB	Copy URL

Title	Language(s)	Date	Size
KAS06, KS09, KS11 Series Synchronous Motors 2003	English	16 Dec 2011	4.28 MB	Copy URL
Kollmorgen Automation and Motion Control	English	14 Jun 2021	15.53 MB	Copy URL
Stepper and Synchronous Motors Catalog EN Rev C	English	19 Feb 2014	7.96 MB	Copy URL

Title	Language(s)	Date	Size
Superior Stepper Connection Diagrams EN.pdf	English	29 Sep 2011	142.25 KB	Copy URL
Superior Synchronous Connection Diagrams en US.pdf	English	29 Sep 2011	2.05 MB	Copy URL

Article
Trade Compliance	Kollmorgen is committed to sourcing components and materials from companies that share our values regarding respect for human rights, integrity and environmental responsibility. Kollmorgen is also...
Normen und Richtlinien	[toc] Allgemeines Struktur des Normenwesens am Beispiel der EN ISO 12100 Europäische Richtlinien New Legislative Framework Blue Guide: Leitfaden für die Umsetzung der...
SSM Certification	Safety CCC CE UL UR cUL cUR EAC RoHS SSM EN / DE ...
Standards and Directives	[toc] General Structures of standards with EN ISO 12100 as an example ISO Standards Safety of Machinery — General Principles for Design ISO 12100:2010 UL Standards...

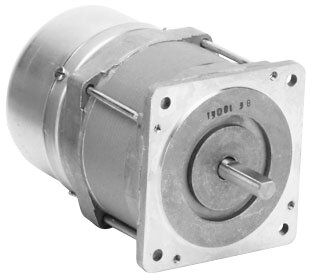

KS06, KS09 and KS11 Series AC Synchronous Motors

Features

Specifications

120 Volt, 60 Hz, Single Phase, 72 rpm
