VLM

With a design targeted for the most common servo motor features and offering torque ranges from 0.5N-m to almost 16 N-m, VLM delivers all the torque and performance of a servo while helping you control application costs.



Global
Product available worldwide

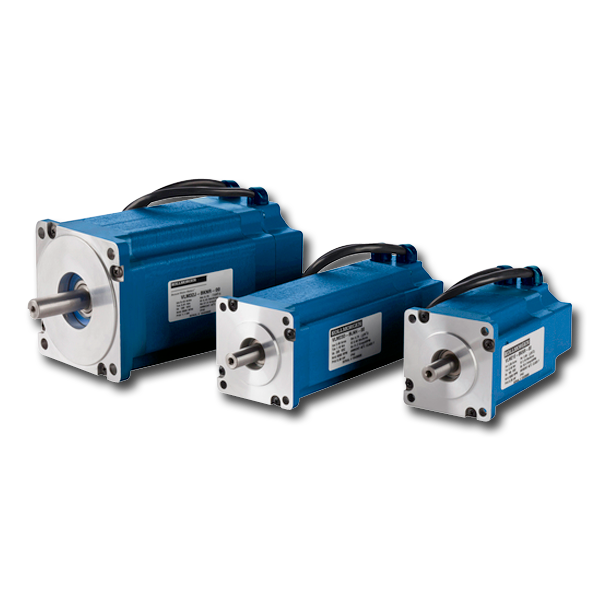

VLM large image

Features

Features

  • NEMA 23 and 34 frame sizes
  • Metric 60 mm and 90 mm frame sizes
  • 120/240 VAC, 160/320 VDC
  • Rated speeds up to 6,000 rpm
  • Up to 15.9 N-m peak, 4.5 N-m continuous
  • CE, UL, cUL
  • RoHS compliant
  • IP40 protection
  • 1 m and 3 m lead lengths available
  • Standard cabling options for direct connection to AKD drives (resolver or encoder feedback)
  • Standard cabling options for direct connection to S200 (Hall feedback)
  • SFD Resolver Encoder

Options

  • Feedback devices: resolver, encoder, and Hall sensors
  • Shaft ends: keyway, flat, smooth
  • Molex, Firewire (Direct to S200-VTS), D-SUB (direct to AKD) and flying leads

Benefits

  • Best price for applications that do not require customization nor extra motor features
  • Exceptional quality and value
  • Standard motor sizes, windings and mounts to meet most application needs
  • Easy to use, with standard connector options and matching cables

Specifications

Frame Size VLM2 VLM3
Stack Length 1,2,3 1,2,3
Windings C,E,D,G E,H,J
Max BUS (VDC)
Max Stall Tc
320 320
Nm (lb-in) 1.18 (10.4) 4.53 (40.1)
Max Tp
Nm (lb-in)
4.2 (37.2) 15.9 (140.7)
Max Rated Speed (RPM) 6000 6000
Max Rated Power
@ Max BUS
kW (Hp)
.38 (.51) 1.24 (1.66)
