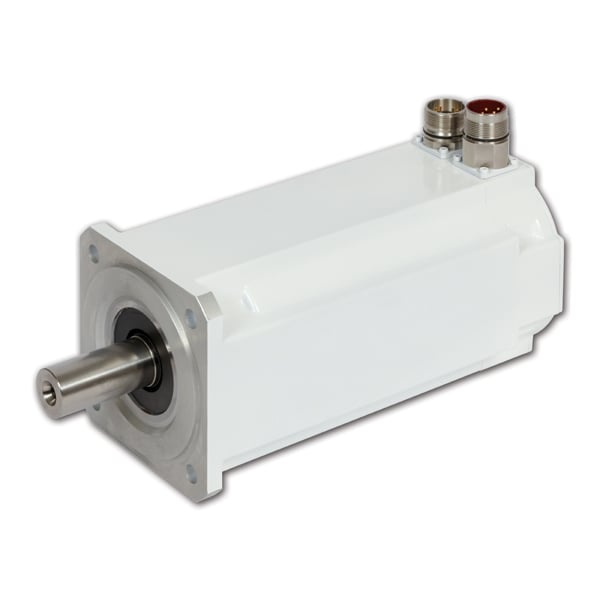

AKM™ Washdown and Food Grade Servo Motors

Features

Features

Benefits

Specifications

Modification Is Our Standard

We Can Also Fully Customize

Design Tools

Product Selectors

Motioneering

Performance Curve Generator Tools

Get Started

Media & Downloads

Pages

Article
Trade Compliance	Kollmorgen is committed to sourcing components and materials from companies that share our values regarding respect for human rights, integrity and environmental responsibility. Kollmorgen is also...
Resolving Servo Feedback Choices	This PowerPoint presentation explains the differences between different types of servo motor feedback devices, including: The differences between absolute and incremental devices. The...
Ingress Protection of Servo Motors	[toc] Sealing is an important design tool used to prolong the life of motors against harsh environments containing dust or liquid contaminants. There are arguably an unlimited number of...
DESINA Farbkodierung	DESINA steht für DE zentralisierte und S tandardisierte IN st A llationstechnik für Werkzeugmaschinen und Produktionssysteme.DESINA beschreibt die...
CCC Marking	The CCC-Certificate is the Chinese compulsory certificate for different groups of products since May 2002, in particular, consumer goods, electronic products, and automotive products. Due to the...

Title	Language(s)	Date	Size
AKM EU RoHS Declaration (RoHS10W)	English	09 Nov 2021	279.41 KB	Copy URL
AKM REACH SVHC Certificate of Compliance	English	01 Feb 2022	279.3 KB	Copy URL
AKM Servomotor EU Declaration of Conformity EN	English	30 Jul 2019	75.9 KB	Copy URL
AKM Servomotor EU Declaration of Conformity US EN	English	09 Apr 2020	323.89 KB	Copy URL
CEL China Efficiency Labelling for Servo and Stepper Motors	English	17 Dec 2021	139.72 KB	Copy URL
EU-Konformitätserklärung AKM	German	19 Apr 2016	126.62 KB	Copy URL
Kollmorgen CE Technical Notice - Servo and Stepper Motors Efficiency	English	26 Aug 2020	389.92 KB	Copy URL
