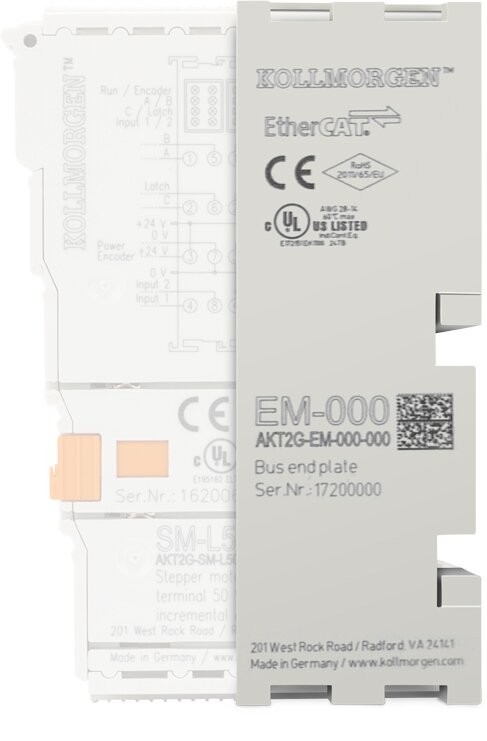

Standard-Bus End Terminal

The Standard-Bus End Terminal is required to enable data exchange between the Bus Coupler and the Bus Terminals. Each Bus Terminal block must be terminated at the right-hand end using this terminal. The Standard-Bus End Terminal does not provide any additional function or connection capability.

Global
Product available worldwide
Bus End Terminal

Specifications

Electrical and Mechanical Specification AKT-EM-000-000
Current consump. from Standard-bus -
Electrical isolation 500 Veff (Standard-bus/signal voltage)
Bit width in the process image -
Configuration no address or configuration settings
Weight ca. 50 g
Permissible ambient temperature 0 C ... +55 °C (during operation)
-25 °C... +75 °C (during storage)
EMC resistance burst/ESD conforms to EN 61000-6-2 / EN 61000-6-4
Vibration / shock resistance conforms to EN 60068-2-6 / EN 60068-2-27/ 29
Protect. class / installation pos. IP 20 / variable
Approval CE
