PowerTRUE™ Technology

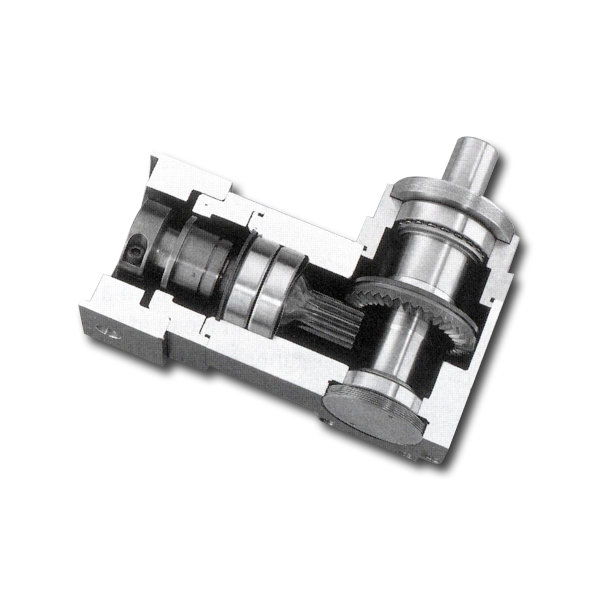

Right-angle gear meshes are typically limited to ratios from 1:1 to 3:1. Our PowerTRUE™ 90 gear technology uses an advanced tooth design that allows multiple teeth in the face gear to mesh simultaneously with a standard involute pinion, increasing the ratio range to 5:1 while boosting efficiency to 98%. PowerTRUE technology is available on NemaTRUE™, DuraTRUE™, UltraTRUE™ and ValueTRUE™ 90° gearheads.
*limited availability in Europe
Companion Products
ValueTRUE™

Our ValueTRUE™ Series delivers high precision at a competitive price. With only 4 arc-minutes of...

XTRUE™

The XTRUE™ Series offers a cost-effective solution with robust features. With five frame sizes,...

Features

  • Single axis mesh adjustment provides lower backlash
  • Compact right-angle design incorporates a high-tech face gear
  • Continuous tooth engagement and high contact ratio enable whisper-quiet operation
  • Mesh ratios from 1:1 to 5:1 exceed typical right-angle ratios
  • 98% efficiency
  • Designed and machined using advanced CNC software and equipment
  • Advanced stress analysis and computerized gear tooth profile mapping ensure a durable, efficient high-torque solution
  • Available on NemaTRUE™ 90°, DuraTRUE™ 90°, UltraTRUE™ 90°, ValueTRUE™ 90° gearheads
