P7000 Series

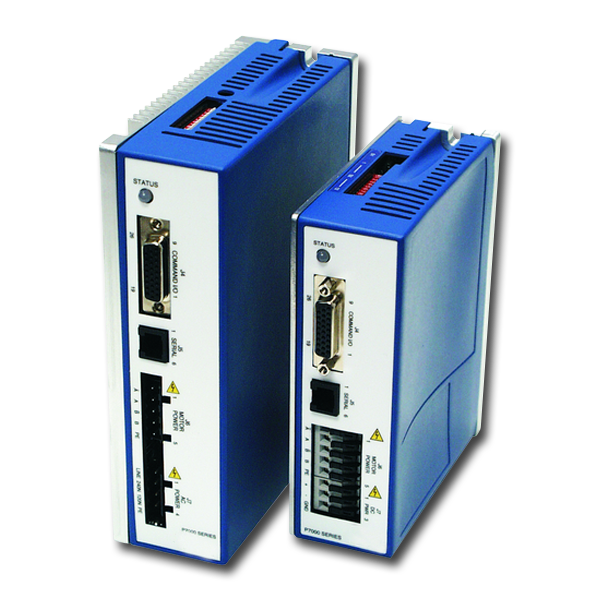

The P7000 drives offer unsurpassed system smoothness, functionality, performance and innovation. Available for AC(P70360) or DC(P70530) operation, these microstepping drives are designed to power 2-phase NEMA stepper motors. They offer unique features that are ideal for single or multi-axis applications requiring high-speed performance or low-speed smoothness.
*limited availability in Europe
Companion Products
POWERMAX M and P series

The POWERMAX II®M and P Series provides the highest torque in a stepper motor. These NEMA 23 (60...

POWERPAC K and N Series

POWERPAC® hybrid stepper motors deliver more power in a smaller package. These rugged, high-torque...

CT Series

CT series motors incorporate innovative cooling technology, high-torque magnetic designs, rugged bearings...

P70360 AC Stepper Drives:

  • P70360-SD:
    • Conventional step and direction interface
    • Dedicated inputs for jog+/-, enable and step/direction control
    • User-provided pulse train to rotate the motor
  • P70530-PN adds to the base drive:
    • Indexing capability, allowing up to 63 independent, programmable moves
    • Modbus RTU compatibly
  • P70360-R4 adds to the base drive:
    • Indexing capability, allowing up to 63 independent, programmable moves
    • Modus RTU compatibly
    • Adds an RS-485 interface
  • Integral power supply
  • Input voltage: 120 to 240 VAC (1 phase, 50/60 Hz) for a broad range of power sources
  • Continuous current: 2.5 Amps; microstep peak current: 3.5 Amps
  • Max shaft power: 525 W
  • Speed range: 0 to 50 rev/sec
  • Motor inductance: 50 to 200 mH (320 VDC BUS), 7 to 30 mH (160 VDC BUS)
  • 9 programmable inputs
  • Easy-to-use graphical interface
  • Open loop stall detection

P70530 DC Stepper Drives:

  • P70530-SD:
    • Conventional step and direction interface
    • Dedicated inputs for jog+/-, enable and step/direction control
    • User-provided pulse train to rotate the motor
  • P70530-PN adds to the base drive:
    • Indexing capability, allowing up to 63 independent, programmable moves
    • Modus RTU compatibly
  • Input voltage: 20 to 75 VDC
  • Continuous current: 5 Amps; microstep peak current: 7.1 Amps
  • Max shaft power: 300 W
  • Speed range: 0 to 50 rev/sec
  • Motor inductance: 2 to 15 mH
  • 9 programmable inputs
  • Easy-to-use graphical interface
  • Open loop stall detection

Benefits

  • Ideal solution for single or multi-axis applications that require high-speed performance or low speed smoothness
  • 9 programmable inputs, available indexing model and easy-to-use graphical interface simplify configuration for complex machine requirements
  • Integral stall detection eliminates the need for expensive external sensors or feedback, reducing system cost by up to 30%
  • Multistepping™ feature inserts fine micro-steps to smooth coarse low speed motion without having to redesign machine control architecture
  • Mid-band anti-resonance control reduces negative effects of mechanical resonance, allowing you to get more out of a smaller motor and virtually eliminating nuisance stalls and machine downtime
  • Dynamic smoothing quasi-S-curve algorithm reduces jerk, especially upon acceleration, increasing mechanical life and reducing energy consumption
Specifications Units P70530 P70360
Input Voltage Range Volts 20 - 75 VDC 120 or 240 VAC
Continuous Current Amps RMS 5 2.5
Microstep Peak Current Amps Peak 7.1 3.5
Dedicated Inputs* - +/-Enable, +/- Step & Dir* 5 VDC TTL +/-Enable, +/- Step & Dir* 5 VDC TTL
Programmable Inputs* - 9 Configurable, Optically Isolated* 5-24 VDC Sinking or Sourcing 9 Configurable, Optically Isolated* 5-24 VDC Sinking or Sourcing
Fault Output, user-configurable output - Open collector 5-24 VDC Open collector 5-24 VDC
Idle Current Reduction Integer Settable 0-100% Settable 0-100%
Step Resolution - 200-50000 steps/rev 200-50000 steps/rev
Package Size W x D x H Inches (mm) 1.14 x 4.4 x 4.2 (29 x 111 x 107) 2.06 x 5.2 x 6.7 (52.3 x 132 x 170)
Ambient Temperature Degrees C 0-40 0-40
Max Chassis Temperature Degrees C 70 70
Motor Frames - NEMA 17, 23, 34, 42 NEMA 23, 34, 42
Max Shaft Power Watts 300 525
Speed Range Revs/Second 0-50 0-50
Recommended Motor Inductance Range mH 2-15 50-200 (320 VDC BUS) 7-30 (160 VDC BUS)

* Step and Direction inputs need current limiting resistor over 5 V, the Enable does not
