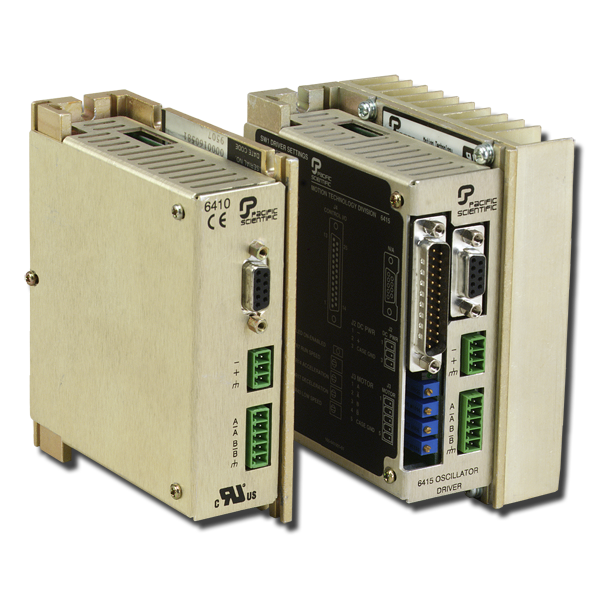

6400 Series

These modular, high-performance microstepping drives support a broad range of requirements. These drives offer excellent value for low voltage DC input-powered applications. The 6410 model has step and direction inputs. The 6415 model has the addition of an oscillator allowing a +/- 10 VDC input command for speed control.

Global
Limited availability outside North America
Stepper 64 Large

Features

6410 and 6415 Features

  • Single power supply input
  • Input voltage is from 24 to 75 VDC for a broad range of power sources
  • Output current adjustable from 0.625 to 5 Amps RMS with 3-position DIP switch
  • 4-phase bipolar chopper drive for superior current regulation and low ripple current
  • Microstepping resolution is selectable via DIP switches up to 51,200 steps per revolution
  • Idle current reduction reduces motor heating in many applications
  • Selectable step filter rejects noise on step input
  • Fault Protection:
    • Line-to-line and line-to-neutral shorts
    • Internal power supply under-voltage
    • Bus overvoltage
  • Compact size

6415 Additional Features

  • Low/high speed select input
  • On-board multi-turn potentiometers
  • External customer potentiometer
  • Customer supplied ±10 VDC analog input
  • Optional heat sink

Specifications

  6410 6415
Step Sizes Binary or Decimal, full to 1/250 or 1/256 Binary or Decimal, full to 1/250 or 1/256
Input Voltage 24-75 VDC 24-75 VDC
Output Current 0.625-7.1 amps, Peak 0.625-7.1 amps, Peak
Interface Inputs Step and Direction ±10 VDC, Step/Dir, Discrete Input
Interface Outputs n/a n/a
Connectors Screw Terminal, D Sub Screw Terminal, D Sub
Package Size W (w/heat sinks) xHxD 39.62 x 104.90 x 82.55 mm (1.56 x 4.13 x 3.25 in) 39.62 x 104.90 x 82.55 mm (1.56 x 4.13 x 3.25 in)
