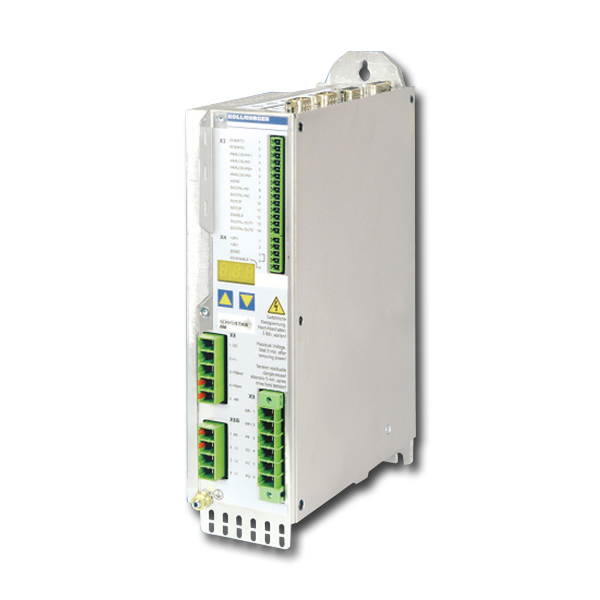

S300 Servo Drive

S300 Series digital brushless servo drives are compact, easy-to-use and extremely versatile. The small footprint saves space in the switchgear cabinet, and with its wide-ranging connectivity options the S300 may be the only drive family you need. These drives work with our best-in-class rotary servo motors and linear positioners to provide a single, high-performance solution for a wide variety of applications.

Global
Product available worldwide

Features

Features

  • CE, UL, cUL
  • Operation directly from grounded 115 to 480 VAC, 3-phase, 50-60 Hz lines
  • Output current: 1.5 to 10 Amps RMS/phase, continuous
  • With integral AC line filter, all shield connections terminate directly to the amplifier
  • DC-link circuits can be connected in parallel
  • Fully programmable via RS232 interface
  • EtherCAT® and CANopen bus communication onboard
  • Optional SERCOS II, DeviceNet, SynqNet, Profibus, or PROFINET RT
  • Easy setup using a Windows-based graphical interface
  • 230 V type suitable for 200 mm switchgear cabinets
  • Interface integrated for stepper controllers, master-slave operation and electronic gearing
  • Integrated position controller with memory for 300 intelligent positioning tasks, including:
    • Speed profile
    • Register control
    • Jolt limiting
    • Daisy-chained tasks
    • Absolute and relative tasks
    • Several types of reference traverses
  • Motion Control and Soft-PLC integrated
  • Encoder emulation: choose incremental (A quad B, dec./bin.) or absolute (SSI, Gray/bin.)
  • Compatible with a wide range of feedback options:
    • Single Cable Feedback SFD3 and Hiperface DSL
    • Resolver, up to 36 poles
    • ComCoder
    • Incremental or sine encoder with Hall sensor
    • Sine encoder with EnDat/HIPERFACE/BISS
    • Sine encoder without data
    • Incremental encoder A quad B

Benefits

  • Wide power range allows a single drive family to be deployed through-out you entire machine
  • Compact footprint allows use of smaller cabinets, or mounting close to the point of use
  • High performance system designed for increased machine throughput
  • Easy-to-use graphical user interface reduces engineering and support time
  • Reduced overall cost

Specifications

Technical Data

Rated Data Unit Model
303 306* 310* 341 343* 346*
Rated Supply Voltage v~ 3 x 110 v-10% ... 230 v+10% 3 x 208 v-10% ... 480 v+10%
Rated installed power for S1 operation kva 1.2 2.4 4 1.4 3.3 5
Rated DC link voltage v= 145-360 560–675
Rated output current (RMS value, ± 3 %) / Peak output current (max. 5 s, ± 3 %)
at 1 x 110 v mains voltage A RMS 3 / 5 3 / 5 3 / 5
at 1 x 230 V/240 V mains voltage A RMS 3 / 9 4 / 9 4 / 9
at 3 x 115 v mains voltage A RMS 3.5 / 9 8 / 15 10 / 20
at 3 x 230 v mains voltage A RMS 3 / 9 6 / 15 10 / 20 2 / 4.5 5 / 7.5 6 / 12
at 3 x 400 v mains voltage A RMS - - - 1.5 / 4.5 4 / 7.5 6 / 12
at 3 x 480 v mains voltage A RMS - - - 1.5 / 4.5 3 / 7.5 6 / 12
Continuous power regen circuit (rBint) W 20 50 50 20 50 50
Continuous power regen circuit (rBext) max. kW 0.3 0.3 0.3 0.3 1.0 1.0
Peak power regen circuit (rBext) max. kW 0.75 ... 3 0.75 ... 3 0.75 ... 3 2.1 ... 9 2.1 ... 9 2.1 ... 9

Dimensions

  303 / 306 / 310 341 / 343 / 346
Height 246 mm 246 mm
Width 70 mm 70 mm
Depth without connectors 171 mm 171 mm
Depth with connectors < 200 mm < 235 mm

Media & Downloads

Title File Language Date Share URL
Accessories for digital drive systems with S300/S400/S600/S700 English
Share URL /sites/default/files/public_downloads/Sxyz%20Accessories_Europe_en_2.pdf
ASCII Object Reference Collection English, German
Share URL /sites/default/files/public_downloads/ascii_s300-s700%20rev2.15a.zip
CANopen PDO Setup Objects English
Share URL /sites/default/files/public_downloads/PDO_Objects.pdf
CANopen Protocol Quick Reference Guide English
Share URL /sites/default/files/public_downloads/S300_S600_S700_CAN%20Protocol%20Quick%20Reference.pdf
DeviceNet and HMS Simulator Instruction English
Share URL /sites/default/files/public_downloads/DeviceNet%20HMS%20Simulator_2009-1-5.pdf
Part Number Scheme S300 English
Share URL /sites/default/files/public_downloads/s300_e_0.pdf
PDO setup for S300 CANopen Profile Position Mode English
Share URL /sites/default/files/public_downloads/Profile%20Position%20Mode%20for%20S300.pdf
PROFIBUS DP Fieldbus Interface for S300 / S400 / S600 / S700 English
Share URL /sites/default/files/public_downloads/s300s700_profibus_e_11-2022.pdf
S300 / S400 / S600 / S700 EtherCAT Feldbus Schnittstelle Handbuch German
Share URL /sites/default/files/public_downloads/srethercat_d_3.pdf
S300 / S400 / S600 / S700 EtherCAT Fieldbus Interface Manual English
Share URL /sites/default/files/public_downloads/srethercat_e_3.pdf
S300 / S400 / S600 / S700 Profibus Feldbus Schnittstelle Handbuch German
Share URL /sites/default/files/public_downloads/s300s700_profibus_d_11-2022.pdf
S300 / S600 / S700 2CAN Technical Description English, French, German, Italian
Share URL /sites/default/files/public_downloads/2can_defi.pdf
S300 / S600 / S700 DeviceNet Feldbus Schnittstelle Handbuch German
Share URL /sites/default/files/public_downloads/srdnet_d_1.pdf
S300 / S600 / S700 DeviceNet Fieldbus Interface Manual English
Share URL /sites/default/files/public_downloads/srdnet_e_1.pdf
S300 / S600 / S700 DeviceNet Technical Description English, French, German, Italian
Share URL /sites/default/files/public_downloads/devicenet_defi.pdf
S300 / S600 / S700 I/O Technical Description English, French, German, Italian
Share URL /sites/default/files/public_downloads/io_defi.pdf
S300 / S600 / S700 Profibus Technical Description English, French, German, Italian
Share URL /sites/default/files/public_downloads/profibus_defi.pdf
S300 / S600 / S700 SERCOS Technical Description English, French, German
Share URL /sites/default/files/public_downloads/sercos_defi.pdf
S300 / S600 / S700 SynqNet Technical Description English, French, German
Share URL /sites/default/files/public_downloads/synqnet_defi.pdf
S300 / S600 EtherCAT Technical Description English, French, German, Italian
Share URL /sites/default/files/public_downloads/ethercat_defi.pdf
S300 / S700 CAN-Bus Feldbus Schnittstelle Handbuch German
Share URL /sites/default/files/public_downloads/s300700can_d_12-2022.pdf
S300 / S700 CAN-Bus Fieldbus Interface Manual English
Share URL /sites/default/files/public_downloads/s300700can_e_12-2022.pdf
S300 / S700 DriveGUI Online Help English
Share URL /sites/default/files/public_downloads/drivegui_e%20rev3.14%20with%20ASCII%202.15a.zip
S300 / S700 FB-2to1 Technical Description English, French, German, Italian
Share URL /sites/default/files/public_downloads/fb-2to1_defi.pdf
S300 / S700 Profinet Fieldbus Interface Manual DE German
Share URL /sites/default/files/public_downloads/s300s700_profinet_d_11-2022.pdf
S300 / S700 Profinet Fieldbus Interface Manual EN English
Share URL /sites/default/files/public_downloads/s300s700_profinet_e_11-2022.pdf
S300 / S700 sercos II Feldbus Schnittstelle Handbuch German
Share URL /sites/default/files/public_downloads/s300700sercos_d_0.pdf
S300 / S700 sercos II Fieldbus Interface Manual English
Share URL /sites/default/files/public_downloads/s300700sercos_e_0.pdf
S300 ASCII Reference English, German
Share URL /sites/default/files/public_downloads/ascii_s300-s700.zip
S300 Betriebsanleitung DE German
Share URL /sites/default/files/public_downloads/sr300_d_3.pdf
S300 Installation Manual EN English
Share URL /sites/default/files/public_downloads/sr300_e_3.pdf
S300 Installation Manual RU Russian
Share URL /sites/default/files/public_downloads/sr300_r_3.pdf
S300 Interactive Tuning Guide English
Share URL /sites/default/files/public_downloads/Interactive%20Guide--Tuning%20the%20S300.ppt
S300 Manuale di installazione IT Italian
Share URL /sites/default/files/public_downloads/sr300_i_3.pdf
S300 Safety Notes DE EN FR IT RU English, French, German, Italian, Russian
Share URL /sites/default/files/public_downloads/S300_Safety-Notes_1.pdf
S300 Typenschlüssel English
Share URL /sites/default/files/public_downloads/s300_d_0.pdf
S300-S400-S600-S700 Profibus Kommunikationsprofil Anleitung de German
Share URL /sites/default/files/public_downloads/Profibus%20Kommunikationsprofil%20Anleitung%20S300-S400-S600-S700.pdf
S300-S700 DriveGUI Onlinehilfe German
Share URL /sites/default/files/public_downloads/drivegui_d%20rev3.1.4%20with%20ASCII%202.15a.zip
Typenschlüssel S300 English
Share URL /sites/default/files/public_downloads/s300_d.pdf
Zubehör für digitale Antriebe DE German
Share URL /sites/default/files/public_downloads/Digital%20Drive%20Systems%20Accessories%20Guide%20DE%20%28REV%2012-2014%29.pdf
Zubehör für digitale Antriebe mit S300, S400, S600, S700 DE German
Share URL /sites/default/files/public_downloads/Sxyz%20Accessories_Europe_de_1.pdf
科尔摩根S300 伺服驱动器安装手册 Chinese, Traditional
Share URL http://info.kollmorgen.com/acton/attachment/2609/f-09f8/1/-/-/-/-/科尔摩根S300_安装手册0402%20final.pdf?sid=76SvEg2IH
Title Language Date Share URL
Kollmorgen Catalogo Automazione e Motion Control IT Italian Share URLview
Kollmorgen Full-line Catalog English Share URLview
Kollmorgen otomasyon ve hareket kontrol çözümleri kataloğu TR Turkish Share URLview
Kollmorgen S300 Servoazionamenti Opuscolo IT Italian Share URLview
Kollmorgen S300 Servoregler Broschüre DE German Share URLview
Kollmorgen Servostar S300 Brochure UK English Share URLview
S300 S600 Catalog EN RevA English Share URLview
科尔摩根S300伺服驱动器产品手册 Chinese, Simplified Share URLview
科尔摩根运动控制及伺服系统解决方案 Chinese, Simplified Share URLview
