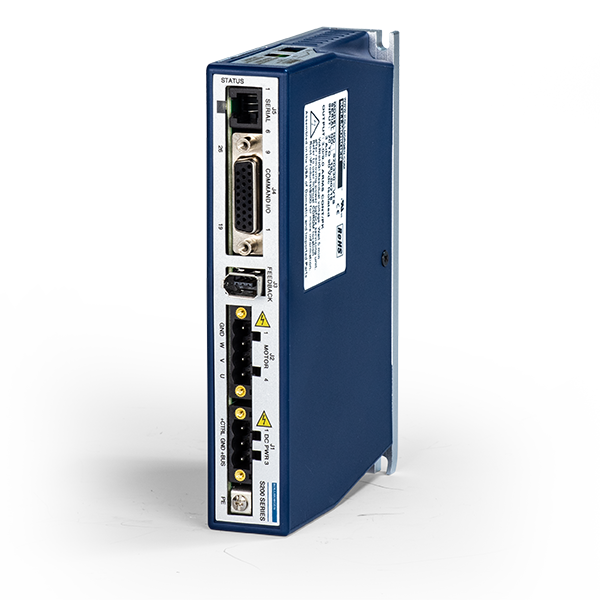

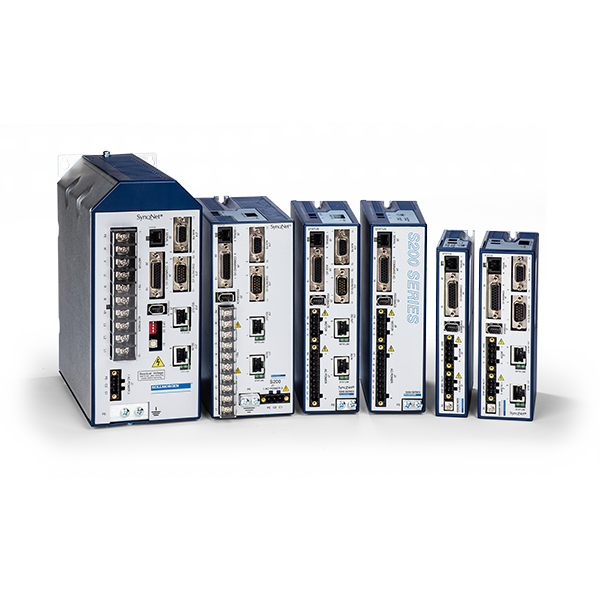

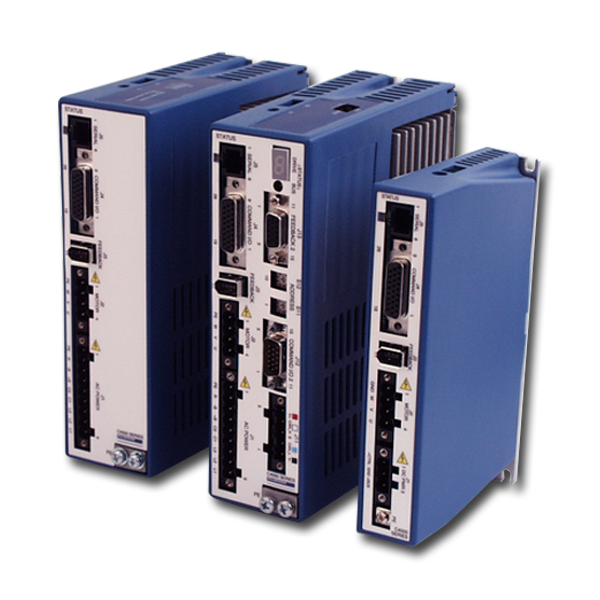

Kollmorgen S200 servo drives are the first all-digital industrial drives with a velocity loop bandwidth of 800 Hz including:

High-density connectors

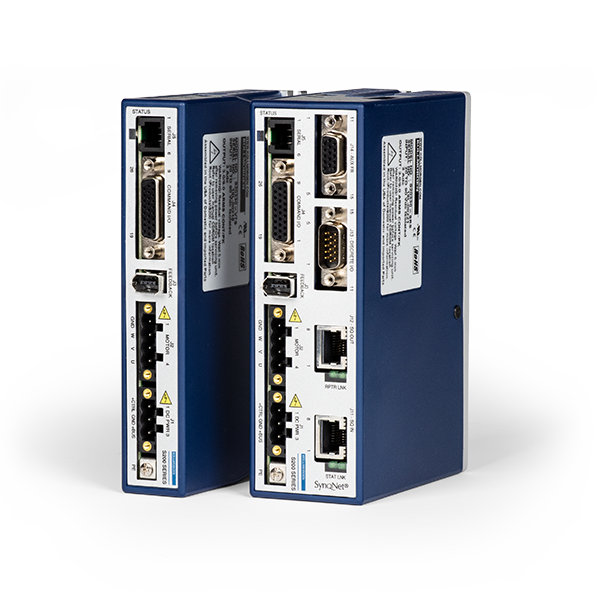

Ultra-compact DC (48V Nominal) variants
Meets UL 508C, CE, EN50178, EN61800-C and Semi F47 Standards
Options available to support either indexing or SynqNet™ motion control

The S600 drives are no longer available for new applications, but we continue to provide replacement drives and support for existing customers.

Stepper Drives
P8000 Stepper Drive
P5000 Stepper Drive
P6000 Stepper Drive
Serviced Stepper Drives

Stepper drives for both AC and DC power applications are ideal for high-performance indexing applications, offering microstepping capabilities up to 50,000 steps per revolution with no need for feedback systems.

New, more compact drives offer greater smoothness, precision and torque density for fixed-load, low-speed, point-to-point applications

The P5000 is a compact micro-stepping stepper drive optimized for high system performance with Kollmorgen’s industry leading POWERMAX II stepper motors. It is an impressive yet simple addition to the Kollmorgen stepper drive family.

The P6000 is an AC input micro-stepping drive optimized for pairing with POWERPAC and POWERMAX stepper motors. With the simplicity of dip switches and the optimized performance from the complete system, this stepper solution brings increased machine performance without the associated complexity.

These modular, high-performance microstepping drives are available for existing applications only. For new applications, we recommend the P5000 or P8000 stepper drives.

Accessories
Accessories for Digital Motion Systems in Europe
Servo Cables
Regen Resistors

Kollmorgen is your single-source supplier for all the accessories you need to install your complete motor/drive solution.

Accessories for digital Motion Systems in Europe

Servo Motors
2G Motion System
AKM2G Servo Motor
AKM Family
Stainless Steel AKMH Series
AKM2G & AKM Low Voltage DC Servo Motors
Kollmorgen Goldline® Series Servo Motors
EKM Series Servo Motors
Serviced Motors

Kollmorgen’s brushless servo motors offer the highest torque/inertia ratio over a broad range of speeds—including high speed capabilities up to 8,000 rpm for standard designs and up to 70,000 rpm for special designs.

AKM2G represents the latest evolution of the industry-leading AKM motor family. With significant torque increases in the same motor size OEMs can achieve substantial performance improvement without changing the motor mounting or using more machine space.

Our best-in-class, high-performance servomotors offer a wide range of mounting, connectivity, feedback and other options. More than 500,000 standard models are available along with co-engineered modifications to suit almost any application requirement. Gearmotor, washdown and food-grade versions are available.

The AKMH Series is built to withstand the most rigorous of washdown regimens. The combination of the AKMH’s IP69K construction and corrosion resistant materials make for a servo motor that will last the life of your machine.

AKM and AKM2G Low Voltage servo motors are designed for high-performance, demanding dynamic applications which require 24-96 VDC bus input.

The Kollmorgen Goldline® Series provides optimum performance for applications that involve rapid acceleration/deceleration, compliant loads or large inertia mismatches. These motors are available for 230 and 400/480 VAC line voltage. We also offer explosionproof, washdown and submersible models.

These enhanced, high performance motors are MilSpec 810E rated and IP67 sealed. They are supplied standard with a stainless steel shaft and chemical agent-resistant paint for reliable duty in harsh environmental conditions.

While these servomotors are not available for new applications, Kollmorgen continues to provide replacement motors and support for existing customers.

Kollmorgen pioneered the development of direct drive technology. Today, our Direct Drive Rotary (DDR) and Direct Drive Linear (DDL) motors bring you industry-leading performance, zero maintenance, clean mechanical assembly, improved accuracy, higher throughput, better reliability, and smooth, quiet operation.

These next-generation frameless motors deliver high torque density for your most compact, lightest electromagnetic package, standard sizing for harmonic gearing, and scalable design to keep you on top of your global production needs.

Our exclusive Cartridge DDR® servomotors combine the performance advantages of a frameless motor with the ease of installation of a full-frame motor. The advanced electromagnetic design provides up to 50 percent more torque density than comparably sized conventional servo motors.

Housed DDR servomotors offer high torque density, precise performance and zero maintenance in an easily installed servo solution.

The KBM series offers high performance, long life, simple installation in a motor kit that can be embedded directly in your mechanical design. A huge selection of standard motors and cost-effective modifications ensure a perfect fit.

Our TBM series provides direct drive frameless motors designed to be directly embedded in the mechanical structure of your systems, minimizing weight, size and inertia without sacrificing performance.

The frameless configuration of these relatively high-torque, low-speed, pancake-style motors eliminates shaft, bearings, endbells and couplings for reduced volume, weight and complexity when integrated directly with the load.

A Direct Drive Linear (DDL) motor is basically a rotary motor that is laid out flat and directly coupled to the driven load, eliminating the need for ball/lead screws, rack and pinions, belts/pulleys and gearboxes.

Our high-performance, brushless, maintenance-free stepper motors provide precise, extremely cost-effective motion control.

The PMX family of hybrid stepper motors offers unmatched versatility through a wide range of standard and customizable options, unmatched value through exceptional performance at an affordable cost, and unmatched reliability through Kollmorgen’s superior motion expertise and build quality.

The POWERMAX II® M and P Series are NEMA 23 stepper motors feature an octagonal housing and are available in half-, single-, and two-stack configurations. These units offer a wide variety of standard options and affordable co-engineered modifications, without sacrificing scalability and lead time.

The POWERPAC series includes rugged NEMA 34 and 42 hybrid stepper motors designed to achieve extremely high torque. These units are available with standard options and co-engineered modifications to provide an exact application fit.

Featuring a conventional round frame, these high-efficiency, low-loss stepper motors provide lower rotor inertia and higher acceleration compared to other motors in their class. They are available in NEMA 23, 34, and 42 frame sizes.

Our T2, T, KM and MH172 Series stepper motors provide the highest torque in a wide range of frame sizes. These motors offer a high-performance, cost-effective alternative to pneumatic, hydraulic and servomotor systems.

CT series Nema 17 and 23 motors incorporate innovative cooling technology, high-torque magnetic designs, rugged bearings and high-voltage insulation systems. These motors support large mechanical loads and can be used with any stepper drive.

MX Series are Explosion-proof rated stepper motors, designed to meet Class I, Division 1, Group D hazardous location requirements. They are available in NEMA 34 and 42 frame sizes providing minimum holding torques from 1.27 to 9.82 N-m (180 to 1,390 oz-in).

AC Synchronous Motors
ST/SN
KS & SS Series
Hazardous Duty Synchronous Motors

Kollmorgen offers two brands of AC Synchonous motors in their Pacific Scientic ST/SN Series and Superior Electric products. High performance in four frame sizes, NEMA 23, 34, 42, 66 are available. Resistor - capacitor kits are also available.

ST and SN Series synchronous motors provide high performance in three frame sizes, NEMA 23, 34 and 42 (60, 90 and 110 mm). Resistor-capacitor kits are also available.

These high-torque synchronous motors are available in NEMA 23, 34 and 42 frame sizes (60, 90 and 110 mm), providing up to 1,500 oz-in (1,059 N-cm) of torque.

Providing torque up to 1,500 oz-in (1,059 N-cm), these synchronous motors are available in UL Listed versions suitable for use in Class I, Division 1, Group D hazardous locations. Frame sizes are NEMA 42 and 66 (110 mm and 170 mm).

Brush DC Motors
DC Torque Motors
Permanent Magnet DC (PMDC)
Serviced Motors

Kollmorgen’s family of brush DC motors offers an extremely wide variety of sizes and package types.

Direct drive brush DC torque motors are ideal for minimizing size, weight, power and response time while maximizing rate and position accuracies. They provide a servo actuator that can be attached directly to the driven load.

Our permanent magnet brush DC motors offer rugged, quality construction and dependable operation. Many options are available, including explosionproof models, washdown models, co-engineered modifications and more. With a well-deserved reputation for value, these motors are backed by a two-year warranty.

Our low-inertia brush DC servomotors are no longer available for new applications. We continue to service them for existing customers.

Washdown Food Grade
Stainless Steel AKMH Series
STF Washdown Motor - Food Grade
AKM Washdown and Food Grade

Quality standards and legal regulations impose strict hygienic requirements on equipment used in the food and beverage, meat and dairy, pharmaceutical, and cosmetics industries.

These permanent magnet DC (PMDC) motors are SCR-rated and adhere to NEMA standards. They are available 90 or 180 VDC, from 1/4 to 2 HP.

AKM Washdown and Washdown Food Series servomotors incorporate a protective 2-K coating, IP67-rated seals, stainless steel hardware, special greases and other materials designed for applications such as food, beverage and pharmaceutical processing where hygiene and frequent cleaning are critical requirements.

Explosion Proof
EP Series Explosion Proof
Hazardous Duty Synchronous Motors
Goldline EB Series
MX Series Hazardous Duty

Explosion-proof versions of motors are designed to minimize the risk of explosion, and to contain any internal explosion that may occur without allowing it to propagate to the outside environment.

These permanent magnet DC (PMDC) motors are SCR-rated and adhere to NEMA standards. They are available in a variety of DC voltages, from 1/4 to 3/4 HP.

Based on the 230 VAC B and M Series, the EB Series provides a high-performance explosionproof servomotor that is UL Listed for use in Class I, Division 1, Group C and D hazardous locations.

Accessories
Accessories for Digital Motion Systems in Europe
Servo Cables
Regen Resistors

Kollmorgen is your single-source supplier for all the accessories you need to install your complete motor/drive solution.

Accessories for digital Motion Systems in Europe

Electric cylinders from Kollmorgen offer strong thrust, high speed and exceptional positioning accuracy. Designed to provide a clean, efficient replacement for hydraulic actuators and pneumatic cylinders, these high-precision, closed-loop systems have rapidly become the preferred alternative for many linear applications.

The N2 Series offers an economical, light-duty design with a small package size. Durable and easy to use, these electric cylinders provide simple extend-and-retract motion, with the ability to position either to predetermined stop locations or to an analog voltage input.

The EC1 Series offers a limited selection of application solutions designed to reduce cost and minimize cylinder frame size by 30 to 40 percent. The small package design is perfect for converting from pneumatic cylinders in many applications.

EC2 Series electric cylinders are an economical solution for light to moderate thrust loads. With a choice of ball or lead screw designs, these cylinders yield quiet operation, low backlash and high accuracy with a selection of motor-to-screw reduction types.

The EC3 Series provides a robust linear motion package for moderate to heavy thrust loads. They are available with a ball or lead screw and a variety of motor-to-screw reduction ratios, providing exceptionally quiet operation, low backlash and high accuracy.

The EC4 Series is a heavy-duty motion package designed to move heavy thrust loads with superior precision and minimal backlash. This series features precision-rolled ball screws with a selection of motor-to-screw reduction ratios.

For the heaviest thrust loads, our EC5 Series offers an extremely robust design with precision-rolled ball screws available with a selection of motor-to-screw reduction ratios. Like all our electric cylinders, they provide exceptional accuracy, low backlash and quiet operation.

Rodless Actuators
R2A Series
R3 Series
R4 Series

Instead of the moving rod of an electric cylinder, these rodless actuators feature a moving carriage supported by linear bearings within an extruded aluminum chassis. This design enables the rodless actuator to guide and support the load being positioned.

The R2A Series offers a carriage bearing design that produces lower bearing friction, smoother operation and zero running clearance. A flexible seal prevents environmental contamination and ensures long life, making the R2A Series an effective solution for industrial-grade requirements.

R3 Series rodless actuators provide a robust design with an internal linear motion guide rail and built-in flexible seal to ensure reliable operation in industrial environments. Equipped for high loads or high acceleration with maximum duty cycle, the R3 Series is available with either belt drive for the most rapid moves or screw drive for the highest thrust capacity and repeatability.

The R4 Series is our most powerful rodless actuator, designed to quickly accelerate, accurately position and reliably support the heaviest loads. An internal linear motion guide rail with a built-in flexible seal withstands maximum duty cycle in harsh industrial environments.

Precision Tables
DS4/6 Series

Precision tables are best suited for applications where accuracy and repeatability are more important than axial thrust. They can also be used in applications that require substantial moment load support, and they’re ideal building blocks for multi-axis positioning systems.

DS Series precision tables provide outstanding performance, with the configuration flexibility to suit almost any single-or multi-axis application. Our proven magnetic stainless steel seal strip effectively seals the internal components from contaminants for durable performance in demanding industrial settings.

All our gearheads incorporate True Planetary gearing for high torque capacity, smooth operation and minimal maintenance. So you can count on optimum performance, whether you need a general-purpose gearhead, an ultra-precise model, a washdown or food-grade version, or a complete gearmotor.

The DuraTRUE™ Series offers high-precision gearheads with a variety of shaft configurations, allowing you to design your system in the smallest of envelopes by eliminating the need for couplings. You can even run two axes with one motor using the DuraTRUE “T” design.

For continuous duty cycle applications, our EverTRUE™ Series gearheads are lubricated for life and rated for at least 30,000 hours of 24/7 operation. These high-precision gearheads are compatible with our RediMount mounting system for easy installation on almost any motor.

NemaTRUE™ gearheads are available in four standard NEMA sizes, three metric sizes, and both in-line and right-angle versions—all featuring our RediMount mounting system. These precision gearheads provide a versatile and economical solution for many applications..

Right-angle bevel gear meshes are typically limited to ratios from 1:1 to 3:1. Our PowerTRUE™ 90 gear technology uses an advanced tooth design to increase the ratio range to 5:1. It’s available on NemaTRUE, DuraTRUE, UltraTRUE and ValueTRUE 90° gearheads.

The RediMount™ motor mounting system allows mounting of our TRUE Planetary gearheads to practically any motor available on the market. The innovative design, featuring an adapter sleeve and input housing, ensures that gearhead mounting Is always quick, easy and error-free.

The UltraTRUE™ Series combines our highest-precision helical crowned gearing with TRUE Planetary orientation to create the smoothest and quietest gearheads on the market today. A wide range of metric frame sizes and gear ratios are available in straight and 90° versions.

Our ValueTRUE™ Series delivers high precision at a competitive price. With only 4 arc-minutes of backlash, and available in a wide range of frame sizes and ratios, they’re perfect as original equipment or as a drop-in replacement for most common helical gearheads.

The XTRUE™ Series offers a cost-effective solution with robust features. With five frame sizes, straight and 90° versions, and our RediMount™ mounting system, these precision gearheads provide easy installation and reliable performance.

Design Tools

Catalog

Discontinued Products

		Model
Rated data	DIM	20330	20630	20260	20360
Rated supply voltage	V	20 ... 90 VDC		0 ... 264 VAC
Control logic, supply voltage	V	10 ... 90 VDC		85 ... 265 VAC
Rated output current (RMS value, ± 3 %)	A	3	6	1.5	3
Peak output current (± 3 %)	A	9	18	4.5	9
Peak time	s	3	3	3	3
Current loop Bandwidth max.	kHz	5	5	3	3
Velocity loop Bandwidth max.	Hz	800
Update rate	MHz	1.25

	DC	DC & option	AC
Height	152.4 mm	152.4 mm	175 mm
Width	28.7 mm	48.3 mm	54.8 mm
Depth without connectors	101 mm	101 mm	132 mm
Depth with connectors	~130 mm	~130 mm	~180 mm

Title	Language(s)	Date	Size
S200 Base and SynqNet Installation Manual	English	06 Oct 2022	4.96 MB	Copy URL
S200 Base Unit Reference Manual Rev C.pdf	English	27 Apr 2015	2.17 MB	Copy URL
S200 CNS Product Manual	English	01 May 2008	1.04 MB	Copy URL
S200 CNS Produkthandbuch	German	01 May 2008	855.95 KB	Copy URL
S200 Position Node Installation Guide	English	06 Oct 2022	3.08 MB	Copy URL
S200 Position Node User's Guide Rev. D	English	13 Apr 2012	2.3 MB	Copy URL
S200 Start-Up Guide EN (REV A)	English	24 Feb 2017	1.03 MB	Copy URL
S200 VoltageDoubling en-US-RevA	English		60.06 KB	Copy URL
S200 VTS Product Manual	English	01 May 2008	1.75 MB	Copy URL
S200 VTS Produkthandbuch	German	01 May 2008	1.81 MB	Copy URL

Title	Language(s)	Date	Size
S200 3D Models	English	19 Jun 2007	11.11 MB	Copy URL
S200 SynqNet 3D Models	English	07 Jan 2013	3.29 MB	Copy URL

Title	Language(s)	Date	Size
S200 Base Drive Firmware Version 4.0G Release: 4.0	English	21 Dec 2021	352.48 KB	Copy URL
S200 BiSS Base Unit Firmware Update Rev100.0C.zip Release: 10/17/2011	English	28 Feb 2017	128.8 KB	Copy URL
S200 Electronic Data Sheet for DeviceNet Rev1.zip Release: 10/17/2011	English	28 Feb 2017	1.48 KB	Copy URL
S200 ENDAT 2.2 Base Firmware Update Rev102.0D.zip Release: 10/17/2011	English	28 Feb 2017	131.56 KB	Copy URL
S200 Position Node with CANOpen Firmware Upgrade Rev2.2.12.zip Release: 10/17/2011	English	28 Feb 2017	326.85 KB	Copy URL
S200 Position Node with DeviceNet Firmware Update Rev0.98.4 to 2.1.02.zip Release: 10/17/2011	English	28 Feb 2017	2.67 MB	Copy URL
S200 SFD Base Unit Firmware Upgrade Rev3.2M.zip Release: 10/17/2011	English	28 Feb 2017	125.42 KB	Copy URL

S200 Servo Drive

Features

Features

Benefits

Specifications

Technical Data

Dimensions

Get Started

Media & Downloads

Pages

Title	Language(s)	Date	Size
S200 OC Tools Position Node GUI v3.zip Release: 10/17/2011	English	17 Oct 2011	6.03 MB	Copy URL
S200 SynqNet Drive Map Parameter File Release: 4.0G	English	23 Feb 2022	4.16 KB	Copy URL
S200 Tools Base and SynqNet GUI v2.10.2 Release: 2.10.2	English	05 Aug 2022	5.66 MB	Copy URL

Title	Language(s)	Date	Size
Portmon Serial Port Sniffer Release: 3.0.2.0	English	01 Nov 2007	139.06 KB	Copy URL
S200-CNS Modbus GUI in Excel Release: –	English	29 Feb 2008	5.31 MB	Copy URL

Article
Trade Compliance	Kollmorgen is committed to sourcing components and materials from companies that share our values regarding respect for human rights, integrity and environmental responsibility. Kollmorgen is also...
S200 Respin Parameters to Replace Prior Logic Versions - Hardware Rev C.	The S200 updated boards use a larger FPGA with multiple feedback and filter options. Two new parameters have been introduced to select/set these options. These parameters allow the updated boards to...
Resolving Servo Feedback Choices	This PowerPoint presentation explains the differences between different types of servo motor feedback devices, including: The differences between absolute and incremental devices. The...
EMC For Sevo Drives and Motors	Troubleshooting EMI Noise and making EMC Compliance with Kollmorgen Drives.
Normen und Richtlinien	[toc] Allgemeines Struktur des Normenwesens am Beispiel der EN ISO 12100 Europäische Richtlinien New Legislative Framework Blue Guide: Leitfaden für die Umsetzung der...

Title	Language(s)	Date	Size
Blue Guide	English, German	29 Jun 2022		Copy URL
ISO 9001:2015 Certificate EU	German	07 Sep 2022	260.22 KB	Copy URL
ISO 9001:2015 Certificate EU	English	07 Sep 2022	240.88 KB	Copy URL
Kollmorgen WEEE Statement (RoHS, RoHS2 and EU Directive 2012/19)	English, German	05 Jun 2020		Copy URL
S200 EU Declaration of Conformity	English	17 Dec 2021	97.29 KB	Copy URL
S200 EU Konformitätserklärung ROHS	German	03 Feb 2022	33.26 KB	Copy URL
S200 EU RoHS Declaration	English	28 Mar 2022	415.36 KB	Copy URL
S200 REACH SVHC Certificate of Compliance	English	28 Mar 2022	482.21 KB	Copy URL
S200 UK Declaration of Conformity	English	20 Dec 2021	29.41 KB	Copy URL
