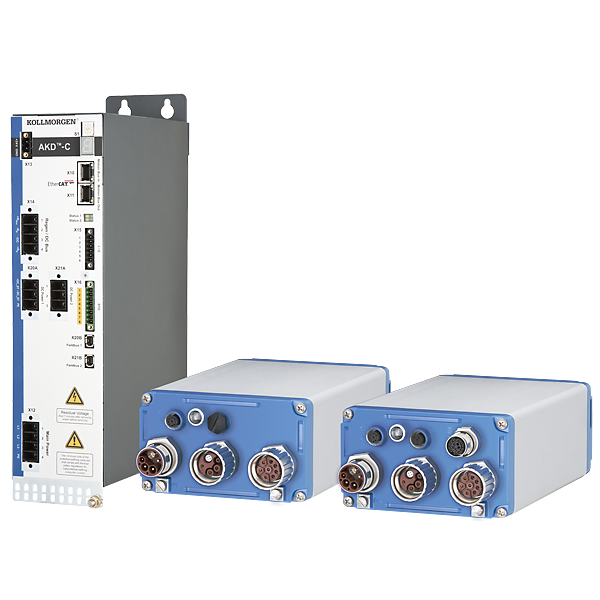

AKD-N Decentralized Servo Drive

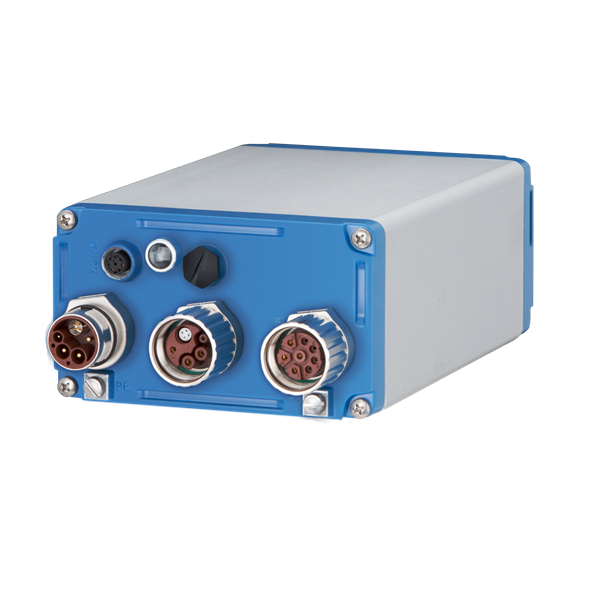

The AKD-N decentralized servo drive reduces cabinet space and opens the way to a smarter machine automation with 80% less cabling. Typical applications for the AKD-N are packaging machines and production machines in food and beverage industry.

IP67 drives can be mounted to machine, outside the control panel
Reduced cabling because DC, network, power supply, I/O level as well as safety (STO) run in one cable
More flexibility in machine design, can be “cold plate” mounted

Get a Quote

Product available worldwide

Lay Less Cable

Imagine your machine includes eight axes each with a distance of three meters. The switch cabinet is 5 meters away and on each axis there is also a switch. In this example that equates to a total of 372 meters of cable with typical servo drives, but with AKD-N it is only 42 meters. The decentralized servo technology of the AKD-N saves 330 meters here.

Explore Topography

AKD-N Decentralized Drive Cabling

1Hybrid cable AKD-C to AKD-N: CCNCN1
2Hybrid motor cables for single-cable operation:
- CCJNA2
3Hybrid cable AKD-N to AKD-N:
- CCNNN1
4Motor cables for dual-cable operation:
- CMØNA2 without brakes
- CM1NA2 with brakes
5Feedback cables for dual-cable operation:
- CFSNA2 SFD
- CFCNA2 Comcoder
- CFENA2 EndDat / BiSS
- CFHNA2 Hiperface

GET A QUOTE

Features

Reduce costs

Reduced cabling because DC and network, power supply, I/O level as well as safety (STO) run in one cable
Fast and simple assembly, even without special knowledge, through ready-made and tested cables
Lack of derating enables smaller motor and servo drive combinations compared to integrated system with the same output power

Compact machines

Smaller and therefore easily integrated switch cabinets
Servo drives in the immediate vicinity of the motor
Robust construction in Protection class IP67 makes protective enclosures superfluous

Faster startup

Plug connectors in IP67 for connection without tools
At only eleven millimeters, the thin hybrid cable can be laid in a space-saving manner – even in tight machine corners, thanks to a small bending radius
Simple connection of I/O systems or networks directly to the drive
Parameterization with Kollmorgen's WorkBench software

Higher machine effectiveness (OEE)

Design supports fast and effective cleaning
High operating safety through robust construction
Precision through digital feedback
Everything at a glance: Status display on servo drive

More flexibility in machine design

Compatible with all motors from Kollmorgen with single-cable, or dual-cable, connection
Simple combination of central and decentralized controllers within the comprehensive AKD family
Faster modification and upgrade options through linear topology as well as I/O and network interfaces at the axis

Get a Quote

Specifications

Kollmorgen Decentralized Servodrive AKD-N

AKD-N: Decentralized Servo Drive

	AKD-N00307	AKD-N00607	AKD-N01207
Continuous output current	3A	6A	12A
Peak output current	9A	18A	30A
Environmental area	IP67
Size	75x130x201mm³		75x130x252mm³
Fieldbus	EtherCAT
Feedback	SFD, Biss C, EnDat 2.1 and 2.2, Hall, Comcoder, Hiperface, Hiperface DSL
I/O	3 digital inputs, 1 digital output
Vibrations	3M5
Options	Tertiary fieldbus (-DF) Local STO SIL 2 / PLd (-DS)		Tertiary fieldbus with two cable feedback (-DF) Tertiary fieldbus with single cable feedback (-DG) Local STO SIL2/PLd with two cable feedback (-DS) Local STO SIL2/PLd with single cable feedback (-DT)

Kollmorgen PowerSupply AKD C 1

AKD-C: Central Power Supply for up to 16 AKD-N

	AKD-C01007
Rated supply voltage	400…480V, 3 phase
Continuous output power	10 kVA
Peak output power	20 kVA
Environmental area	IP 20
Size	329x80x198mm³
Fieldbus	EtherCAT
STO	SIL 2, PL d

Get a Quote

Safety

KSM Small Our modular safety solutions interface with AKD drives and Kollmorgen Automation Suite™ to provide seamless access to all important safe motion functions – including a complete range of PLe and SIL3 safe stop, velocity, position, direction and brake functions. Complete the motion safety chain, from sensor to drive, with our KSM-compact Safety Module or KSM-modular Safety PLC.

KSM Safety Solutions

Design Your Motion Solution

Product Selectors

Enter your performance and sizing requirements to find the right Kollmorgen products for your application.

Learn More >>

Motioneering

Know your application requirements but not the necessary torque and speed? Use Motioneering to size your mechanism project, and find motor and drive pairings that fit your needs.

Learn More >>

Success Stories

Safe Torque Off (STO) in practice: a Swiss manufacturer of test equipment is already using the TÜV-certified safety technology based on a slip ring and AKD-N servo drives from KOLLMORGEN arranged in a distributed setup.

Kollmorgen and Stemmann-Technik - Safety via Slip Ring

MEQuadrat - Rotary Indexing Table - Providing orientation for materials

OMET - Flexographic Printing Machine - Flexibility and Innovation for Top Printing Quality
