NA Part Number	EU Part Number	Resistor Type	AKD-x-00306	AKD-x-00606	AKD-x-01206	AKD-x-02406	AKD-x-00307	AKD-x-00607	AKD-x-01207	AKD-x-02407

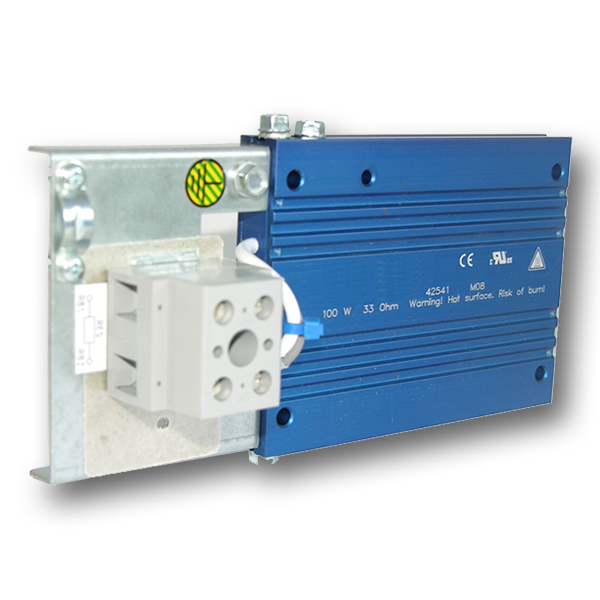

BAFP-100-33	DE-201437	External Resistor, 100 W, 33 ohms	x	x	x
BAFP-200-33	DE-201438	External Resistor, 200 W, 33 ohms	x	x	x
BAR-250-33	DE-106254	External Resistor, 250 W, 33 ohms	x	x	x		x	x	x
BAR-500-33	DE-106255	External Resistor, 500 W, 33 ohms	x	x	x		x	x	x
BAR-1500-33	DE-106258	External Resistor, 1500 W, 33 ohms	x	x	x		x	x	x
BAS-3000-33	DE-201407	External Resistor, 3000 W, 33 ohms	x	x	x		x	x	x
BAR-600-23	DE-200613	External Resistor, 600 W, 23 ohms								x
BAR-1000-23	DE-200614	External Resistor, 1000 W, 23 ohms								x
BAS-2000-23	DE-200615	External Resistor, 2000 W, 23 ohms								x
BAS-3000-23	DE-200616	External Resistor, 3000 W, 23 ohms								x
BAS-4000-23	DE-200617	External Resistor, 4000 W, 23 ohms								x
BAR-500-15	DE-201439	External Resistor, 500 W, 15 ohms				x
BAR-1000-15	DE-201440	External Resistor, 1000 W, 15 ohms				x
BAS-2000-15	DE-103871	External Resistor, 2000 W, 15 ohms				x
BAS-3000-15	DE-103872	External Resistor, 3000 W, 15 ohms				x
BAS-6000-15	DE-103873	External Resistor, 6000 W, 15 ohms				x

Title	Language(s)	Date	Size
BAFP-100 3D Drawing	English	13 Sep 2011	147.34 KB	Copy URL
BAFP-200 3D Drawing	English	13 Sep 2011	147.87 KB	Copy URL
BAR-1000 3D Drawing	English	13 Sep 2011	5.12 MB	Copy URL
BAR-1500 3D Drawing	English	13 Sep 2011	5.17 MB	Copy URL
BAR-250 3D Drawing	English	13 Sep 2011	1.9 MB	Copy URL
BAR-500 3D Drawing	English	13 Sep 2011	3.38 MB	Copy URL
BAS-2000 3D Drawing	English	13 Sep 2011	2.97 MB	Copy URL
BAS-3000 3D Drawing	English	13 Sep 2011	4.88 MB	Copy URL
BAS-6000 3D Drawing	English	13 Sep 2011	7.1 MB	Copy URL

Article
Normen und Richtlinien	[toc] Allgemeines Struktur des Normenwesens am Beispiel der EN ISO 12100 Europäische Richtlinien New Legislative Framework Blue Guide: Leitfaden für die Umsetzung der...
BAR, BAS, BAFP Brake Resistor Certification	Safety CCC CE UL UR cUL cUR EAC RoHS BAR, BAS, BAFP Brake Resistor EN / DE E212934...
Standards and Directives	[toc] General Structures of standards with EN ISO 12100 as an example ISO Standards Safety of Machinery — General Principles for Design ISO 12100:2010 UL Standards...
Conflict Minerals	Kollmorgen is committed to sourcing components and materials from companies that share our values regarding respect for human rights, integrity and environmental responsibility. Kollmorgen is also...

Kollmorgen Developer Network

Automation Platform

Kollmorgen Automation Suite™ Overview

Software

Controller Hardware

AKT2G I/O Devices for KAS

Human Machine Interfaces

KSM Safety Solutions

KAS Network Cables

SynqNet – PC based C/C++

SynqNet Overview

SynqNet Software

SynqNet Motion Controllers

SynqNet Slice I/O

Servo Systems

2G Motion System

Accessories

Accessories for Digital Motion Systems in Europe

KCM Capacitor Module

Servo Cables

Regen Resistors

Servo Drives

2G Motion System

AKD2G Servo Drive

AKD Family

S700

S300

S200

Serviced Drives

Stepper Drives

P5000 Stepper Drive

P6000 Stepper Drive

P7000 Series

6410 Stepper Drive

Serviced Stepper Drives

Accessories

Accessories for Digital Motion Systems in Europe

KCM Capacitor Module

Servo Cables

Regen Resistors

Servo Motors

2G Motion System

AKM2G Servo Motor

AKM Family

Stainless Steel AKMH Series

AKM2G & AKM Low Voltage DC Servo Motors

Kollmorgen Goldline® Series Servo Motors

EKM Series Servo Motors

Serviced Motors

Direct Drive Linear and Rotary Motors

Cartridge DDR®

Housed D & DH

KBM Series Frameless

TBM Series Frameless

RBE Series Frameless

Direct Drive Linear Motors

Stepper Motors

PMX Series

POWERMAX M and P series

POWERPAC K and N Series

E&H Hybrid Series

High Torque

CT Series

MX Series Hazardous Duty

AC Synchronous Motors

ST/SN

KS & SS Series

Hazardous Duty Synchronous Motors

Brush DC Motors

DC Torque Motors

Permanent Magnet DC (PMDC)

Serviced Motors

Washdown Food Grade

Stainless Steel AKMH Series

STF Washdown Motor - Food Grade

AKM Washdown and Food Grade

Explosion Proof

EP Series Explosion Proof

Hazardous Duty Synchronous Motors

Goldline EB Series
