Using the ICH Performance Curves | 29 Mar 2017 | |

Using the ICH Performance Curves

How do I unlock the ICH motor performance curves so that I can develop the curves?  It seems password protected even though it's posted on KDN and seems to be something we could allow someone to edit.



What I want is a PC based on AKD6A HV, with a ICH33-050-A1 & ICH22-075-A1

Comments & Answers

jcoleman02 said ...

jcoleman02 | Thu, 03/30/2017 - 14:42

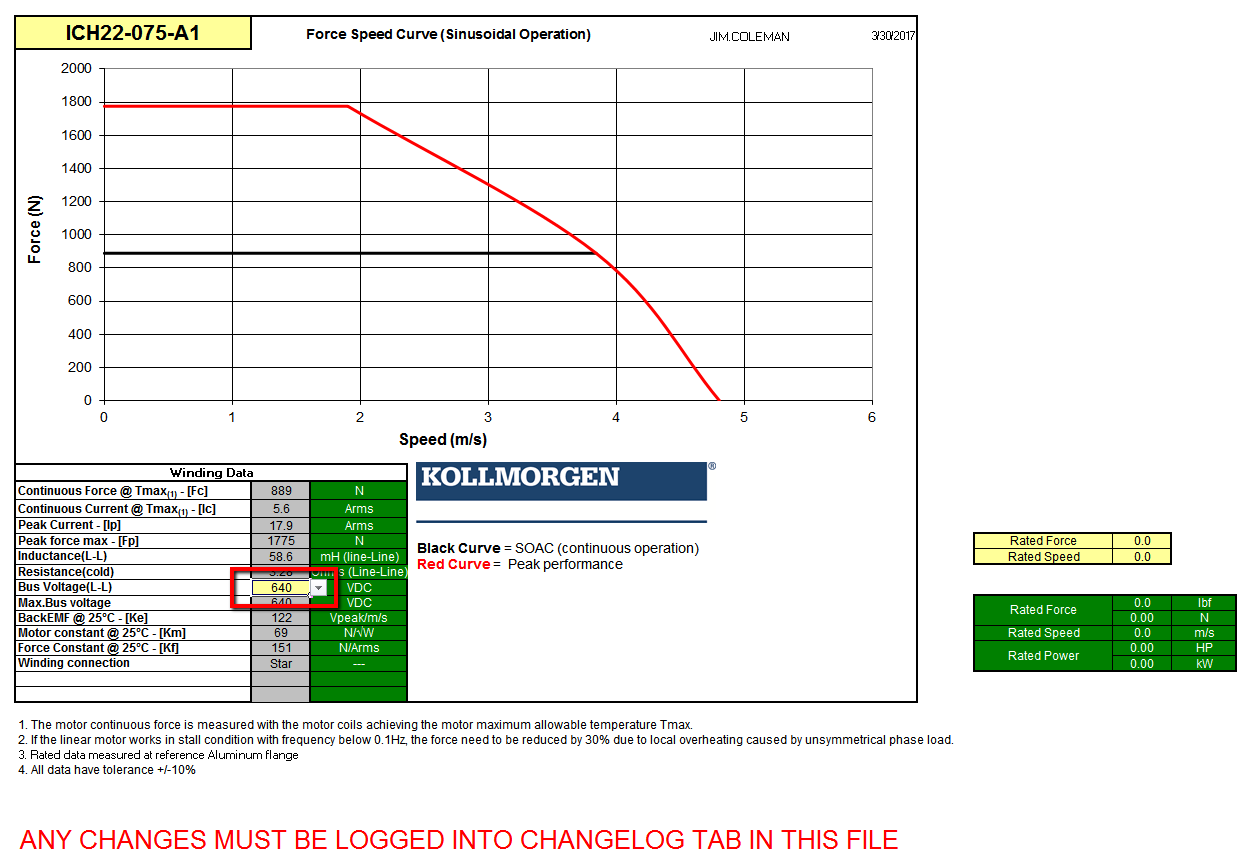

I just downloaded the "ICH motors performance curves 2016-10-11.zip" file from KDN.  I copy/pasted the excel file to a folder, opened it, selected the ICH22-075-A1 and selected 640 for the bus voltage.  There is no password required.  See the attached screenshot.

sitz_KDN | Wed, 03/29/2017 - 19:25

I meant to add 480VAC.
