KAS IDE

The KAS IDE (Kollmorgen Automation Suite Integrated Development Environment) provides machine builders with all the necessary tools for designing, programming, configuring, debugging and maintaining machine applications. It is a graphical programming solution for programming motion using the PLCopen or Pipe Network motion engines. KAS IDE supports IEC 61131-3. KAS IDE also includes an embedded AKD Workbench.

Latest Version 3.02
Release Date July 2019
Current Drive Firmware Version AKD: 01.18.00.004 | AKD2G: 02.02.00.000
Current Runtime Firmware Version 3.02.0.x
KAS Online Help v3.02 Release   |   v3.01 Release  |   v3.00 Release
v2.12 Release   |   v2.11 Release

Articles

3rd Party Devices

Analog I/O

BASIC Programming

Camming

Connections and Wiring

Digital I/O

Electronic Gearing

Emergency Stop

Encoders & Feedback

EtherCAT

Faults and Warnings

FFLD

Fieldbus

Firmware

Getting Started

IEC61131

Limit Switch

Modbus

Motion Engine

Motor Setup

Operation Mode

Pipe Network

PLCopen

ProfiNet

Programming

Revision Information

Rotary Switches

Sample Programs

Structured Text

System Design

Tools

Troubleshooting

Upgrading

Web Server

KAS IDE Features

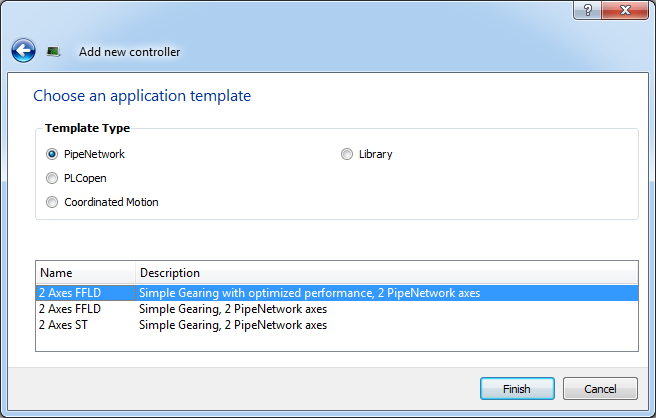

  • Create new application projects using predefined or custom application templates

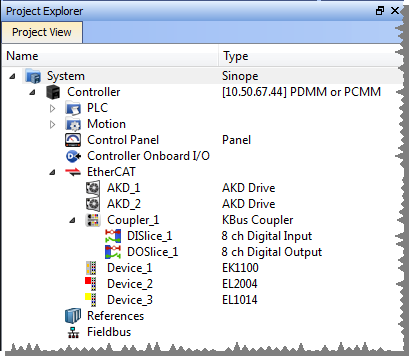

  • Define the machine hardware architecture (motion bus, fieldbus, controllers, drives and motors) as well as the machine program (HMI panels, IEC61131-3 programs and function blocks, motion blocks, profiles and axes) from a centralized Project Explorer which is based on a tree-structure.
  • Develop PLC programs, functions and function blocks using:

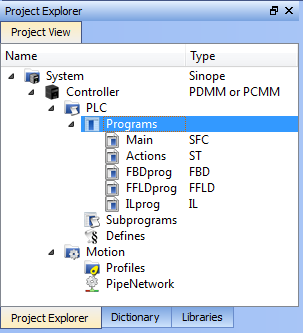

    • the five IEC 61131-3 programming languages (ST, IL, FFLD, FBD and SFC)

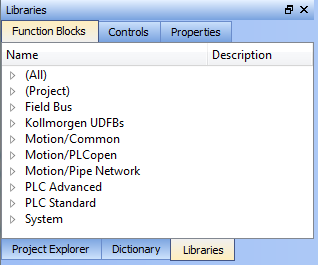

    • the IEC 61131-3 standard library and KAS Function Block libraries dedicated to motion, communication and monitoring

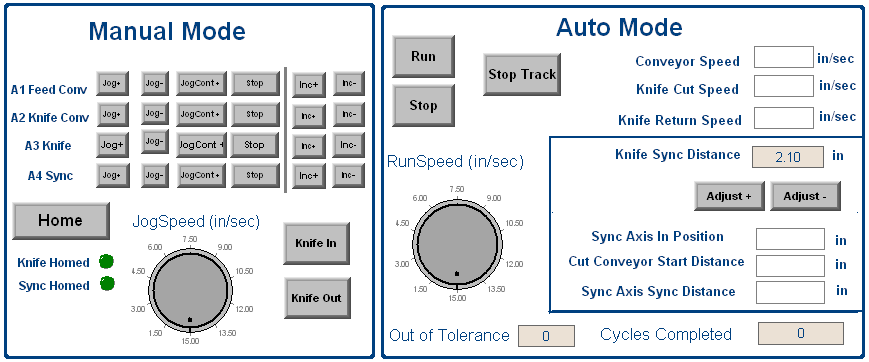

  • Easily set up HMI panels by means of graphical objects that are part of the HMI control library; and map graphical objects to IEC 61131-3 variables
  • Graphically design advanced multi-axis relations using Kollmorgen's graphical motion programming environment - also called the Pipe Network - with its tool generating code automatically
  • Configure hardware devices via an integrated set of configuration tools (for instance AKD drives, EtherCAT I/O terminals, Profibus, etc.)
  • Access controller devices to download, start and stop the application, watch log messages and send shell commands to the target device
  • Debug the application by inserting break points and stepping into the code or by monitoring internal values (IEC 61131-3 variables, motion positions, drive's internal values) directly in the editors or with KAS advanced softscope tool
  • Access the full online documentation.
